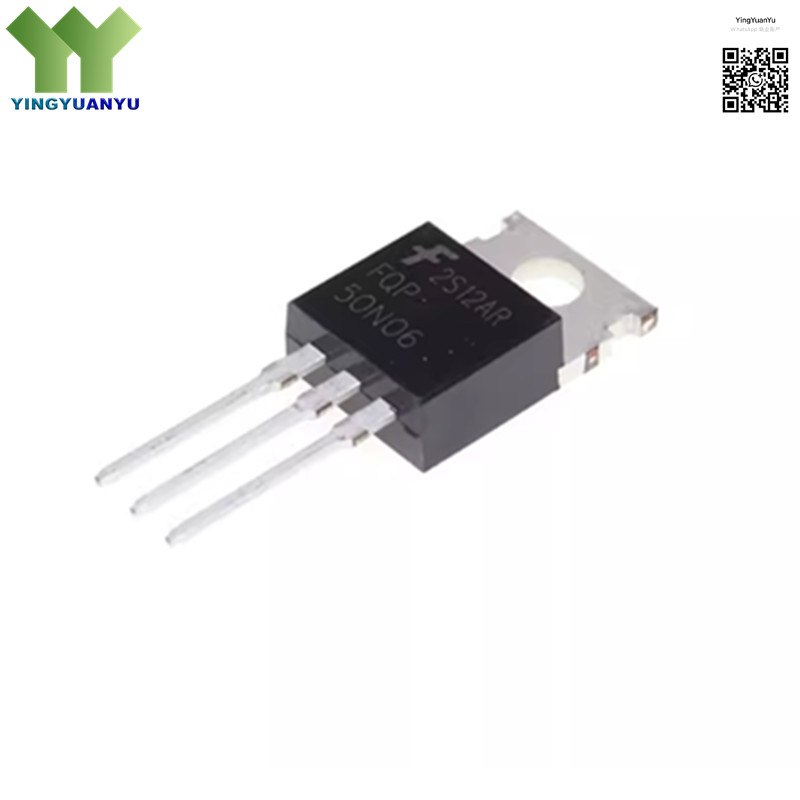

FQP50N06
Basic Information
| Part Number | FQP50N06 |
| Manufacturer | Fairchild Semiconductor (ON Semiconductor) |
| Category | Discrete Semiconductor Products > Transistors – FETs, MOSFETs |
| Description | MOSFET N-CH 60V 50A TO-220 |
Product Overview
The FQP50N06 is a high-performance N-channel enhancement mode power MOSFET designed for high-current switching applications. It features low on-resistance, fast switching speed, and high power dissipation capability, making it suitable for power conversion, motor control, and high-current load driving circuits. The device offers excellent thermal stability and ruggedness, ensuring reliable operation in industrial, automotive, and consumer electronic power systems. Housed in a standard TO-220 through-hole package, it provides easy mounting and efficient heat dissipation for high-power applications.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | Standard Manufacturer Warranty |
| Brand | Fairchild Semiconductor |
| FET Type | N-Channel Enhancement Mode |
| Voltage – Vds | 60V |
| Current – Continuous Drain (Id) | 50A @ 25°C |
| On-Resistance (Rds On) | 0.018Ω @ 10V |
| Gate Threshold Voltage | 2V ~ 4V |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Package / Case | TO-220 |
| Mounting Type | Through Hole |
Typical Applications
- High-Current Power Switching Circuits
- DC-DC Power Converters
- Motor Drive and Control Systems
- Battery Management Systems
- Power Tools and Industrial Equipment
- Automotive Electronic Systems
- Switching Power Supplies
- LED Lighting Drivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
