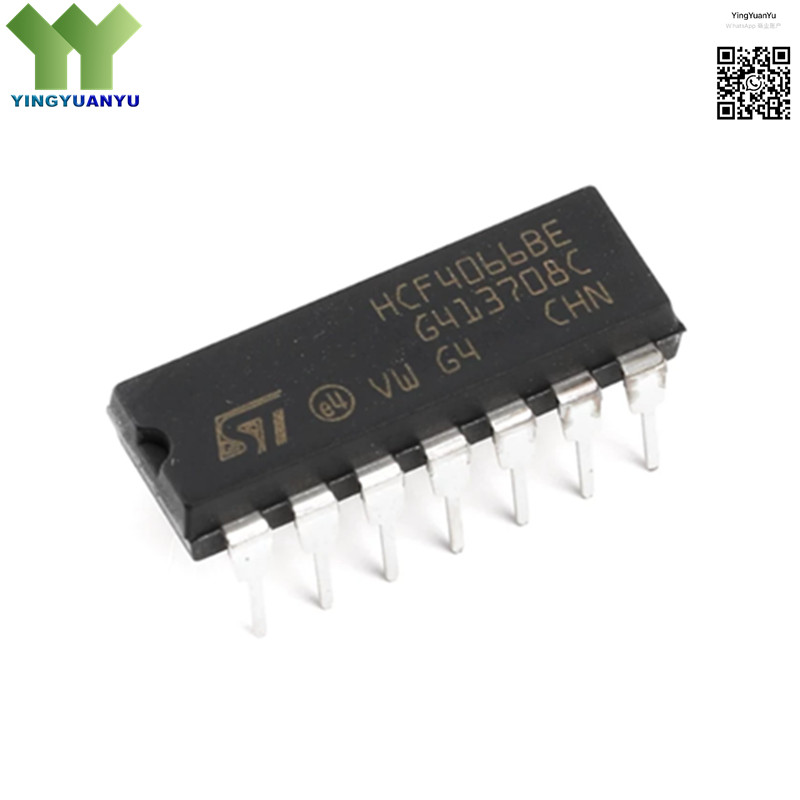

HCF4066BEY
HCF4066BEY
| Part Number | HCF4066BEY |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | Analog Switches; Quad Bilateral Switch |
| Description | Quad Bilateral Analog Switch, 3V-15V, Low On-Resistance, DIP-14 Package |
Product Overview
The HCF4066BEY is a high-reliability quad bilateral analog switch designed for general-purpose analog and digital signal switching applications. It features four independent, bidirectional switches with low on-resistance, wide supply voltage range (3V to 15V), and low power consumption. The device provides excellent linearity, low leakage current, and stable performance for industrial, consumer, and automotive electronic systems. Housed in a standard DIP-14 through-hole package, it offers easy prototyping, PCB mounting, and reliable operation in various low-frequency signal control circuits.
| Key Specifications | |
|---|---|
| Brand | STMicroelectronics |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DIP-14 |
| Mounting Type | Through Hole |
| Channels | 4 Independent Bidirectional Channels |
| Supply Voltage | 3V ~ 15V |
| On-Resistance | Low On-Resistance |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Analog Signal Routing & Switching
- Data Acquisition Systems
- Audio Signal Switching
- Multiplexer & Demultiplexer Circuits
- Industrial Control Systems
- Consumer Electronics
- Automotive Electronics
- Low-Frequency Signal Control Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
