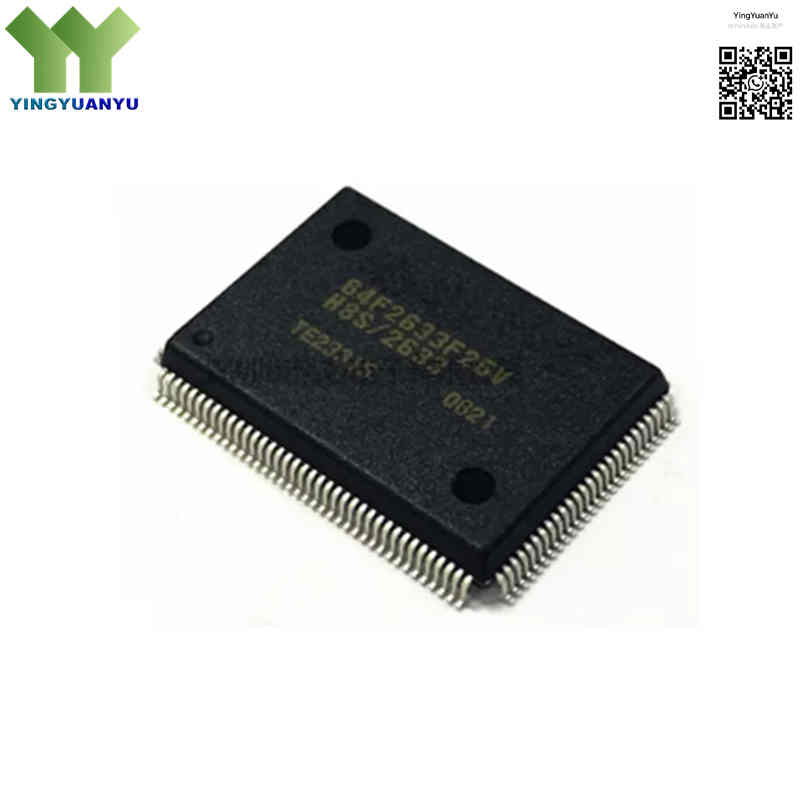

HD64F2633F25V
HD64F2633F25V
| Part Number | HD64F2633F25V |
|---|---|
| Manufacturer | Renesas Electronics (Formerly Hitachi) |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (MCU) |
| Description | High-performance 16-bit H8S/2600 series CISC microcontroller featuring 256KB Flash memory, 16KB SRAM, internal DMA controller, 10-bit ADC, and versatile serial interfaces in a standard 128-pin QFP package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HD64F2633F25V is a high-reliability 16-bit single-chip MCU from Renesas H8S/2600 CISC series. Built on low-power CMOS with max 25MHz clock, it carries 256KB on-board flash and 16KB high-speed SRAM. Integrated peripherals include 4-channel DTC, DMAC and 10-bit multi-channel ADC. Packaged in 128-pin BFQFP, it fits office equipment, legacy medical devices, industrial control and automotive diagnostic systems with strong anti-interference performance.
Core Advantages
Efficient 16-Bit H8S/2600 Core Execution
Adopts register-based CISC architecture, supporting compact C code, powerful bit operation and multi-precision arithmetic, better than entry-level MCUs.
Integrated On-Chip DMA & DTC Engines
Independent DMA/DTC hardware handles high-speed data transmission between IO and RAM without CPU intervention, boosting overall processing throughput.
Versatile Integrated System Timers
Equipped with multi-channel 16-bit TPU and independent watchdog timers, supporting PWM waveform generation and high-precision capture.
Accessible, High Pin-Count Package Profile
128-pin QFP with exposed solder pins for easy optical inspection and oscilloscope testing, greatly simplifying PCB layout design vs tiny BGA packages.
Key Specifications
| Brand | Renesas Electronics H8S® / 2600 High-Reliability MCU Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Lead-Frame Composition (“V” designation) |
| EDA/CAD Model | 3D STEP Models, Schematic symbols, and pinout footprint layout configurations available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 128-BFQFP / QFP (14mm x 20mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | 64F2633F25V Marking |
| Core Architecture | 16-Bit H8S/2600 CISC Processing Core |
| Program Flash Memory | 256 Kbytes On-Chip Re-programmable Flash Memory |
| Data SRAM Memory | 16 Kbytes Embedded High-Speed Static RAM |
| Analog-to-Digital Converter (ADC) | Integrated 10-bit resolution multi-channel SAR Analog-to-Digital Converter |
| Digital-to-Analog Converter (DAC) | No on-chip DAC peripheral |
| Serial Communication Ports | Multi-channel Serial Communication Interface (SCI) supporting asynchronous, synchronous, and smart card protocols |
| Max Operating Frequency | 25 MHz Nominal CPU Clock Cycle execution limit |
| Core Supply Voltage Vcc | 3.0V to 3.6V Standard Low-Voltage Supply Rail Profile |
| Operating Temperature Range | -20°C to +85°C Standard Operating Thermal Range (Ta) |
| Total Pins | 128 Pins |
| Instruction Set | CISC 16-bit Instruction Set |
| Timer Modules | Multi-channel 16-bit TPU Timer + Independent Watchdog Timer |
| DMA Controller | On-chip DMAC + DTC Data Transfer Controller |
| I/O Pin Count | Up to 96 General Purpose I/O Pins |
| Flash Programming Method | In-System Programming (ISP) via SCI serial port |
| Input Tolerance | 5V-tolerant TTL Input Pins |
| Flash Data Retention | Minimum 20 years data retention |
Typical Applications
- Enterprise Office Automation (Laser Printers, Industrial Copying Arrays, and Multi-Function Fax Terminals)
- Industrial Control Interfaces, Programmable Automation Nodes, and Smart Machinery Terminals
- Legacy Medical Diagnostics Equipment, Temperature Monitor Boards, and Patient Bed Control Units
- Automotive Telemetry Tools, Engine Test Benches, and Vehicle On-Board Diagnostics (OBD) Adapters
- Commercial Security Access Control Hubs, Fire Alarm Control Master Panels, and HVAC Automation
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
For datasheets, samples or bulk quotations, submit quick inquiry, we reply within 24 hours.
Q1: Are HD64F2633F25V stocks original new parts?
A1: All in-stock MCUs are 100% factory-new original from authorized channels. Stored in anti-static trays & vacuum moisture barrier bags to meet ESD & JEDEC standards.
Q2: What function does DTC perform on this H8S MCU?
A2: DTC handles automatic data transmission between peripherals and RAM via interrupt triggers, offloading the main CPU to reduce power consumption and boost real-time response.
Q3: How to program the 256KB on-chip flash?
A3: Supports ISP programming through SCI Channel 1. Firmware can be updated while the chip is mounted on the circuit board with external level shifters.
Q4: Layout rules for crystal oscillator circuit?
A4: Crystal and matching capacitors must be placed close to EXTAL/XTAL pins with ultra-short traces. Isolation ground ring is recommended to suppress digital switching noise.
Q5: Is this MCU industrial temperature grade?
A5: Yes, operating temperature range covers -20℃ ~ +85℃, suitable for industrial, medical and automotive auxiliary equipment.
Q6: What is the minimum order quantity?
A6: MOQ is 1 piece, mixed batch orders for multiple models are also supported.
Q7: How long is the product warranty period?
A7: We provide 1-year quality warranty for all delivered components.
Q8: Can you provide CAD/PCB footprint files?
A8: Yes, CAD library files including schematic symbols and PCB footprints are available upon request.
Q9: What’s the shipment lead time?
A9: In-stock items ship within 1-2 working days, global delivery takes 3-7 working days.
