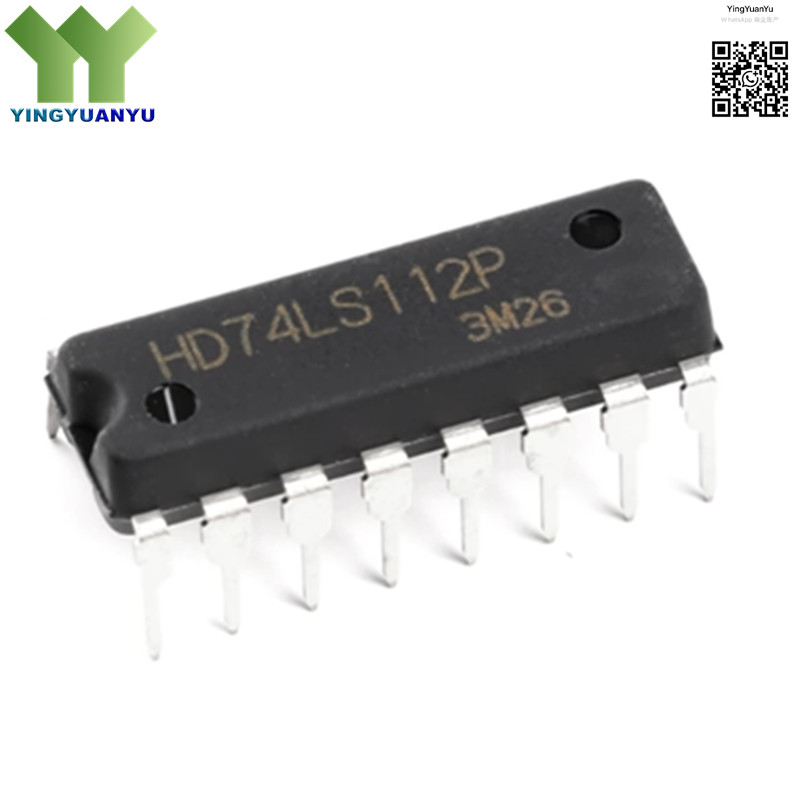

HD74LS112P
HD74LS112P
| Part Number | HD74LS112P |
|---|---|
| Manufacturer | Hitachi / Renesas Electronics |
| Category | Flip-Flops; Dual JK Flip-Flop with Preset and Clear |
| Description | Dual Negative Edge-Triggered JK Flip-Flop, LS-TTL Logic, Asynchronous Preset/Clear, 5V, DIP-16 Package |
Product Overview
The HD74LS112P is a dual negative edge-triggered JK flip-flop utilizing low-power Schottky (LS-TTL) technology. It features independent J, K, clock, preset (SET), and clear (RESET) inputs for each flip-flop, with asynchronous preset and clear functions for immediate state control. Operating at a standard 5V supply voltage, this device offers high-speed operation, low power consumption, and excellent noise immunity for digital sequential logic applications. Housed in a rugged DIP-16 through-hole package, it is ideal for legacy systems, educational electronics, and industrial digital control circuits.
| Key Specifications | |
|---|---|
| RoHS Status | Non-RoHS (Legacy Through-Hole Device) |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Hitachi / Renesas Electronics |
| Logic Type | LS-TTL (Low-Power Schottky) |
| Function | Dual JK Flip-Flop, Negative Edge Trigger |
| Supply Voltage | 4.5V ~ 5.5V (5V Nominal) |
| Package Type | DIP-16 (Through-Hole) |
| Operating Temperature | 0°C to +70°C |
Typical Applications
- Sequential Digital Logic Circuits
- Counters, Registers & Frequency Dividers
- Legacy Digital System Repair & Replacement
- Educational Electronics & Prototyping
- Industrial Control & Automation
- Data Storage & State Machine Designs
- Clock Synchronization Circuits
- Test & Measurement Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
