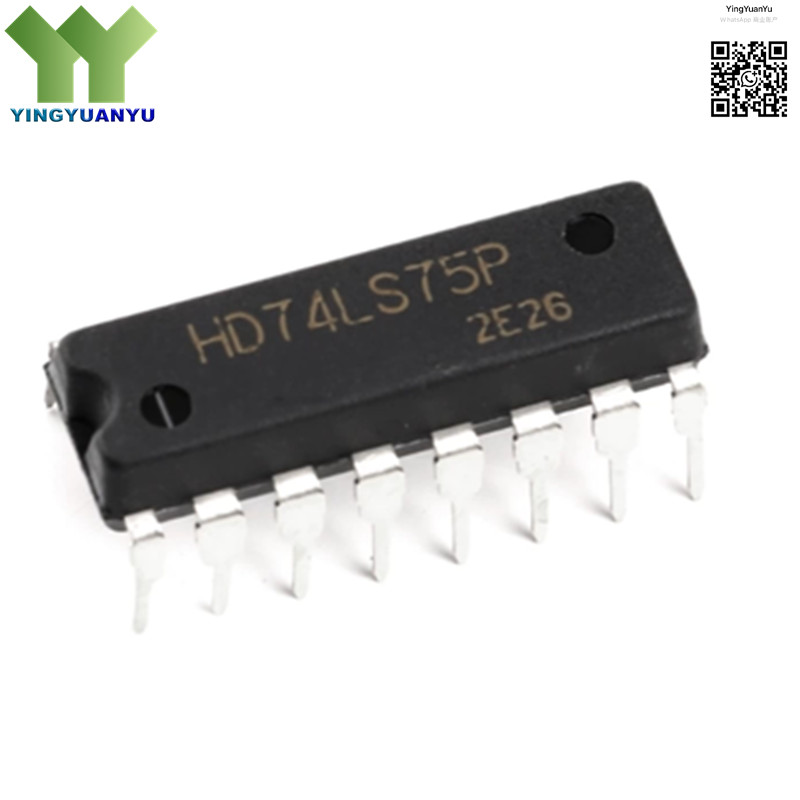

HD74LS75P
HD74LS75P
| Part Number | HD74LS75P |
|---|---|
| Manufacturer | Hitachi / Renesas Electronics |
| Category | Digital Latches; 4-Bit Transparent Latch |
| Description | 4-Bit Transparent Latch with 3-State Outputs, LS-TTL Logic, 5V, DIP-16 Through-Hole Package |
Product Overview
The HD74LS75P is a 4-bit transparent latch integrated circuit utilizing low-power Schottky (LS-TTL) technology. It features dual 2-bit latches with common enable controls and 3-state outputs for bus-oriented applications. The device operates at a standard 5V supply voltage, offering fast switching speed, low power consumption, and high noise immunity for digital data storage and transfer. Housed in a DIP-16 through-hole package, it is widely used in legacy digital systems, data processing circuits, and educational electronics projects requiring reliable latch functionality.
| Key Specifications | |
|---|---|
| RoHS Status | Non-RoHS (Legacy Through-Hole Device) |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Hitachi / Renesas Electronics |
| Logic Type | LS-TTL (Low-Power Schottky) |
| Function | 4-Bit Transparent Latch, 3-State Outputs |
| Supply Voltage | 4.5V ~ 5.5V (5V Nominal) |
| Package Type | DIP-16 (Through-Hole) |
| Operating Temperature | 0°C to +70°C |
Typical Applications
- Digital Data Storage & Latching Circuits
- Microprocessor Bus Interface Systems
- Legacy Digital System Repair & Replacement
- Educational Electronics & Prototyping
- Industrial Control Digital Logic
- Data Processing & Register Circuits
- Test & Measurement Equipment
- Consumer Electronics Digital Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
