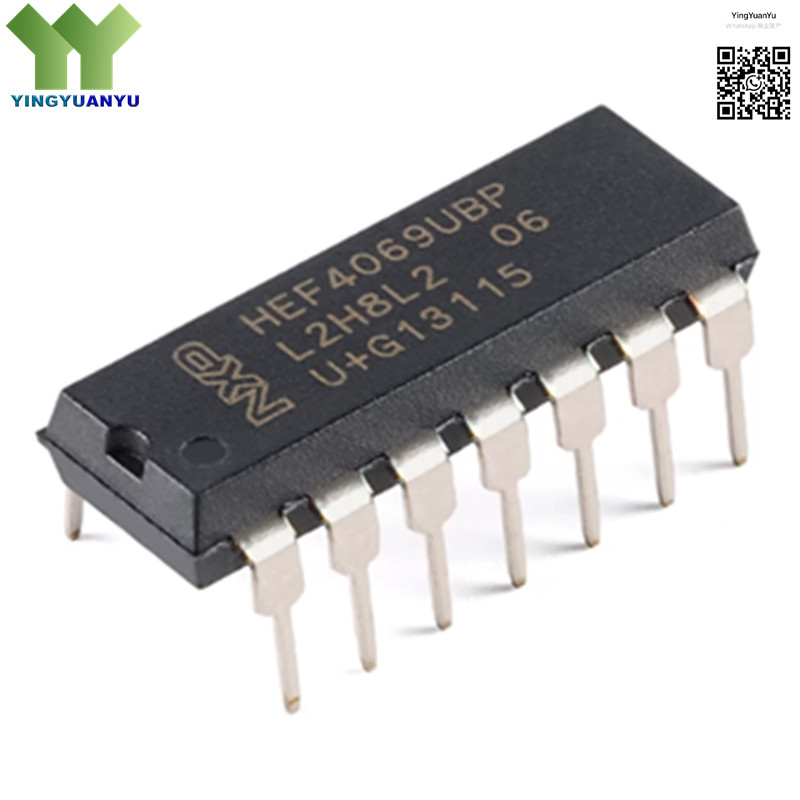

HEF4069UBP
HEF4069UBP
| Part Number | HEF4069UBP |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Logic ICs; Hex Inverter Gate |
| Description | Hex Unbuffered Inverter, 3V-15V, CMOS Logic, DIP-14 Package |
Product Overview
The HEF4069UBP is a hex unbuffered CMOS inverter gate featuring six independent high-performance inverter channels. It operates over a wide voltage range from 3V to 15V, delivering low power consumption, high noise immunity, and stable switching characteristics for digital logic, oscillator, and signal conditioning applications. The unbuffered output design supports linear amplification and oscillator circuits, making it highly versatile for industrial, consumer, and educational electronics. Housed in a standard DIP-14 through-hole package, it ensures easy assembly, prototyping, and reliable long-term operation.
| Key Specifications | |
|---|---|
| Brand | NXP Semiconductors |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DIP-14 |
| Mounting Type | Through Hole |
| Channels | 6 Independent Inverter Channels |
| Supply Voltage | 3V ~ 15V |
| Logic Type | CMOS Unbuffered Inverter |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Digital Logic Signal Inversion
- Oscillator and Clock Generator Circuits
- Low-Frequency Signal Amplification
- Logic Level Conversion
- Industrial Control Systems
- Consumer Electronics
- Educational Electronic Kits
- Pulse Shaping and Waveform Generation
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
