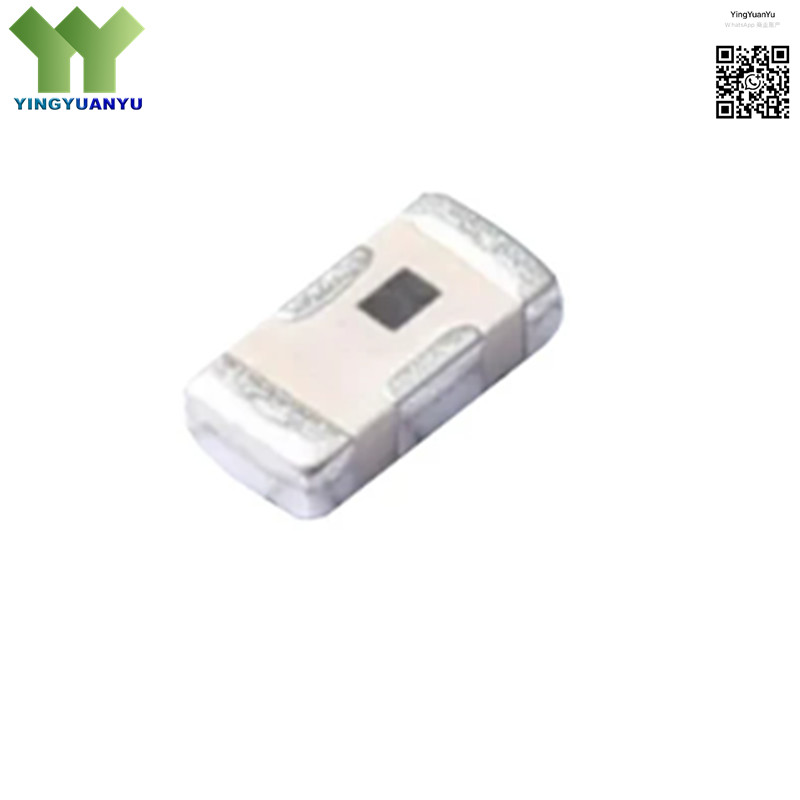

HFCN-440+
HFCN-440+
| Part Number | HFCN-440+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Filters; High Pass Filters |
| Description | 50Ω High Pass Filter, 1700 MHz Cutoff, DC – 4000 MHz, 50Ω Impedance, SMD Package |
Product Overview
The HFCN-440+ is a high-performance, surface-mount high-pass filter designed for wideband RF, microwave, and wireless communication systems. It features a sharp cutoff frequency at 1700 MHz, excellent rejection of low-frequency signals, and flat passband response from 1700 MHz up to 4000 MHz. The device is fully matched to 50Ω impedance for seamless integration, offers low insertion loss, high return loss, and robust performance across temperature and voltage variations. Housed in a compact SMD package, it delivers reliable filtering for cellular, LTE, Wi-Fi, GPS, and industrial RF applications requiring precise high-frequency signal selection and interference rejection.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Filter Type | High Pass Filter |
| Cutoff Frequency | 1700 MHz |
| Frequency Range | 1700 – 4000 MHz |
| Impedance | 50Ω |
| Package Type | SMD Surface Mount |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Cellular / LTE / 4G / 5G Wireless Systems
- Wi-Fi 2.4GHz & 5GHz RF Modules
- GPS & Satellite Communication Equipment
- RF Signal Conditioning & Interference Rejection
- Broadband Microwave Circuits
- Test & Measurement Instruments
- Industrial RF Sensor Systems
- High-Frequency Communication Transceivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
