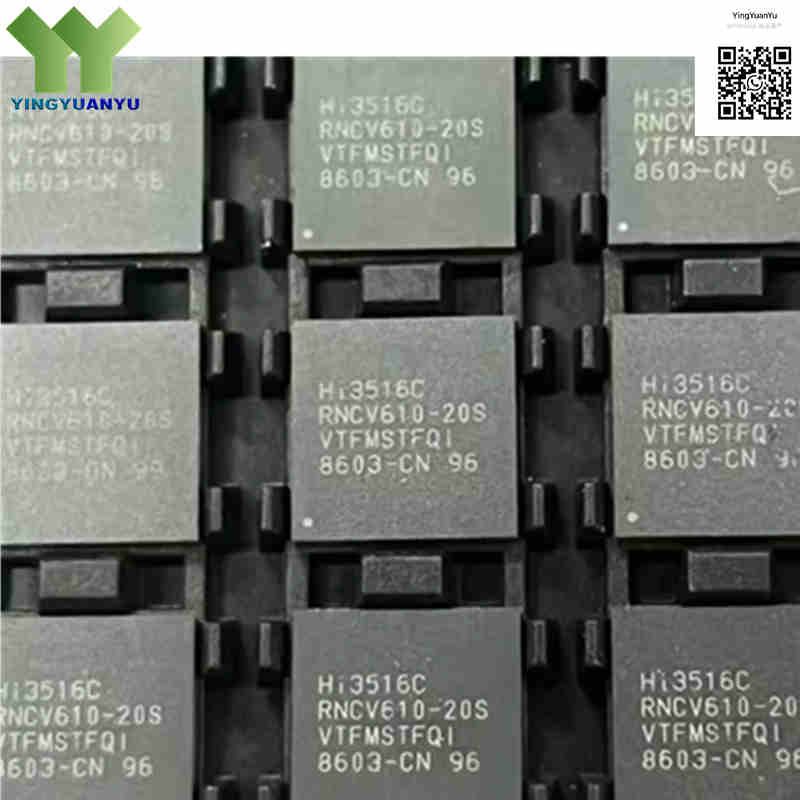

HI3516CRNCV610-20S
HI3516CRNCV610‑20S
| Part Number | HI3516CRNCV610-20S |
|---|---|
| Manufacturer | HiSilicon |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers / Application Processors – IP Camera SoC |
| Description | 4K Smart IP Camera System‑on‑Chip (SoC), H.265/H.264/SVAC3.0 Video Encoder, 1TOPS NPU, SiP 128MB DDR3L, QFN Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HI3516CRNCV610‑20S is a low‑power high‑performance AI vision SoC for IP surveillance cameras. It integrates dual‑core Cortex‑A7@950MHz, 1TOPS INT8 NPU, professional ISP and SiP 128MB DDR3L. Supports 4K@20fps / 6MP@30fps multi‑stream encoding with H.265/H.264/SVAC3.0 and Intelligent Encoding 2.0. Ideal for security cameras, battery‑powered doorbells and industrial vision modules.
Core Advantages
1 TOPS Edge NPU Neural Engine
1 TOPS INT8 computing power with Transformer acceleration, supports real‑time edge AI algorithms such as human and vehicle detection.
4K Multi‑Stream Hardware Encoder
Hardware encoder supports H.265/H.264/SVAC3.0 up to 4K@20fps /6MP@30fps. Intelligent Encoding 2.0 effectively saves bandwidth and storage space.
Professional ISP Image Processor
32× WDR, AI‑3DNR, 0.005Lux low‑light performance and LDC distortion correction, adapts to complex lighting environments.
SiP Memory & Low‑Power Fast‑Boot Design
Built‑in SiP 128MB DDR3L, fast cold‑boot, optimized power consumption for battery‑powered vision devices.
Key Specifications
| Brand | HiSilicon |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | QFN-9 |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | Hi3516CRNCV610‑20S |
| Processor Core | Dual‑core ARM Cortex‑A7 @ 950MHz |
| NPU AI Acceleration | 1 TOPS (INT8), supports Transformer acceleration |
| Video Encoding Capability | H.265 / H.264 / SVAC3.0, max 4K@20fps / 6MP@30fps, multi‑stream encoding, Intelligent Encoding 2.0 |
| ISP Image Processing | 32× WDR, AI‑3DNR, 0.005Lux low‑light performance, LDC distortion correction |
| Sensor Interfaces | Dual‑channel MIPI CSI‑2 / Sub‑LVDS / HiSPi / Parallel DVP, support up to 8MP/4K image sensor |
| Memory Support | SiP 128MB DDR3L, external SPI Nor/Nand Flash, eMMC 4.5 (max 512MB) |
| Peripheral Interfaces | USB 2.0, SDIO 3.0, Ethernet PHY (10/100M), UART, RS485, SPI, I2C, GPIO, PWM |
| Power Supply Voltage | Core: 0.9V / I/O: 1.8V‑3.3V / DDR: 1.2V‑1.5V |
| Operating Temperature Range | Standard:‑20°C ~ +70°C; Industrial custom version:‑40°C ~ +85°C |
Typical Applications
- Wireless Wi‑Fi IP Security Cameras and Smart Home Surveillance
- Battery‑Powered Video Doorbells and Low‑Power Peephole Cameras
- Automotive Dashcams, Driving Recorders, and Smart Rearview Systems
- AI Facial Recognition and Smart Access Control Terminals
- Industrial IoT Vision Modules and Portable Inspection Equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What maximum video resolution does HI3516CRNCV610‑20S support?
A: Supports H.265/H.264/SVAC3.0 encoding up to 4K@20fps or 6MP@30fps, multi‑stream output is available.
Q2: What is the NPU computing performance?
A: 1 TOPS INT8 NPU with Transformer acceleration, supports human detection, vehicle classification and perimeter protection.
Q3: What does suffix ‑20S mean?
A: ‑20S stands for SiP memory variant with SVAC3.0 encoding. Suffixes‑00B/‑10B/‑20S differ in memory and feature options.
Q4: What does RNC in part number mean?
A: RNC indicates solution‑vendor customized version. Electrical performance is consistent with HI3516CV610‑20S.
Q5: What alternative SoC models are compatible?
A: HI3516DV300, HI3516CV500 are function‑similar. They are NOT pin‑to‑pin compatible; PCB modification and SDK migration are required.
Q6: Is it suitable for battery‑powered camera devices?
A: Yes. Low‑power architecture and fast cold‑boot work well for battery doorbells and low‑power surveillance cameras.
Q7: What is the operating temperature grade?
A: Standard version:‑20℃ ~ +70℃ (commercial). Industrial custom version:‑40℃ ~ +85℃, please confirm suffix before ordering.
Q8: Where to get datasheet and SDK?
A: No public datasheet for this custom chip. Please submit inquiry for hardware documents, SDK and bulk price.
