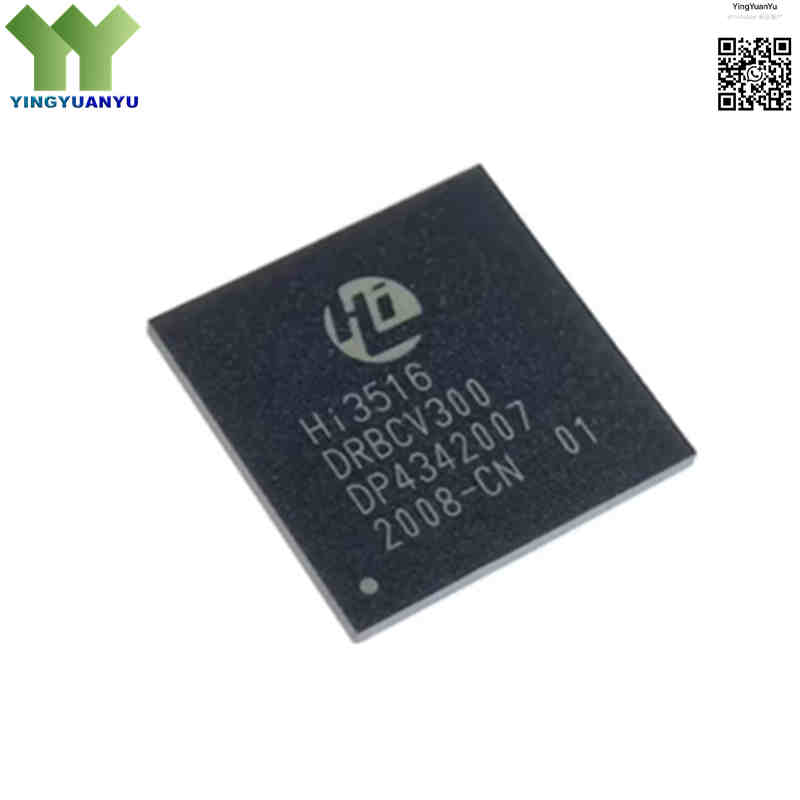

HI3516DRBCV300
HI3516DRBCV300
| Part Number | HI3516DRBCV300 |
|---|---|
| Manufacturer | Hisilicon |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers / System-on-Chip (SoC) |
| Description | HD IP Camera System-on-Chip (SoC), H.265/H.264 Video Encoder, Integrated Neural Network Engine (NNIE), TFBGA‑367 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HI3516DRBCV300 (Hi3516DV300) is a low‑power SoC for smart HD IP cameras and edge AI vision devices. It integrates dual‑core ARM Cortex‑A7 CPU, hardware NNIE AI engine, and high‑performance ISP, supporting H.265/H.264 multi‑stream video encoding up to 5‑megapixel. Ideal for surveillance cameras, face‑recognition terminals and smart home vision products.
Core Advantages
Integrated Neural Network Engine (NNIE)
Built‑in hardware NNIE delivers 1.0 TOPS INT8 AI computing power, enabling local edge AI tasks including face detection and human‑body recognition with low latency.
Advanced Image Signal Processor (ISP)
Equipped with multi‑frame WDR, 3DNR noise reduction and low‑light enhancement, delivering stable image quality under high‑contrast and dim‑light conditions.
High‑Efficiency H.265 Video Encoding
Supports multi‑stream H.265/H.264 encoding. Smart compression reduces bandwidth and storage consumption without losing image clarity.
Low Power Consumption & High Integration
Energy‑efficient Cortex‑A7 architecture minimizes heat dissipation, supporting fan‑less compact designs for indoor & outdoor camera applications.
Key Specifications
| Brand | Hisilicon |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | TFBGA‑367 (14×14 mm,0.65 mm ball pitch) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | HI3516DRBCV300 Marking |
| CPU Core | Dual‑Core ARM Cortex‑A7 @ 900MHz (NEON+FPU), 32KB I/D Cache + 256KB L2 Cache |
| AI Inference Engine | Hardware NNIE (Neural Network Intelligent Engine), 1.0 TOPS (INT8) |
| Video Compression | H.265 / H.264 / MJPEG Codec |
| Video Encoding Performance | Max 2688×1944 @ 20fps; 2688×1536 @ 30fps; Multi‑stream encoding support; Max bitrate 50Mbps |
| Memory Support | DDR3 / DDR3L / DDR4 (32‑bit, max 16Gbit, 1800Mbps) |
| Operating Temperature | 0°C to +70°C; Storage Temperature: -40°C to +85°C |
| Power Supply Voltage | Core: 0.9V; IO: 3.3V; DDR: 1.5V / 1.8V |
| Peripheral Interfaces | MIPI CSI, LVDS, Ethernet, USB2.0, SDIO3.0, I2C, SPI, UART, Audio Codec, eMMC4.5, SPI‑NAND/NOR Flash |
| OS Support | Linux‑4.9 SDK, supports OpenHarmony adaptation |
Typical Applications
- Smart High‑Definition IP Surveillance Cameras (Dome, Bullet, and PTZ Cameras)
- AI‑Powered Face Recognition Terminals and Access Control Systems
- Smart Home Security Devices and Video Doorbells
- Commercial Edge AI Vision Modules and Intelligent Retail Analytics
- Industrial Inspection Systems and Dashcams / Vehicle Monitoring Devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are the main applications of HI3516DRBCV300?
A: It is designed for smart HD IP cameras, AI video analytics, face‑recognition access terminals and smart home vision devices.
Q2: Does HI3516DRBCV300 support on‑chip AI neural network processing?
A: Yes. It integrates NNIE hardware engine with 1.0 TOPS INT8 computing power for local edge AI inference.
Q3: What video encoding formats does HI3516DRBCV300 support?
A: Supports H.265, H.264 and MJPEG. Max resolution is 2688×1944@20fps with multi‑stream output.
Q4: What does suffix “DRBCV300” mean? Is it compatible with Hi3516DV300?
A: HI3516DRBCV300 is the full marking of Hi3516DV300. Die, electrical parameters, package and pinout are 100% pin‑to‑pin interchangeable.
Q5: Are there direct pin‑compatible drop‑in replacements for HI3516DRBCV300?
A: No direct pin‑to‑pin substitute. Hi3516DV500 is the upgraded successor; hardware circuit re‑tuning is required for migration.
Q6: Can HI3516DRBCV300 work with DDR4 memory?
A: Yes, it supports DDR3 / DDR3L / DDR4 (32‑bit, max 16Gbit). DDR3/DDR3L are more widely used in mass‑production camera designs.
Q7: What are the package dimension and ball pitch of HI3516DRBCV300?
A: TFBGA‑367 package, 14 mm×14 mm body, 0.65 mm ball pitch. Refer to datasheet for detailed PCB footprint.
Q8: Can HI3516DRBCV300 encode 4K video?
A: No. Maximum encoding resolution is 5‑megapixel (2688×1944). 4K encoding is not supported.
Q9: What OS and SDK are available for HI3516DRBCV300?
A: Official SDK is based on Linux‑4.9 kernel. OpenHarmony adaptation is also supported. Documents can be requested via inquiry.
Q10: How can I get datasheets, SDK, stock info or quotation?
A: Technical documents, SDK availability, stock status and volume quotes can be requested through our Quick Inquiry form.
