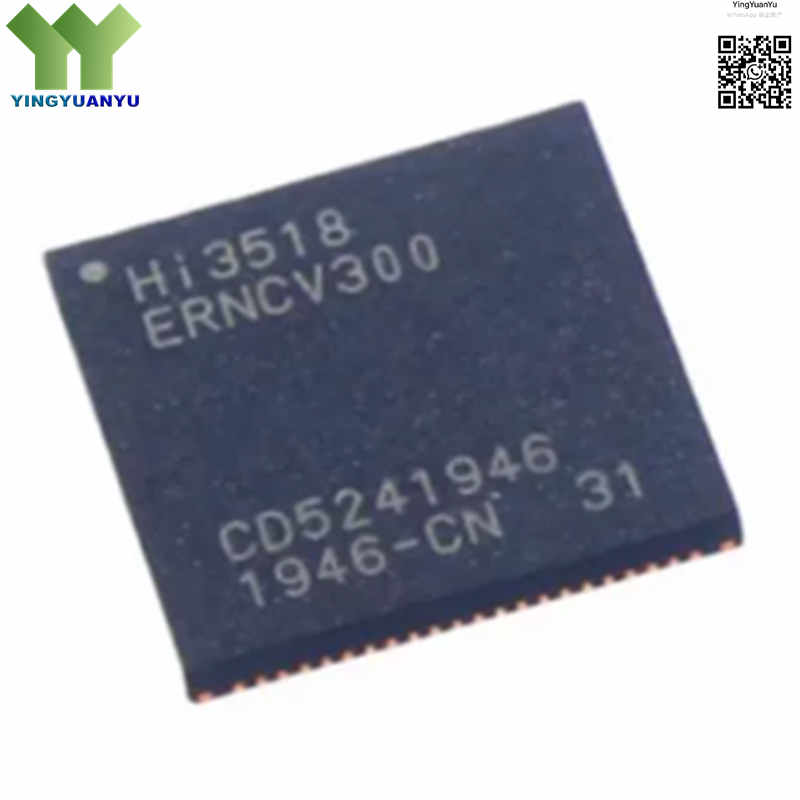

HI3518ERNCV300
HI3518ERNCV300
| Part Number | HI3518ERNCV300 |
|---|---|
| Manufacturer | HiSilicon (Huawei) |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers / Microprocessors / SoCs |
| Description | HD IP Camera SoC (System-on-Chip) with Integrated ISP and H.264 Encoder |
2. Product Overview
The HI3518ERNCV300 is a highly integrated, cost-effective, and low-power HD IP Camera System-on-Chip (SoC) designed by HiSilicon. Engineered specifically for the next generation of smart IoT video surveillance, it integrates a high-performance ARM processor core, a next-generation Image Signal Processor (ISP), and an optimized H.264 video compression encoder.
This SoC is widely adopted in entry-level consumer IP cameras, smart home security systems, and industrial monitoring endpoints. Its architectural optimization ensures crystal-clear HD video capture even in ultra-low-light environments, while minimizing bandwidth and storage requirements, making it an ideal hardware foundation for modern edge-computing video applications.
3. Core Advantages
Ultra-Low Power Consumption
Utilizes advanced low-power process architecture and optimized power-saving modes, significantly reducing thermal dissipation and enabling stable operation in compact, fanless camera enclosures.
Advanced ISP Image Processing
Features an embedded professional-grade ISP that supports 3D noise reduction (3DNR), digital wide dynamic range (WDR), and highlight compensation, ensuring superior image clarity under complex lighting conditions.
High Efficiency Video Encoding
The hardware H.264 encoder delivers high-profile compression, allowing high-definition video transmission over low-bandwidth network connections without compromising visual details.
High Integration & Low BOM Cost
Integrates various peripheral interfaces, DDR memory interface options, and audio codecs onto a single chip, drastically simplifying PCB routing and reducing the overall Bill of Materials (BOM) cost.
4. Key Specifications
| Brand | HiSilicon |
|---|---|
| RoHS Status | RoHS Compliant / Lead Free |
| EDA / CAD Models | PCB Footprint & Symbol Available (Request via support) |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | BGA (Ball Grid Array) |
| Mounting Type | Surface Mount Technology (SMT) |
| Surface Marking / Silkscreen | HI3518ERNCV300 Marking |
| Core Processor | ARM Cortex-A7 @ max 600MHz |
| Video Encoding Format | H.264 Baseline / Main / High Profile |
| Max Resolution | 720P / 960P / 1080P @ 30fps Video Encoding Capability |
| ISP Features | 3DNR, WDR, Defogging, Lens Distortion Correction (LDC) |
| Peripheral Interfaces | SPI, I2C, UART, GPIO, SDIO, USB 2.0, Ethernet MAC |
| Operating Temperature | -20°C ~ +70°C (Industrial/Commercial Grade options) |
5. Typical Applications
- Smart Home Security: Consumer-grade indoor/outdoor Wi-Fi IP cameras and smart video doorbells.
- Commercial Surveillance: Network video monitoring systems for retail, offices, and small businesses.
- IoT Edge Video Endpoints: Smart building sensors, baby monitors, and embedded machine vision systems.
- Industrial Inspection: Low-power remote monitoring equipment and industrial dashcams.
6. Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
7. Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
8. Frequently Asked Questions (FAQ)
Q1: Is the HI3518ERNCV300 fully original and brand new?
A: Yes, we only supply 100% brand new, factory-sealed, original HiSilicon integrated circuits. Each batch goes through strict quality control inspection before shipment.
Q2: Can I get the reference schematic designs and datasheet for this SoC?
A: Absolutely. Technical documentation including pin definitions, hardware design guidelines, and datasheet downloads are provided to verified customers upon request via the Quick Inquiry form.
Q3: What are the main differences between HI3518ERNCV300 and older V200 versions?
A: The V300 version provides highly optimized power efficiency, an upgraded ISP core with enhanced 3D noise reduction, and better bit-rate control for H.264 encoding compared to previous generations, resulting in lower BOM costs for manufacturers.
Q4: Do you offer bulk discounts for mass production orders?
A: Yes, we offer tiered wholesale pricing based on order quantity. Please specify your target annual or batch volume in your inquiry to receive a customized quotation.
