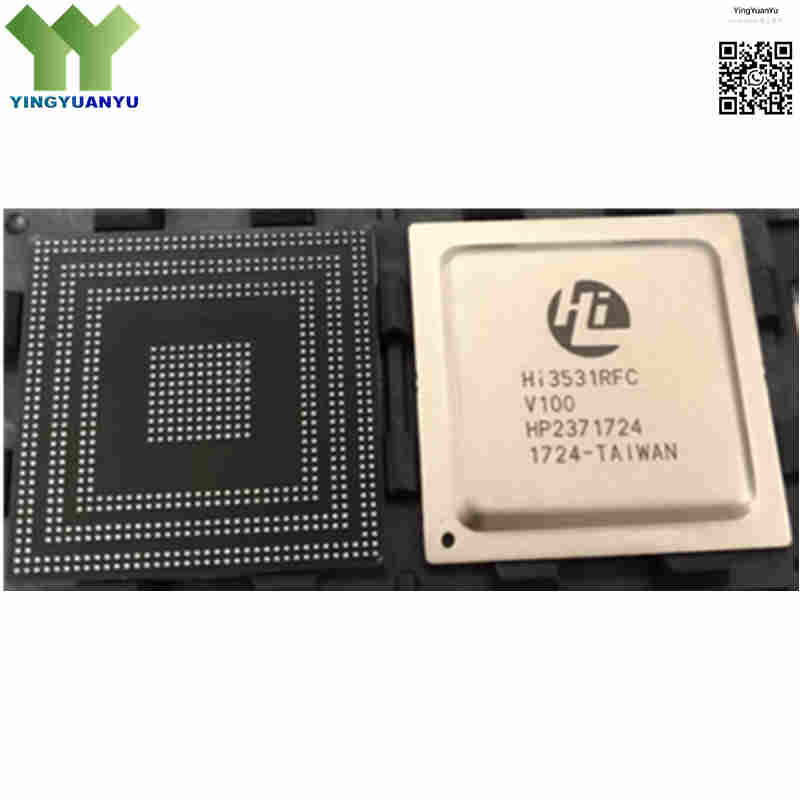

HI3531RFCV100
HI3531RFCV100
| Part Number | Hi3531RFCV100 |
|---|---|
| Manufacturer | HiSilicon |
| Category | Integrated Circuits (ICs) > Embedded – System On Chip (SoC) / Video Processors |
| Description | High-performance, multi-channel H.264 video processing SoC integrating an ARM Cortex dual-core processor, a high-performance video engine, and extensive peripheral interfaces, optimized for multi-channel digital video recorders (DVRs) and network video recorders (NVRs). |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The Hi3531RFCV100 is a multi-channel H.264 video encoder/decoder SoC from HiSilicon, designed for enterprise surveillance DVR/NVR systems. Built around dual-core ARM Cortex-A9 and dedicated vector processing unit, it handles simultaneous multi-channel audio/video encoding, decoding and intelligent motion analytics. It supports up to 16-channel real-time D1 encoding with independent sub-stream to lower network bandwidth pressure. This single-chip solution integrates DDR3 memory controller, multi-channel audio codec, full video I/O and display acceleration, reducing PCB size and BOM cost. Packaged in thermally optimized BGA-817, it serves as a core processor for hybrid analog-IP recording equipment.
Core Advantages
Massive Multi-Channel Encoding Capacity
Features an elite high-throughput H.264 processing engine capable of simultaneously encoding 16 channels of D1 resolution or up to 4 channels of 1080P high-definition video feeds smoothly without frame drops.
Dual-Core ARM Processing Matrix
Powered by an embedded ARM Cortex-A9 dual-core CPU architecture running up to high clock boundaries, providing abundant computational overhead to execute standalone custom Linux operating frameworks, user control interfaces, and network protocols.
Comprehensive Video and Peripheral Interfaces
Integrates versatile video input matrices supporting interleaved or independent digital video input buses, high-definition HDMI/VGA display outputs, high-speed PCIe channels, and SATA controllers to optimize multi-drive storage designs.
Exceptional Image Pre-processing and Analytics
Incorporates specialized on-chip video pre-processing blocks handling 3D de-interlacing, motion-adaptive noise reduction, sharp filtering, and privacy masking overlays to guarantee superior image clarity under complex lighting changes.
Key Specifications
| Brand | HiSilicon |
|---|---|
| RoHS Status | RoHS 10 Compliant, Lead-Free packaging |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | BGA-817 Package |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | Hi3531RFCV100 Marking |
| CPU Architecture Core | ARM Cortex-A9 Dual-Core Processor Base |
| Video Compression Protocol | H.264 Baseline / Main / High Profile and JPEG/MJPEG Baseline Coding |
| Maximum Codec Performance | 16x D1 Real-Time @ 30 fps Encoding + 16x D1 Real-Time Decoding Matrix |
| Memory Interface Standard | Dual-Channel High-Speed 32-bit DDR3 / DDR3L Memory Controller Block |
| Storage Disk Drive Interface | Integrated SATA II controller interfaces supporting high-capacity HDD configurations |
| Network Interface Support | Integrated Gigabit Ethernet MAC supporting RGMII / RMII physical layer links |
| Display Outputs | Simultaneous independent HDMI, VGA, and CVBS standard analog/digital output ports |
| Peripheral Interconnect Expansion | PCIe 2.0, USB 2.0 Host/Device, UART, SPI, I2C, and Configurable GPIO Rails |
| Operating Temperature Range | Industrial grade: -40℃ ~ +85℃ ambient working temperature |
Typical Applications
- Professional Multi-Channel Standalone Digital Video Recorders (DVRs) for Enterprise Security
- Hybrid Network Video Recorders (NVRs) and Security Command Center Storage Enclosures
- Multi-Channel High-Definition Video Capture Cards and Hardware Live-Streaming Switchers
- Commercial Transportation Vehicle Recorders, Fleet Telemetry Hubs, and Aviation Surveillance Cabinets
- Industrial Automation Inspection Racks, Multi-point Remote Monitoring Hubs, and Edge AI Gateway Nodes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently listed inventory of the Hi3531RFCV100 SoC fully genuine and original factory stock?
A: Yes, we guarantee that all Hi3531RFCV100 components in our warehouse stock are 100% brand-new, factory-original parts from HiSilicon, securely stored and managed inside anti-static ESD packaging envelopes under temperature-regulated parameters.
Q2: Can the Hi3531RFCV100 manage hybrid inputs combining both analog and digital network IP cameras?
A: Yes, thanks to its versatile multi-channel video input sub-ports and highly flexible software SDK platform, this processor is widely deployed in hybrid video recorder configurations that simultaneously accept digitized analog input streams via external video decoders and network IP data streams via the integrated Gigabit Ethernet controller.
Q3: How does the dual-channel DDR3 memory architecture support high-volume video processing workloads?
A: Video coding requires massive bandwidth memory traffic to store multi-frame reference buffers. The dual-channel 32-bit wide memory architecture of the Hi3531 ensures adequate bandwidth capability, eliminating data flow bottlenecks during concurrent 16-channel recording and playback routines.
Q4: How can our technical group request complete system SDK board support packages, reference schematics, or bulk wholesale pricing schedules?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
