HTM9G09S015P

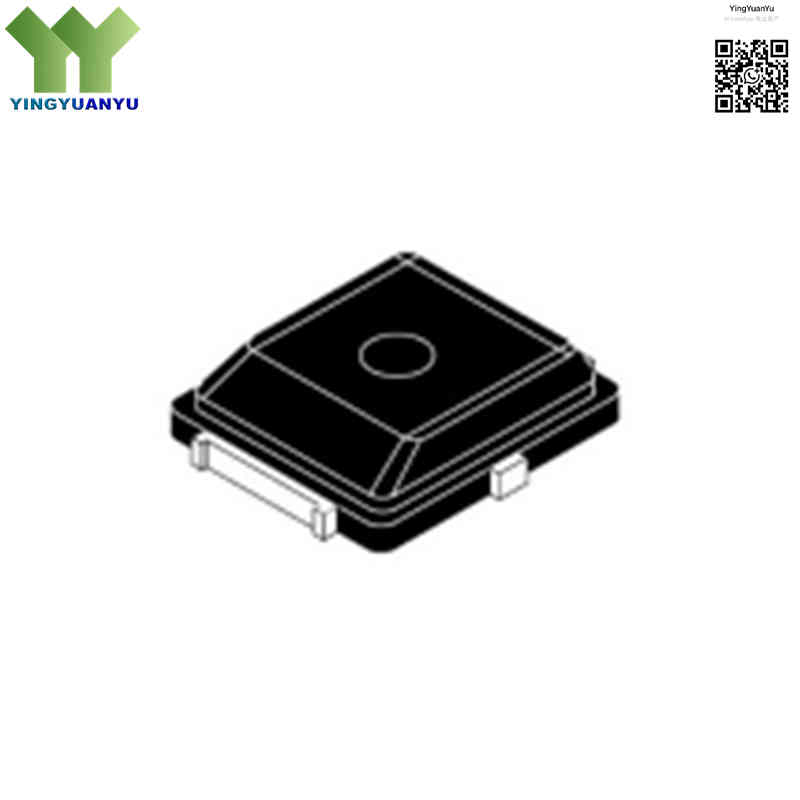

HTM9G09S015P
| Part Number | HTM9G09S015P |
|---|---|
| Manufacturer | WATECH |
| Category | Discrete Semiconductor Products / RF & Microwave Components > Power LDMOS / RF Power Amplifier Transistor |
| Description | 15W Un‑unmatched RF LDMOS Power Amplifier Transistor, 1.8‑950 MHz, +12.5V, PDFN 5.85X6.6‑2‑L Surface‑mount Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HTM9G09S015P is an un‑unmatched discrete LDMOS RF power transistor from WATECH. It delivers 15W saturated output power at +12.5V drain supply across 1.8‑950 MHz. External PCB matching circuits are required. Packaged in PDFN 5.85X6.6‑2‑L lead‑free SMD housing with enhanced ESD protection, it targets CDMA, W‑CDMA, GSM‑EDGE, LTE and WiMAX wireless infrastructure amplifiers.
Core Advantages
15W Saturated RF Output Power
15W saturated power covering 1.8‑950 MHz bandwidth for multi‑band cellular RF amplification.
High Robustness with ESD Protection
Enhanced ESD design and good VSWR tolerance, avoids device degradation under load‑mismatch conditions.
Good Thermal Performance
Low‑thermal‑resistance PDFN package with exposed pad ensures reliable heat dissipation for CW RF operation.
Flexible Matching Implementation
Un‑unmatched die supports custom input/output matching networks to optimize gain and efficiency for target frequency.
Key Specifications
| Brand | WATECH |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | PDFN 5.85X6.6‑2‑L (Power Dual Flat No‑lead) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | HTM9G09S015P |
| Transistor Type | RF Power LDMOS Transistor |
| Frequency Range | 1.8‑950 MHz |
| Internal Matching | Un‑unmatched, external matching circuit required |
| Drain Supply Voltage | +12.5V |
| Saturated Output Power | 15W |
| Thermal Resistance (Junction‑to‑Case) | 1.86 °C/W |
| Operating Temperature | -40°C to +85°C (Industrial/Telecom Grade) |
| Storage Temperature | -55°C ~ +150°C |
| Evaluaiton Board Variant | HTM9G09S015PEVB (764‑870 MHz EVB) |
Typical Applications
- CDMA / W‑CDMA Wireless Infrastructure Power Amplifiers
- GSM‑EDGE, MC‑GSM Cellular Radio Transmitters
- TD‑SCDMA / FDD‑LTE Base‑station & Repeater Units
- WiMAX RF Power Amplifier Systems
- General‑purpose sub‑1GHz industrial RF amplification
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the main application of HTM9G09S015P?
A1: This 15W un‑unmatched LDMOS transistor targets 1.8‑950 MHz cellular infrastructure, LTE, GSM‑EDGE and WiMAX RF power amplifiers.
Q2: Does HTM9G09S015P include internal pre‑matching network?
A2: No. It is un‑unmatched device. External input and output matching circuits on PCB are required for normal RF performance.
Q3: What thermal design requirements for HTM9G09S015P?
A3: Solder exposed pad to PCB thermal land with thermal vias connected to heatsink. Typical junction‑to‑case thermal resistance is 1.86 °C/W.
Q4: What is HTM9G09S015PEVB?
A4: It is the matching evaluation board for HTM9G09S015P, frequency range 764‑870 MHz, used for prototype verification and performance testing.
Q5: Are there alternative cross‑reference parts for HTM9G09S015P?
A5: Alternatives shall match 12.5V supply, 15W output power, 1.8‑950 MHz bandwidth and PDFN footprint. Submit your project requirements for accurate replacement recommendations.
Q6: What is the difference between HTM9G09S015P and HTM9G09S015PEVB?
A6: HTM9G09S015P is the transistor component (tape‑and‑reel reel package). Suffix PEVB stands for evaluation board, not transistor. Use full part‑number to avoid ordering errors.
Q7: How to get datasheet, simulation model and bulk price?
A7: Please submit online inquiry for datasheet, S‑parameter model, stock status and volume quotation.
