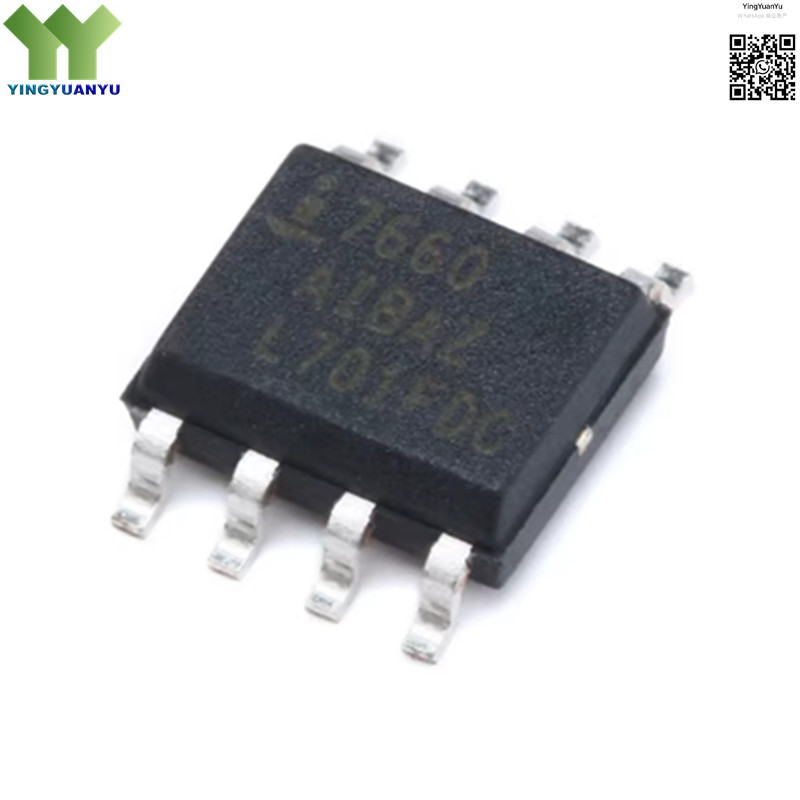

ICL7660AIBAZA-T
ICL7660AIBAZA-T
| Part Number | ICL7660AIBAZA-T |
|---|---|
| Manufacturer | RENESAS / IDT |
| Category | Voltage Converters; Switched Capacitor Voltage Inverters |
| Description | CMOS Voltage Converter, Positive to Negative Voltage, 1.5V-12V Input, SOIC-8 Package |
Product Overview
The ICL7660AIBAZA-T is a high-performance CMOS switched-capacitor voltage converter designed to convert a positive input voltage to a negative output voltage without requiring inductors. It operates from a wide input voltage range of 1.5V to 12V, generating a complementary negative output with high efficiency and minimal external components. The device features low quiescent current, low operating noise, over-temperature protection, and short-circuit protection for reliable operation in portable and battery-powered systems. Its fully integrated design eliminates the need for inductors, reducing PCB space and system cost. Housed in a standard SOIC-8 surface-mount package, it is ideal for industrial, consumer, and embedded applications requiring negative voltage supplies.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | RENESAS / IDT |
| Input Voltage | 1.5V ~ 12V |
| Function | Positive to Negative Voltage Conversion |
| Topology | Switched Capacitor (Inductorless) |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Negative Voltage Supply Generation
- Portable & Battery-Powered Devices
- Op-Amp & Analog Circuit Biasing
- Industrial Control & Instrumentation
- Embedded System Dual-Power Supplies
- Consumer Electronics & Test Equipment
- Low-Power Sensor & DAC Circuits
- Inductorless DC-DC Voltage Conversion
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
