ICM-20600
ICM-20600
| Part Number | ICM-20600 |
| Manufacturer | InvenSense |
| Category | Sensors > Motion Sensors > IMU (Inertial Measurement Unit) |
| Description | 6-Axis MEMS Motion Sensor, 3-Axis Accelerometer(X,Y,Z) + 3-Axis Gyroscope (X,Y,Z),LGA-14(2.5×3) Package |
Product Overview
The ICM-20600 is a high-performance 6-axis inertial measurement unit integrating a 3-axis accelerometer and a 3-axis gyroscope in a single compact package. Adopting advanced MEMS technology, this sensor delivers high stability, low noise and excellent motion tracking accuracy. It supports multiple configurable measurement ranges and built-in signal processing functions, simplifying system design and reducing peripheral components. With low power consumption and reliable performance, it is widely used for motion detection, attitude sensing and orientation tracking in various portable devices, wearable products and IoT equipment.
Key Specifications
| Brand | InvenSense |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | LGA-14(2.5×3) |
| Mounting Type | Surface Mount |

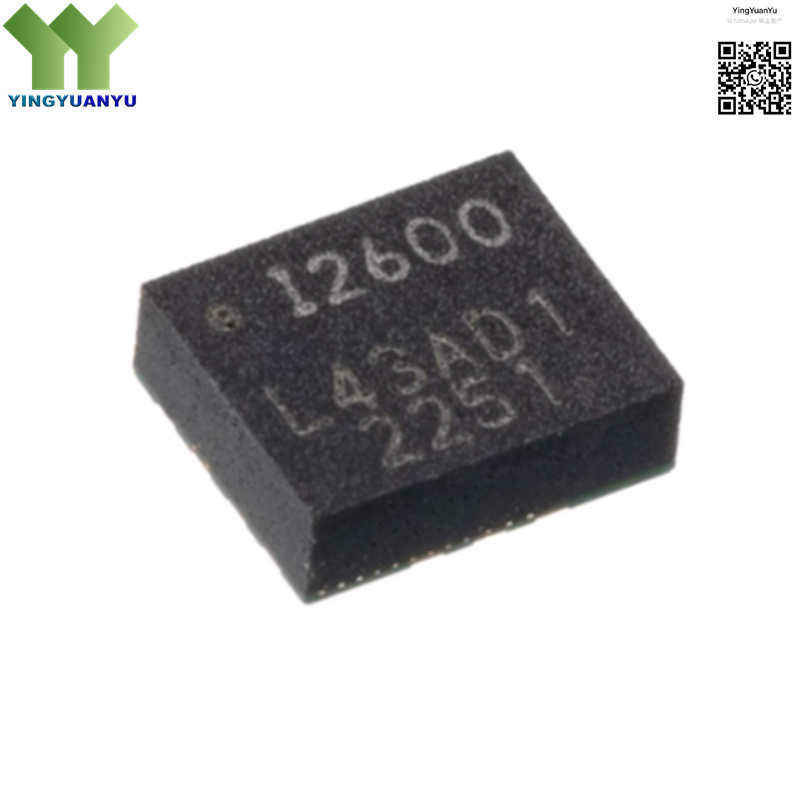

| Surface Marking / Silkscreen | 12600 Marking |
| Combination | 3-Axis Accelerometer + 3-Axis Gyroscope |
| Accelerometer Range | ±2g, ±4g, ±8g, ±16g |
| Gyroscope Range | ±250, ±500, ±1000, ±2000 dps |
| Interface | I2C, SPI |
| Operating Voltage | 1.71V to 3.45V |
| Operating Temperature | -40°C to 85°C |
Typical Applications
- Wearable Electronic Devices
- Smartphones and Tablets
- IoT Smart Sensors
- Drone and RC Model Attitude Control
- Virtual Reality and Augmented Reality Devices
- Smart Home Equipment
- Industrial Motion Monitoring
- Portable Health Monitoring Devices
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is ICM-20600 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I get samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting method?
A: It adopts LGA-14 package and surface mount type for PCB assembly.
Q4: How long is the product warranty?
A: We offer 1 year standard warranty for all products.
