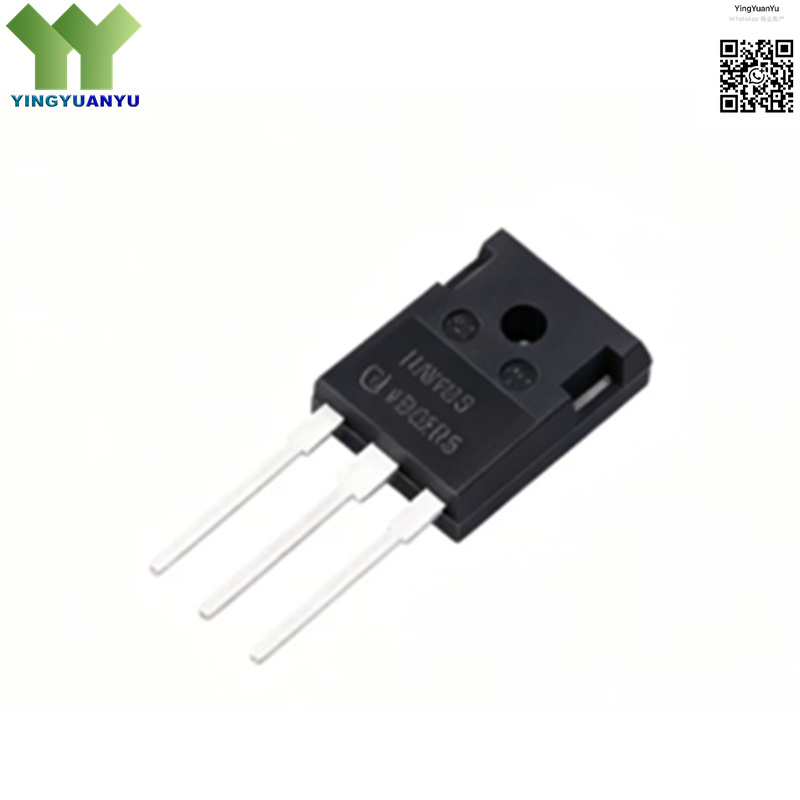

IHW30N135R5
IHW30N135R5
| Part Number | IHW30N135R5 |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Power MOSFET; N-Channel CoolMOS Power Transistor |
| Description | N-Channel CoolMOS MOSFET, 1350V, 30A, Low On-Resistance, TO-247-3 Package, Through Hole |
Product Overview
The IHW30N135R5 is a high-voltage N-Channel CoolMOS power MOSFET designed for high-efficiency power conversion applications. It combines ultra-low on-resistance (RDS(on)), high blocking voltage capability, and excellent switching performance to minimize power losses and maximize energy efficiency. The device offers robust avalanche energy rating, high thermal stability, and reliable operation in high-stress industrial and power supply environments. Housed in a industry-standard TO-247-3 through-hole package, it provides excellent thermal conductivity and easy PCB mounting for high-power designs.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| VDS (Drain-Source Voltage) | 1350 V |
| ID (Continuous Drain Current) | 30 A |
| RDS(on) Max | 0.135 Ω |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High-Voltage Switching Power Supplies
- Server & Telecom Power Systems
- Solar Inverters & Renewable Energy Systems
- Industrial Motor Drives & Controls
- Uninterruptible Power Supplies (UPS)
- Electric Vehicle (EV) Charging Systems
- Lighting Ballasts & High-Power LED Drivers
- Welding Equipment & Power Converters
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
