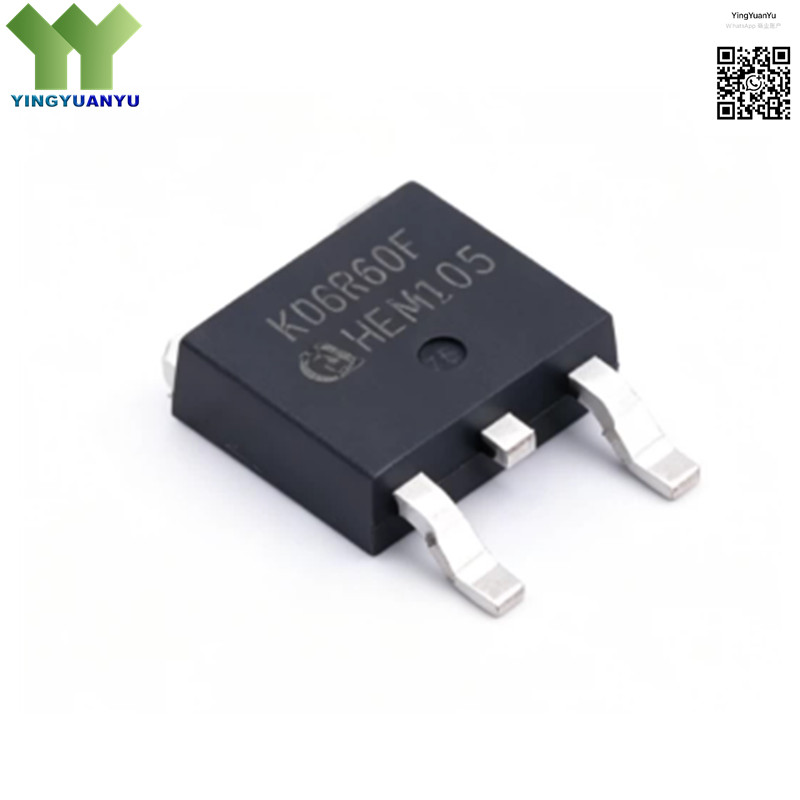

IKD06N60RFATMA1
IKD06N60RFATMA1
| Part Number | IKD06N60RFATMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | IGBT Transistors; IGBT Single Transistor |
| Description | 600V 6A IGBT, Low Saturation Voltage, Fast Switching, TO-252 Package |
Product Overview
The IKD06N60RFATMA1 is a high-performance 600V N-channel IGBT transistor designed for high-efficiency power switching applications. It combines low conduction losses, fast switching speed, and robust short-circuit capability, making it ideal for high-frequency power conversion systems. The device features built-in fast recovery diode, excellent thermal performance, and stable operation under harsh conditions. Housed in a compact TO-252 surface-mount package, it enables space-efficient PCB design and reliable performance for industrial, consumer, and lighting power electronics.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (D-PAK) |
| Mounting Type | Surface Mount (SMD) |
| Collector-Emitter Voltage (Vceo) | 600 V |
| Continuous Collector Current (Ic) | 6 A |
| Collector Dissipation (Pc) | 50 W |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Switch-Mode Power Supplies (SMPS)
- LED Lighting Drivers & Ballasts
- DC-AC Power Inverters
- High-Frequency Power Converters
- Industrial Control Systems
- Home Appliances Power Modules
- Battery Charging Circuits
- Small Power Motor Drivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
