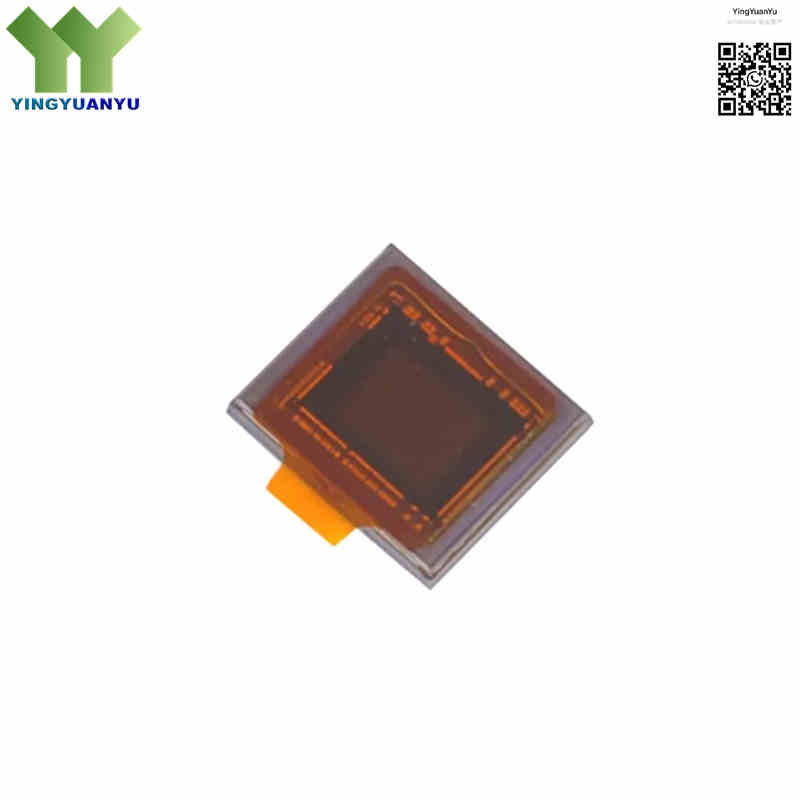

IMX117CQT-C
IMX117CQT-C
| Part Number | IMX117CQT-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.3″ 12.4 MP High‑Speed Back‑Illuminated Color CMOS Image Sensor, Exmor R Technology, Ceramic LGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX117CQT‑C is a 1/2.3‑inch 12.4MP back‑illuminated CMOS image sensor adopting Sony Exmor R™ technology. It delivers high sensitivity and low‑noise performance, supports Sub‑LVDS high‑speed output, widely used for action cameras, drone aerial cameras and consumer camcorders. It supports 4K@60fps video recording, housed in ceramic LGA package for stable thermal performance.
Core Advantages
12.4 MP Resolution & Native 4K High‑Speed Capture
4072 × 3046 physical active pixels, supports 4K UHD 60fps video output for high‑speed imaging scenarios.
Sony Exmor R Back‑Illuminated Pixel Design
Back‑side illumination structure improves light‑gathering efficiency, achieves excellent low‑light sensitivity and signal‑to‑noise ratio.
Flexible Readout Operating Modes
Support sub‑sampling, pixel binning modes, suitable for slow‑motion video and real‑time motion tracking applications.
Sub‑LVDS High‑Speed Serial Interface
Multi‑channel Sub‑LVDS interface provides sufficient bandwidth for continuous 4K high‑speed video streaming transmission.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Ceramic LGA (Land Grid Array) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 117C Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Active Array Size | 4072 (H) × 3046 (V) approx. 12.4 Megapixels |
| Optical Format | Type 1/2.3 inch (Diagonal 7.81 mm) |
| Pixel Size | 1.55 µm (H) × 1.55 µm (V) |
| Maximum Frame Rate | 30 fps @ 12.4 MP (4072 × 3046), 60 fps @ 4K UHD (3840 × 2160) |
| Output Interface | Sub‑LVDS Serial Interface |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Shutter Type | Rolling Shutter |
| Input Clock Frequency | Max 72 MHz |
| Operating Temperature Range | ‑20°C to +75°C |
Typical Applications
- Sports Action Cameras, Wearable Camcorders, and Consumer DV Recorders
- Drone / UAV Aerial Photography and Optical Gimbal Camera Modules
- High‑Definition Security Surveillance Cameras and Intelligent Monitoring Systems
- Industrial Inspection, Embedded Vision Modules, and Machine Vision Systems
- Virtual Reality (VR) Panoramic Cameras and Video Conferencing Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the optical size and pixel resolution of the IMX117CQT‑C?
A: It features 1/2.3‑inch optical format (7.81 mm diagonal), physical active array 4072 × 3046 (approx.12.4 MP), pixel size 1.55 µm.
Q2: What maximum frame rate does IMX117CQT‑C support?
A: Full‑pixel readout reaches [email protected]; cropped 4K UHD mode supports up to 60fps.
Q3: What digital interface does IMX117CQT‑C utilize?
A: Multi‑channel Sub‑LVDS serial interface for high‑bandwidth image data transmission.
Q4: What is the difference between IMX117CQT‑C and other IMX117 suffix versions?
A: Suffix ‑C stands for ceramic LGA package. Different suffix varies in package and screening grade. They are not directly pin‑to‑pin compatible without PCB validation.
Q5: What is the difference between Ceramic LGA‑98 and CLCC‑98 for IMX117CQT‑C?
A: Official package is Ceramic LGA‑98 with bottom‑side array pads. CLCC‑98 is a popular market alias. True CLCC uses side castellated pads, which is different from this device.
Q6: Are there drop‑in compatible alternatives for IMX117CQT‑C?
A: No fully pin‑compatible replacement. For similar 1/2.3″ BSI high‑speed sensor, evaluate IMX274. Note package, interface and firmware require full rework.
Q7: Can IMX117CQT‑C be used for industrial continuous monitoring?
A: This is consumer‑grade image sensor. It works for general industrial vision, but not recommended for long‑term high‑reliability continuous operation.
Q8: How to get datasheet, pinout diagram or bulk price for IMX117CQT‑C?
A: Submit your request through our Quick Inquiry form for datasheet, reference design, stock check and volume quotation. We will reply within 24 hours.
