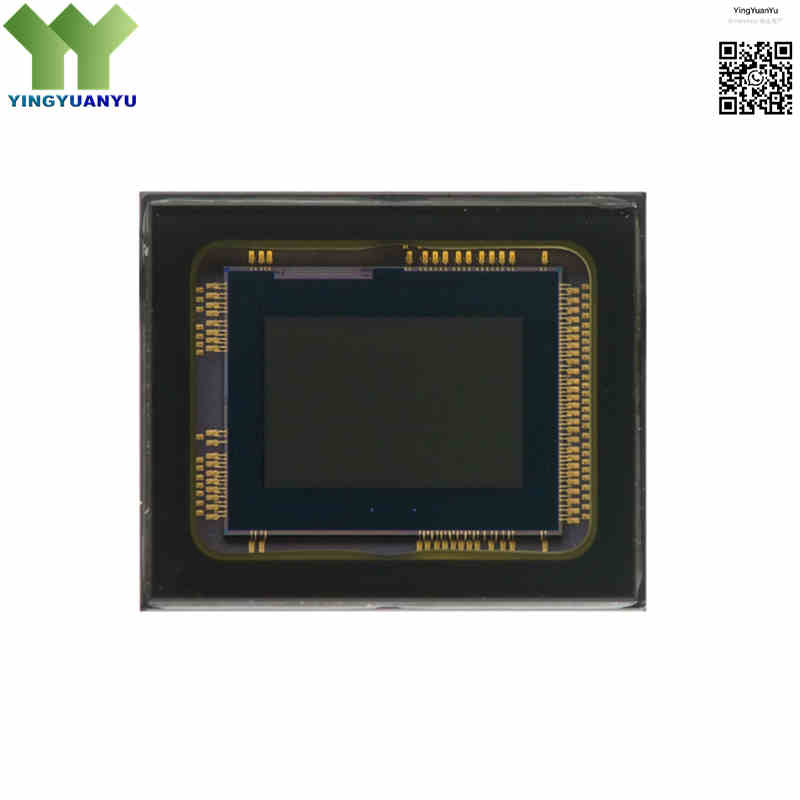

IMX185LQJ-C
IMX185LQJ-C
| Part Number | IMX185LQJ‑C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/1.9″ 2.38 MP Color Exmor CMOS Image Sensor, 3.75µm Pixel, Enhanced NIR Sensitivity, Multi‑Exposure DOL‑WDR, 110‑Pin LGA SMD Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX185LQJ‑C is Sony Exmor™ 2.38MP Type 1/1.9 CMOS image sensor with 8.58 mm diagonal. It adopts 3.75 µm square pixels to achieve high visible and near‑infrared sensitivity. Supports parallel / Sub‑LVDS / MIPI CSI‑2 output, max 120fps@1080p‑HD, multi‑exposure DOL‑WDR. Widely used for security surveillance, industrial machine‑vision and ITS traffic systems.
Core Advantages
3.75 µm Large Square Pixel
Large‑size pixel delivers high SNR and excellent low‑light imaging performance for 2.38MP resolution.
Enhanced NIR Sensitivity
Optimized spectral response for near‑infrared, works well with 850nm / 940nm IR illuminators for night‑vision.
DOL‑WDR Multi‑Exposure
Digital overlap wide dynamic range retains shadow and highlight details for high‑contrast outdoor and traffic scenes.
Multi‑Mode High‑Speed Interfaces
Parallel, Sub‑LVDS and MIPI CSI‑2 interfaces, maximum 120fps@1080p‑HD, compatible with mainstream ISP chips.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 128‑Pin Ceramic LGA Package |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 185L Marking |
| Total Effective Array Size | 1945 (H) × 1225 (V) approx. 2.38 Megapixels |
| Active Readout Array (WUXGA) | 1937 (H) × 1217 (V) |
| Optical Format | Type 1/1.9 inch (Diagonal 8.58 mm) |
| Pixel Size | 3.75 µm (H) x 3.75 µm (V) Square Pixels |
| Chroma | Color (RGB Primary Color Bayer Pattern) |
| Maximum Frame Rate | 120 fps @ 1080p‑HD (10‑bit /12‑bit RAW) |
| Output Interface | Parallel / Sub‑LVDS / MIPI CSI‑2 Interface |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Gain Range | Analog gain 0‑24dB, max total gain up to 48dB with digital gain |
| Input Clock Frequency | 27MHz / 54MHz / 37.125MHz /74.25MHz |
| Lens Requirement | Recommended F‑value ≥2.8, Exit pupil distance:‑30mm to ∞ |
| Power Supply | Analog 3.3V, Digital IO 1.8V, Digital Core 1.2V |
| Operating Temperature Range | ‑30°C to +75°C |
Typical Applications
- High‑End IP Security Surveillance Cameras and Ultra‑Low‑Light Night Vision Systems
- Industrial Machine Vision, Quality Control Inspection, and Automated FA Systems
- Intelligent Transportation Systems (ITS) and License Plate Recognition (ANPR)
- Scientific Imaging Instrumentation, Microscopy, and Medical Devices
- Outdoor Wildlife Surveillance, Drone Vision Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are core features of IMX185LQJ‑C?
A1: 1/1.9‑inch 2.38MP Exmor CMOS image sensor, 3.75µm large pixel, enhanced NIR sensitivity, DOL‑WDR, multi‑interface output, max 120fps@1080p‑HD.
Q2: What is the advantage of 3.75µm pixel?
A2: Larger light‑receiving area improves SNR, low‑light performance and dynamic range for surveillance and machine‑vision applications.
Q3: Does IMX185LQJ‑C support WDR?
A3: Yes, DOL multi‑exposure WDR, ideal for high‑contrast outdoor and traffic scenes.
Q4: What power supplies does IMX185LQJ‑C require?
A4: Three power rails: Analog 3.3V, IO 1.8V, Core 1.2V. Please strictly follow datasheet power‑up sequence.
Q5: What is the difference between IMX185LQJ‑C and IMX185LQJ‑G?
A5: Same silicon and pinout.‑C is tape‑and‑reel for SMT mass production;‑G is tray packaging for lab prototyping. Pin‑to‑pin compatible, no hardware changes needed.
Q6: Is IMX185LQJ‑C pin‑compatible with IMX178LQJ‑C?
A6: Same LGA footprint, pin‑compatible. IMX178 is higher 5MP resolution. Firmware and lens calibration must be adjusted, not direct drop‑in replacement.
Q7: What are alternative parts for IMX185LQJ‑C?
A7: Near‑performance alternatives: IMX178LQJ‑C, IMX226LQJ‑C, AR1231C. None are plug‑and‑play; PCB, firmware and optical tuning are required.
Q8: What lens is recommended for IMX185LQJ‑C?
A8: Recommended F‑value ≥2.8, exit pupil distance:‑30mm to ∞ to realize full sensor performance.
Q9: Why 110‑pin and 128‑pin descriptions both exist for IMX185LQJ?
A9: Total LGA land count is 128 pins. 110 stands for valid functional signal pins, remaining pads are NC/GND. PCB design shall follow official 128‑pin footprint.
Q10: Where can I get datasheet and bulk quotation?
A10: Submit inquiry form for datasheet, pinout drawing, sample and volume pricing.
