IMX269AQR-D

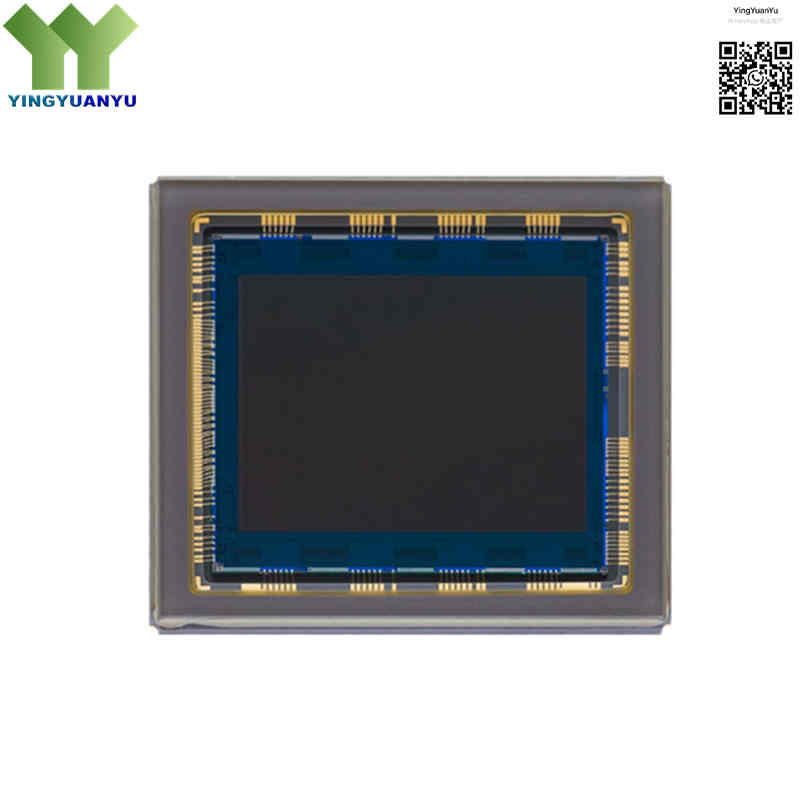

IMX269AQR-D
| Part Number | IMX269AQR-D |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 4/3″ 21.2MP Exmor R BSI CMOS Image Sensor, 3.3μm Pixel, Sub‑LVDS/SLVS‑EC, LGA Package Options. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
IMX269AQR‑D is Sony 4/3‑inch 21.27MP BSI CMOS image sensor with 3.3μm RGB‑Bayer pixel. It supports 10‑bit/12‑bit ADC, comes with LGA package options, designed for mirrorless cameras, machine vision and high‑speed capture systems.
Core Advantages
Exmor R BSI Pixel Technology
Back‑illuminated structure boosts light‑sensitivity and reduces low‑light imaging noise.
21.27MP 4/3‑inch High‑Resolution
5324×3996 effective pixels, 3.3 μm square pixel, delivers sharp image details.
High‑Speed Readout Performance
27fps full‑pixel@12‑bit; up to 437fps under 10‑bit cropped mode, integrated 24dB PGA.
Dual‑Package & High‑Speed Interface
Optional LGA / LCC package; Sub‑LVDS / SLVS‑EC interface compatible with mainstream ISP.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | LGA |
| Chip Physical Size | 20.449 mm (H) × 17.83 mm (V) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 269A Marking |
| Active Array Size | 5324 (H) × 3996 (V) approx. 21.27 Megapixels |
| Total Pixel Size | 5388 (H) × 4040 (V) approx. 21.77 Megapixels |
| Optical Format | Type 4/3 inch (Diagonal 21.77 mm) |
| Pixel Size | 3.3 µm (H) × 3.3 µm (V) Square Pixels |
| Chroma | Color (RGB Primary Color Bayer Pattern) |
| Maximum Frame Rate | 27 fps @ Full‑pixel 12‑bit; 437 fps @ cropped‑mode 10‑bit (648 Mbps) |
| Output Interface | Sub‑LVDS / SLVS‑EC Serial Interface |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter, Built‑in PGA 24dB |
| Operating Temperature Range | ‑20°C to +70°C |
Typical Applications
- Micro Four Thirds (MFT) Digital Mirrorless Cameras and Cinema Cameras
- High‑Resolution Industrial Machine Vision, Automated Optical Inspection (AOI), Metrology
- Aerial Surveying, Mapping Drones, High‑End Commercial UAV Payload Cameras
- Scientific Research, Digital Microscopy, High‑Precision Imaging Systems
- High‑speed capture testing equipment, professional photographic equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the resolution and optical format of IMX269AQR‑D?
A: 4/3‑inch optical format. Effective pixels 5324×3996 (21.27MP), total pixels 5388×4040 (21.77MP).
Q2: What pixel architecture is used for low‑light performance?
A: Sony Exmor R back‑illuminated BSI structure for higher light‑sensitivity and lower noise.
Q3: Difference between IMX269AQR and IMX269AQR‑D?
A: IMX269AQR: 20.3MP, only LGA package. IMX269AQR‑D: 21.27MP, supports LGA / LCC dual‑package, higher cropped‑mode frame rate. Not pin‑to‑pin compatible.
Q4: What is the difference between LGA and LCC package?
A: 84‑pin LGA and 60‑pin LCC have different pin definitions and PCB footprint. Cannot cross‑package direct replacement, PCB must match target package.
Q5: What frame rates can IMX269AQR‑D achieve?
A: 27fps full‑pixel@12‑bit; up to 437fps at cropped‑10‑bit mode, limited by ISP and system bandwidth.
Q6: Are there pin‑to‑pin alternative sensors?
A: No drop‑in replacement. For alternative solutions, please submit inquiry for project‑based recommendation.
Q7: How to get datasheet and pinout documents?
A: Please send inquiry to obtain datasheet, pin definition and bulk quotation.
