IMX307LQD-C
IMX307LQD-C
| Part Number | IMX307LQD-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 2.13 MP Full HD Color CMOS Image Sensor, STARVIS Technology, High Dynamic Range (HDR), 112‑Pin Ceramic BGA Package, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX307LQD‑C is Sony STARVIS series 2.13MP Full HD back‑illuminated CMOS image sensor with 1/2.8‑inch optical format. Delivering excellent starlight low‑light performance and DOL‑HDR capability, it outputs 1080p@60fps via MIPI CSI‑2 interface, widely used for surveillance, dashcam, smart doorbell and industrial vision devices.
Core Advantages
Sony STARVIS Starlight Performance
Back‑illuminated pixel architecture achieves high sensitivity for clear color imaging under star‑level low‑light environments.
DOL‑HDR Multiple‑Exposure Technology
Supports digital overlap HDR to preserve details for both bright highlights and dark shadow areas without motion artifacts.
Full HD 1080p High Frame Rate
Max 60fps@1080p output, suitable for high‑speed object monitoring and AI vision algorithm processing.
Flexible MIPI CSI‑2 Interface
2‑Lane /4‑Lane configurable, RAW10 / RAW12 output, compatible with mainstream ISP and main SoC chips.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Ceramic BGA |
| Mounting Type | Surface Mount (SMD / SMT) |

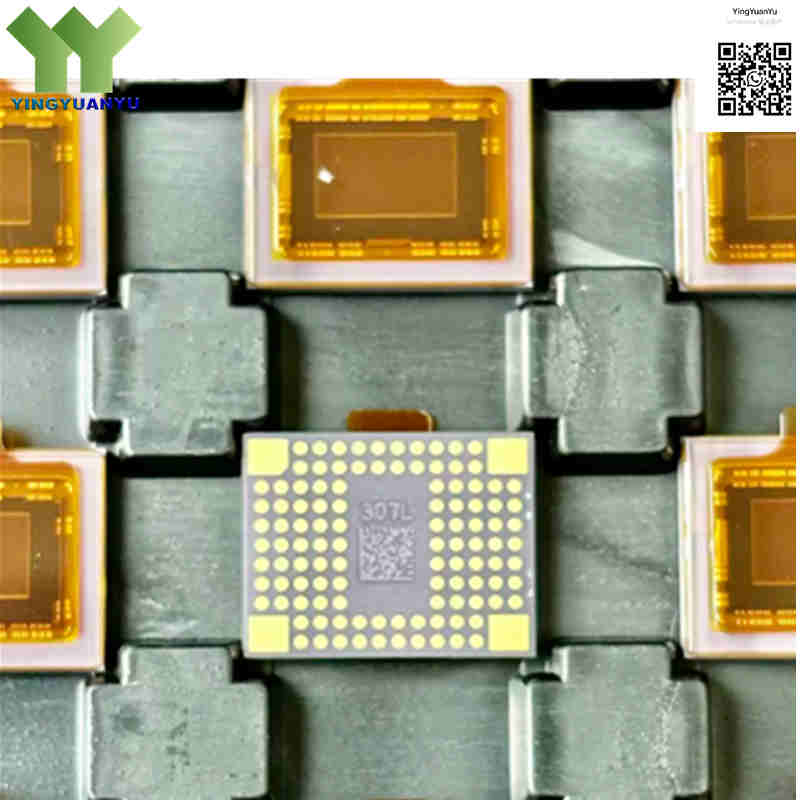

| Surface Marking / Silkscreen | 307L Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Active Array Size | 1945 (H) x 1097 (V) approx. 2.13 Megapixels (Full HD 1080p) |
| Optical Format | Type 1/2.8 inch (Diagonal 6.46 mm) |
| Pixel Size | 2.9 µm (H) x 2.9 µm (V) |
| Maximum Frame Rate | 60 fps @ Full HD 1080p (1920 x 1080) |
| Output Interface | MIPI CSI‑2 (2‑Lane / 4‑Lane) Serial Interface, RAW10 / RAW12 |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Shutter Type | Rolling Shutter |
| WDR Mode | Multiple‑exposure WDR + DOL‑HDR supported |
| NIR Sensitivity | Enhanced Near‑Infrared Response for IR night vision |
| Minimum Illumination | 0.24 lux (SNR1s) |
| Supply Voltage | 2.9V (Analog), 1.8V (Interface), 1.2V (Digital Core) |
| Operating Temperature Range | -30°C to +85°C |
Typical Applications
- Mainstream IP Security Surveillance Cameras and Smart City Systems
- Automotive Dashcams, Driver Assistance Systems (ADAS), and Drive Recorders
- Smart Home Video Doorbells, Security Cameras, and IoT Vision Devices
- Intelligent Transportation Systems (ITS) and Automatic License Plate Recognition (ANPR)
- Embedded Industrial Inspection, AI Vision Modules, and Robotics
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the optical format and pixel size of the IMX307LQD‑C?
A: IMX307LQD‑C adopts 1/2.8‑inch optical format (6.46 mm diagonal), 2.9 μm × 2.9 μm pixel, native Full HD 1080p resolution.
Q2: What interface does IMX307LQD‑C use?
A: MIPI CSI‑2 serial interface, supports 2‑Lane / 4‑Lane switching, RAW10 / RAW12 output for ISP and main SoC connection.
Q3: How is the low‑light night‑vision performance?
A: Built‑on Sony STARVIS back‑illuminated tech, SNR1s reaches 0.24 lux. It outputs clear color images under star‑level low‑light, with enhanced NIR infrared response.
Q4: What does suffix ‑C mean? Difference between IMX307LQD and IMX307LQD‑C?
A: Suffix ‑C means tape‑and‑reel packing for SMT mass‑production. IMX307LQD is tray‑packed. Chip die, electrical and optical specs are identical, functionally interchangeable.
Q5: Difference between IMX307LQD and IMX307LQR?
A: IMX307LQD:112‑Pin Ceramic BGA; IMX307LQR:110‑Pin Ceramic LGA. Core performance is consistent, but pinout & footprint differ. Not pin‑to‑pin compatible, PCB modification is required.
Q6: What are alternative compatible sensor models?
A: IMX290LQR: 2MP STARVIS, max 120fps, lower sensitivity. IMX327LQR: higher‑sensitivity 2MP STARVIS, better low‑light performance. None are direct drop‑in replacements; hardware and firmware adjustment are necessary.
Q7: How to get datasheet, pin definition and bulk quotation?
A: Please submit quick inquiry form to get official datasheet, design reference, stock status and volume price.
