IMX327LQR-C
IMX327LQR-C
| Part Number | IMX327LQR-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 2.13 MP Full HD Color CMOS Image Sensor, STARVIS Technology, Ultra‑High Sensitivity, 110‑Pin Ceramic LGA, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

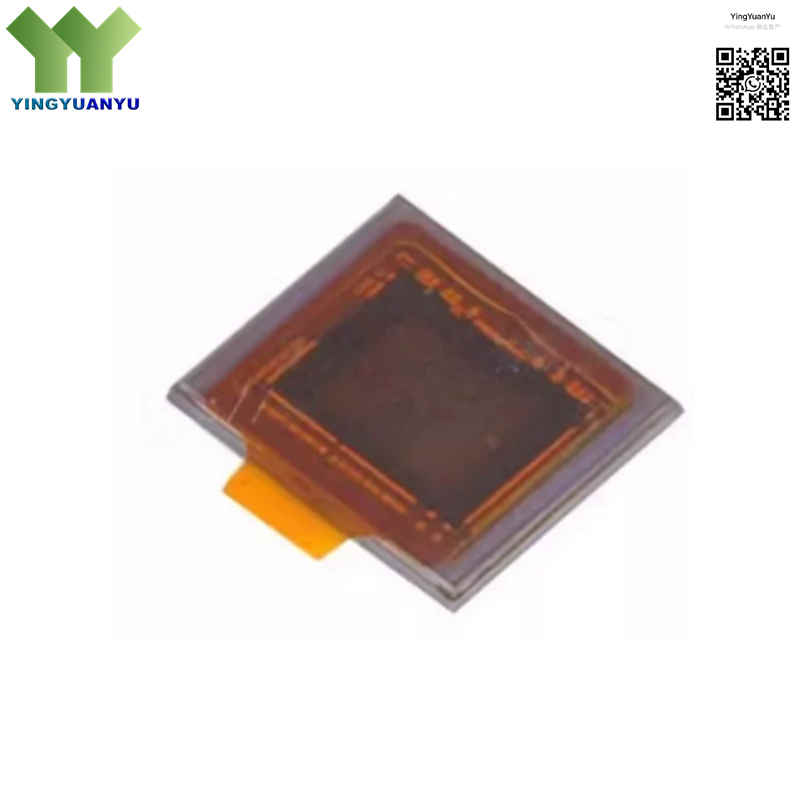

The IMX327LQR‑C is a diagonal 6.46 mm (Type 1/2.8) 2.13‑Megapixel Full‑HD CMOS image sensor based on Sony STARVIS back‑illuminated pixel technology. It delivers excellent star‑light low‑light performance, DOL‑HDR wide dynamic range and enhanced NIR response. Supports Sub‑LVDS and MIPI CSI‑2 dual‑interface output, max 1080p@60fps, widely used for high‑end surveillance, dashcam, ITS and industrial vision.
Core Advantages
Ultra‑High STARVIS Low‑Light Sensitivity
Back‑illuminated pixel architecture improves light collection, achieves outstanding imaging under star‑grade low‑light environments.
DOL‑HDR Multi‑Exposure Technology
Digital overlap HDR eliminates motion ghost artifacts, retains details for bright highlights and dark shadow areas.
Full HD 1080p 60fps High Frame Rate
Max 60fps@1080p output, meets real‑time monitoring and AI vision algorithm processing requirements.
Dual‑Interface Switchable Output
Supports Sub‑LVDS and MIPI CSI‑2 (2/4‑lane) with RAW10 / RAW12 format, compatible with mainstream ISP and SoC chips.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 110‑Pin Ceramic LGA (Land Grid Array) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 327L Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Total Array Size | 1945 (H) x 1109 (V) |
| Active Array Size | 1945 (H) x 1097 (V) approx. 2.13 Megapixels (Full HD 1080p) |
| Recommended Recording Pixels | 1920 (H) x 1080 (V) approx. 2.07 Megapixels |
| Optical Format | Type 1/2.8 inch (Diagonal 6.46 mm) |
| Pixel Size | 2.9 µm (H) x 2.9 µm (V) |
| Maximum Frame Rate | 60 fps @ Full HD 1080p (1920 x 1080) |
| Output Interface | Sub‑LVDS Serial / MIPI CSI‑2 (2/4‑Lane) |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Shutter Type | Rolling Shutter, Variable Electronic Shutter |
| WDR Mode | DOL‑HDR Supported |
| NIR Sensitivity | Enhanced Near‑Infrared Response for IR Night Vision |
| Minimum Illumination | 0.18 lux (SNR1s) |
| Supply Voltage | 2.9V (Analog), 1.8V (Interface), 1.2V (Digital Core) |
| Temperature Grade | Surveillance‑Industrial Grade; Performance guarantee:‑10℃ ~ +60℃, Device operating:‑30℃ ~ +85℃ |
| Operating Temperature Range | -30°C to +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Output Data Format | RAW10, RAW12 |
Typical Applications
- High‑End IP Security Surveillance Cameras and Starlight Night‑Vision Cameras
- Automotive Dashcams, Driver Assistance Systems (ADAS), and Drive Recorders
- Intelligent Transportation Systems (ITS) and Automatic License Plate Recognition (ANPR)
- Smart Home Video Doorbells, Outdoor Security Systems, and IoT Cameras
- Industrial Inspection, AI Edge Vision Terminals, and Robotics
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix ‑C mean for IMX327LQR‑C?
A: Suffix ‑C means tape‑and‑reel packaging for SMT mass‑production. IMX327LQR without ‑C is tray‑packed. Chip electrical and optical parameters are fully identical.
Q2: Difference between IMX327LQR and IMX327LQR1?
A: Same core performance and pinout. IMX327LQR: without anti‑reflection glass. IMX327LQR1: built‑in double‑sided anti‑reflection protective glass. Hardware pin‑to‑pin compatible.
Q3: What is the main difference between IMX327LQR‑C and IMX290LQR‑C?
A: Both are STARVIS 2MP 110‑pin LGA sensors. IMX327LQR‑C has better low‑light sensitivity (0.18 lux SNR1s). IMX290LQR‑C supports max 1080P@50fps frame rate. Pin‑to‑pin compatible, firmware adjustment required.
Q4: Difference between IMX327LQR‑C and IMX307LQR‑C?
A: Same 110‑pin LGA package, pin‑compatible hardware. IMX327LQR‑C achieves higher star‑light sensitivity. IMX307LQR‑C is cost‑balanced version. Drop‑in hardware replacement is available, firmware tuning is mandatory.
Q5: What are pixel specifications of IMX327LQR‑C?
A: 1/2.8 inch optical format, 2.9μm pixel size. Total pixels 1945 × 1109; effective pixels 1945 × 1097; recommended output 1920×1080 Full HD.
Q6: What output interfaces does IMX327LQR‑C support?
A: Dual interfaces: Sub‑LVDS serial and MIPI CSI‑2 (2/4‑lane). Output format RAW10 / RAW12, selectable by register configuration.
Q7: Is IMX327LQR‑C commercial grade?
A: Surveillance‑industrial grade. Image performance guaranteed ‑10℃ ~ +60℃; chip can operate from ‑30℃ to +85℃ without image‑spec warranty.
Q8: Can IMX327LQR‑C directly replace IMX327LQR1‑C?
A: Pin‑to‑pin compatible. Notice: IMX327LQR‑C has no built‑in AR‑coated glass, external IR‑cut filter must be added in optical path.
Q9: Where to get datasheet and bulk quotation?
A: Submit quick inquiry form for official datasheet, pin definition, stock status and volume pricing.
