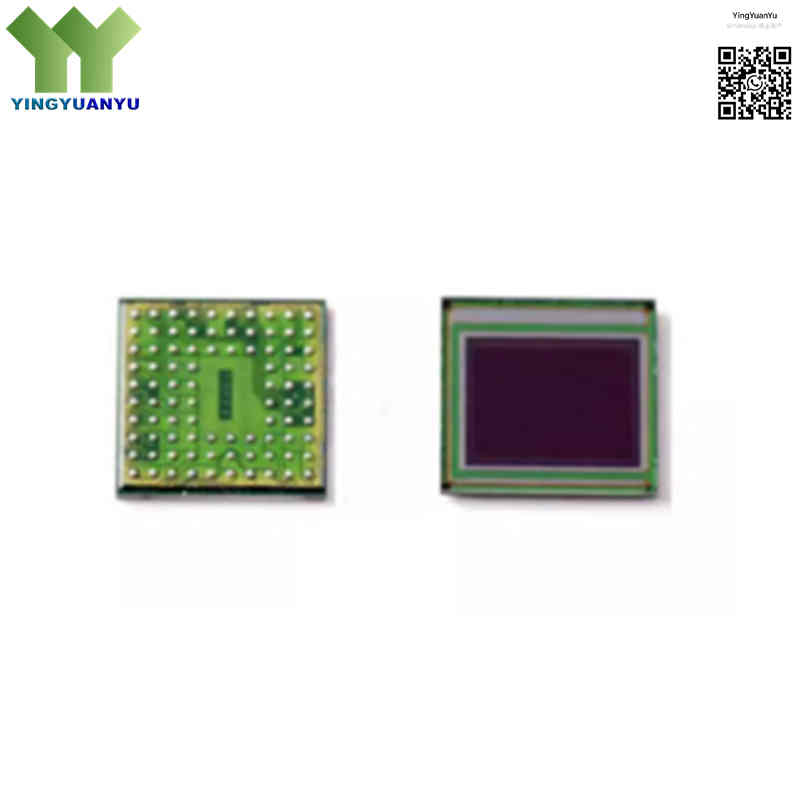

IMX335LQN-C
IMX335LQN-C
| Part Number | IMX335LQN-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 5.14 Megapixel Color CMOS Image Sensor, STARVIS™ Technology, MIPI CSI‑2 Interface, 72‑pin CSP‑LGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX335LQN‑C is Sony STARVIS™ 1/2.8‑inch 5.14MP back‑illuminated CMOS image sensor. It delivers excellent low‑light sensitivity and DOL‑HDR high dynamic‑range performance, supporting up to 60fps 10‑bit 5MP output via MIPI CSI‑2 2/4‑lane interface. Housed in compact 72‑pin CSP‑LGA SMD package. This is commercial‑grade device, not AEC‑Q100 automotive qualified; suitable for consumer dashcams but prohibited for vehicle safety‑critical systems.
Core Advantages
STARVIS™ Back‑Illuminated Pixel
Superior low‑light & near‑infrared sensitivity compared with front‑side illuminated CMOS sensors.
DOL‑HDR High Dynamic Range
Digital overlap HDR preserves details under strong backlight and high‑contrast scenes.
5.14MP High‑Speed Output
2592 × 1944 resolution; up to 60fps(10‑bit) for surveillance and fast‑moving object capture.
Flexible MIPI Interface
2‑lane /4‑lane configurable MIPI CSI‑2, optimized power consumption for miniature camera modules.
Flexible Readout & Gain Adjustment
Supports all‑pixel scan, binning, window cropping; analog gain 0‑30dB with 0.3dB fine step for image tuning.
Key Specifications
| Brand | Sony Semiconductor Solutions |
|---|---|
| RoHS Status | Lead‑Free / RoHS Compliant |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 72‑pin CSP‑LGA |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | IMX335LQN‑C |
| Active Pixel Array | 2592 (H) x 1944 (V) approx. 5.14 Megapixels |
| Optical Format | 1/2.8 Inch (Diagonal 6.52 mm) |
| Pixel Size | 2.0 μm x 2.0 μm |
| Maximum Frame Rate | 60 fps @ 5MP (10‑bit) / 30 fps @ 5MP (12‑bit) |
| Output Interface | MIPI CSI‑2 (2‑lane / 4‑lane) |
| Control Bus | I²C Serial Control |
| Input Reference Clock | 6‑27 MHz / 37.125 MHz / 74.25 MHz |
| Power Supply Voltage | Analog: 2.9 V, Digital: 1.2 V, I/O: 1.8 V |
| Typical Power Consumption | ~320 mW @30fps 4MP mode |
| Absolute Maximum Operating Temperature | -30°C to +85°C |
| Guaranteed Performance Temperature | -10°C to +60°C |
| Storage Temperature | -40°C ~ +85°C |
| Readout Mode | All‑pixel scan, 2×2 Binning, Window Cropping, Reverse readout |
Typical Applications
- High‑Resolution IP Surveillance Cameras and CCTV Systems
- Consumer‑grade Automotive Dashcams (non‑safety‑critical)
- Smart Home Security Cameras and HD Video Doorbells
- Industrial Machine Vision and Factory Automation
- AI Edge Vision Modules and Intelligent Traffic Systems (ITS)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the resolution and optical format of the IMX335LQN‑C?
A: 5.14‑megapixel (2592 × 1944 active pixels), 1/2.8‑inch optical format, 2.0 µm pixel size.
Q2: Does IMX335LQN‑C adopt STARVIS technology?
A: Yes. Sony STARVIS™ back‑illuminated sensor, improves visible and NIR sensitivity for superior low‑light imaging.
Q3: What interface does IMX335LQN‑C support?
A: Configurable 2‑lane / 4‑lane MIPI CSI‑2 for data output; I²C bus for register configuration.
Q4: What is the difference between IMX335LQN‑C and IMX335LQN‑G?
A: IMX335LQN‑C: RGB‑Bayer with IR‑cut filter for standard color imaging. IMX335LQN‑G: clear‑filter for infrared application. Same pinout, optical filter differs, not direct drop‑in replacement.
Q5: Is IMX335LQN‑C AEC‑Q100 automotive qualified?
A: No, commercial grade. Fit for consumer dashcam, not allowed for vehicle safety‑critical systems.
Q6: What are alternative sensors for IMX335LQN‑C?
A: IMX335LQN‑G (clear filter variant); IMX327‑LQN is 2MP STARVIS alternative. None are pin‑to‑pin compatible, hardware redesign is required.
Q7: Why do some platforms list BGA‑88 as package?
A: Bare chip IMX335LQN‑C is 72‑pin CSP‑LGA. BGA‑88 belongs to finished camera module, not the raw sensor chip.
Q8: How to get datasheet, pinout or volume quotation?
A: Submit Quick Inquiry form for official datasheets, CAD footprint, stock check and bulk‑order pricing.
