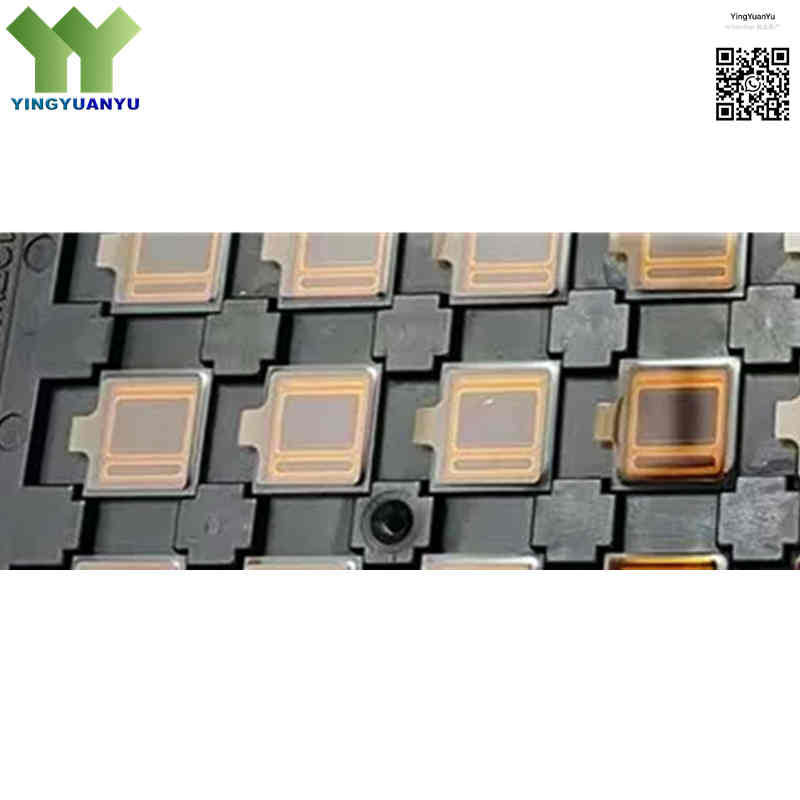

IMX390CQV-W
IMX390CQV-W
| Part Number | IMX390CQV-W |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.7″ 2.45 MP Automotive Grade Color CMOS Image Sensor, Simultaneous HDR & LFM, Plastic BGA‑96 Package with protective cover glass. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX390CQV‑W is Sony’s 2.45MP automotive‑grade CMOS image sensor with 1/2.7‑inch optical format. It supports simultaneous HDR and LFM to eliminate LED flicker under high‑contrast lighting. Output 1080P up to 60fps over MIPI CSI‑2. AEC‑Q100 Grade 2 and ISO 26262 ASIL‑C certified for ADAS, surround‑view and automotive mirror systems.
Core Advantages
Simultaneous HDR & LFM
Sony sub‑pixel architecture delivers up to 120dB dynamic range, suppresses LED flicker from traffic lights and vehicle lamps.
Vehicle‑Grade Certification
AEC‑Q100 Grade2 and ISO 26262 ASIL‑C qualified, operating range ‑40°C ~ +105°C for harsh automotive environments.
Superior Low‑Light Performance
High sensitivity, clear imaging at 0.1 lux, excellent SNR for night‑driving scenarios.
MIPI CSI‑2 High‑Speed Interface
Supports 2‑lane / 4‑lane MIPI CSI‑2, low‑latency connection for automotive ISP and SoC solutions.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 96‑Pin BGA |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 390C Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Active Array Size | 2017 (H) × 1217 (V) approx. 2.45 Megapixels |
| Optical Format | Type 1/2.7 inch (Diagonal 6.67 mm) |
| Pixel Size | 3.0 µm (H) × 3.0 µm (V) |
| Dynamic Range | 120 dB (HDR only); 110 dB when HDR+LFM simultaneous working |
| Maximum Frame Rate | 60 fps(10‑bit) / 40 fps(12‑bit) @ 1080p Full HD |
| Output Interface | MIPI CSI‑2 (2‑Lane / 4‑Lane) Serial Interface |
| Automotive Qualification | AEC‑Q100 Grade 2, ISO 26262 ASIL‑C Compliant |
| Operating Temperature Range | -40°C to +105°C |
| Minimum Illumination | 0.1 lux (Green channel) |
| Power Supply | Analog 2.9V, Digital 1.2V, Interface 1.8V |
Typical Applications
- Automotive Advanced Driver Assistance Systems (ADAS) and Autonomous Driving Sensing
- Electronic Mirrors (CMS ‑ Camera Monitor Systems / e‑Mirrors)
- Surround View Monitoring (SVM) and 360‑Degree Bird’s‑Eye View Camera Systems
- Front Sensing Cameras, Driver Monitoring Systems (DMS), and Automotive Dashcams
- Intelligent Transportation Systems (ITS) and Smart Traffic Vision Terminals
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is IMX390CQV‑W automotive qualified?
A: Yes. It is AEC‑Q100 Grade2 certified with ISO 26262 ASIL‑C functional‑safety support. Operating temperature ranges from -40°C to +105°C for vehicle‑grade applications.
Q2: What is the LFM feature on IMX390CQV‑W?
A: LFM eliminates LED flicker from traffic lights and vehicle lamps. Dynamic range drops to 110 dB when HDR and LFM are enabled together; 120 dB for HDR‑only mode.
Q3: What are the pixel and dynamic‑range specifications?
A: Effective resolution is 2017 × 1217 (2.45 MP). Max 120 dB dynamic range (HDR only), 110 dB with HDR+LFM active.
Q4: What is the difference between IMX390CQV‑W and IMX390CQV?
A: The ‑W suffix means built‑in protective cover glass. IMX390CQV has no cover glass. They are pin‑compatible; re‑check optical path when swapping.
Q5: Can IMX390CQV‑W directly replace IMX290NQV?
A: Not pin‑to‑pin compatible. IMX290NQV lacks LFM function. PCB hardware and firmware modification are required for replacement.
Q6: What alternative sensors match IMX390CQV‑W performance?
A: Comparable parts: Sony IMX456, Onsemi AR0234AT. None are pin‑compatible. PCB and firmware redesign is needed for migration.
Q7: What frame‑rate does IMX390CQV‑W support?
A: 60 fps (10‑bit), 40 fps (12‑bit) under Full‑HD resolution via MIPI CSI‑2 output.
Q8: Where can I get datasheet and quotation?
A: Use the Quick Inquiry form to request datasheets, reference design documents, samples and bulk‑price offers.
