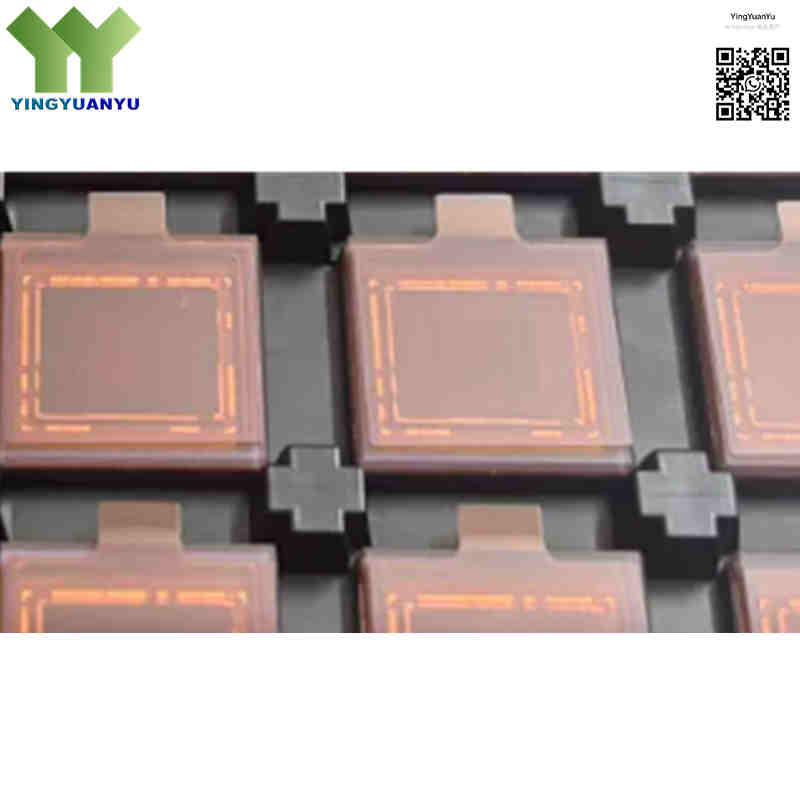

IMX832-AQR1-C
IMX832-AQR1-C
| Part Number | IMX832-AQR1-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | Pregius S Color CMOS Global Shutter Image Sensor, 5MP, SLVS‑EC Interface, LGA‑144 Ceramic Package for Industrial Machine Vision. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX832‑AQR1‑C belongs to Sony Pregius S series, a 1/1.8‑inch approximately 5‑megapixel back‑illuminated global‑shutter CMOS image sensor. It eliminates motion smear distortion for moving‑object capture, equipped with SLVS‑EC high‑speed serial interface, mainly designed for industrial cameras and embedded vision inspection systems.
Core Advantages
Pregius S BSI Global Shutter Architecture
Adopts Sony back‑illuminated global shutter pixel design, effectively removes rolling smear artifacts for high‑speed moving object shooting.
5MP High‑Resolution Imaging
2448 × 2048 effective pixels with 3.45 μm pixel size, delivers sharp image quality for industrial inspection and measurement applications.
SLVS‑EC High‑Speed Serial Interface
High‑speed SLVS‑EC output, compatible with mainstream industrial FPGA vision platforms, supports high frame‑rate data transmission.
Excellent Low‑Light Sensitivity
Great light‑sensing performance under dim‑light conditions, suitable for high‑speed detection and semiconductor defect‑scenario deployment.
Key Specifications
| Brand | Sony |
|---|---|
| Series | Pregius S |
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | LGA Ceramic Package |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 832C Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Sensor Type | Back‑Illuminated CMOS Global Shutter Image Sensor (Pregius S) |
| Optical Size | 1/1.8‑inch (Diagonal 8.9 mm) |
| Effective Pixels | Approx 5MP, 2448 × 2048 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Shutter Type | Global Shutter |
| Output Interface | SLVS‑EC High‑Speed Serial Interface |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Frame Rate | Full‑resolution up to dozens‑hundreds FPS (depends on bit‑depth setting) |
| Operating Temperature Range | -30°C to +85°C |
Typical Applications
- High‑speed material sorting & barcode / QR‑code snapshot capture on conveyor belts
- PCB / AOI inspection, printed‑circuit‑board visual checking and component defect detection
- Robotic guidance & grabbing, dynamic positioning for robot machine‑vision systems
- Semiconductor surface defect inspection under clean‑room & low‑light conditions
- Intelligent traffic monitoring, high‑speed license‑plate snapshot capture
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are the key features of the IMX832‑AQR1‑C image sensor?
A: IMX832‑AQR1‑C is Sony Pregius S BSI global‑shutter CMOS sensor. It uses SLVS‑EC high‑speed output, removes motion smear, provides 5MP resolution and good low‑light performance for industrial vision.
Q2: What application scenarios is IMX832‑AQR1‑C suitable for?
A: Suitable for industrial AOI inspection, robot positioning, semiconductor defect detection, high‑speed sorting and traffic snapshot equipment.
Q3: What interface does IMX832‑AQR1‑C adopt?
A: It adopts SLVS‑EC high‑speed serial interface for industrial FPGA platforms. It is NOT MIPI CSI‑2 interface.
Q4: What is the difference between IMX832‑AQR‑C and IMX832‑AQR1‑C?
A: Same silicon die and LGA‑144 pinout. IMX832‑AQR1‑C has double‑sided anti‑reflection cover‑glass, raising light‑absorption efficiency by ~6.4 % for better backlight performance. Hardware pins are compatible; re‑check optical matching before replacement.
Q5: Are there alternative replacement parts for IMX832‑AQR1‑C?
A: You may select other Sony Pregius‑S global shutter sensors as performance alternatives. Most alternatives differ in pixel size, optical format and interface. They cannot be drop‑in replacement; hardware and firmware changes are required.
Q6: Can IMX832‑AQR‑C directly replace IMX832‑AQR1‑C on existing PCB?
A: PCB footprint and pin definition match, chip can be soldered directly. But cover‑glass optical property differs, you need to re‑evaluate lens and anti‑reflection requirements for your project.
Q7: What layout risks should I notice for IMX832?
A: SLVS‑EC differential traces need strict impedance control. Poor PCB layout will lead to frame loss or unstable image output. Pay attention to optical matching when switching different suffix versions.
Q8: How can I get datasheet, samples or bulk price for IMX832‑AQR1‑C?
A: Please fill in Quick Inquiry form for datasheet, samples, reference design and bulk quotation.
