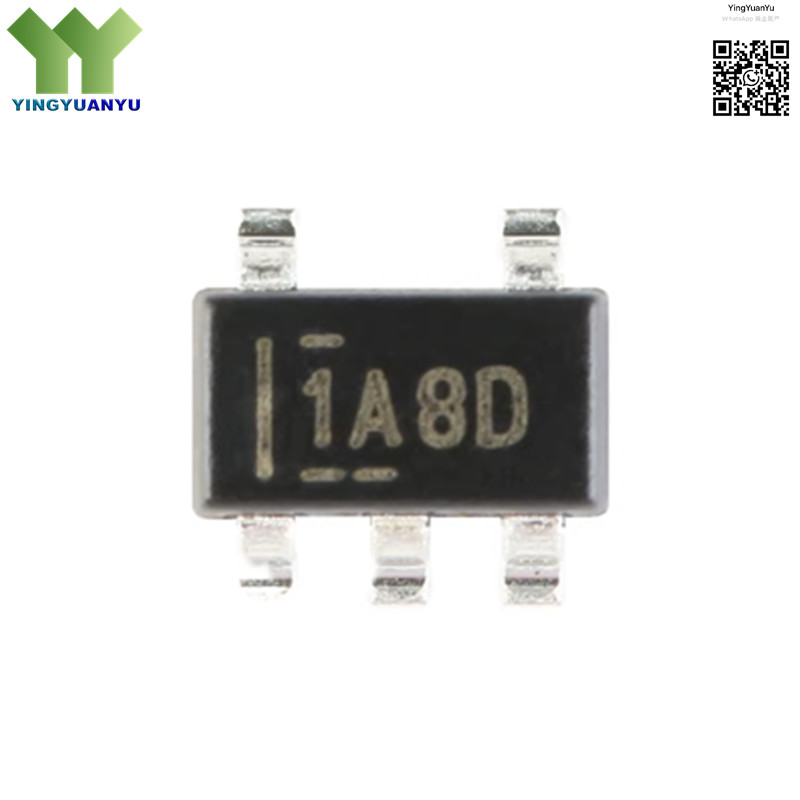

INA180A2IDBVR
INA180A2IDBVR
| Part Number | INA180A2IDBVR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Current Sense Amplifiers; High-Side/Low-Side Current Shunt Monitors |
| Description | 50V Zero-Drift Current Sense Amplifier, 50V/V Gain, High Precision, SOT-23-5 Package |
Product Overview
The INA180A2IDBVR is a high-precision, zero-drift current sense amplifier designed for accurate unidirectional current measurement in high-voltage industrial, automotive, and embedded systems. It supports a wide common-mode voltage range from -4V to 110V, enabling both high-side and low-side shunt current monitoring with exceptional accuracy and low offset voltage. The device features a fixed gain of 50V/V, wide bandwidth, and low quiescent current for high-efficiency operation, with robust ESD protection and noise immunity for reliable performance in harsh environments. Its zero-drift architecture ensures long-term stability and minimal error across temperature variations. Housed in a tiny SOT-23-5 surface-mount package, it is ideal for space-constrained power management and current sensing designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Gain | 50 V/V (Fixed) |
| Common-Mode Voltage | -4V to 110V |
| Package Type | SOT-23-5 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Side & Low-Side Current Monitoring
- Power Management & Battery Protection Systems
- Motor Control & Industrial Inverters
- Power Supplies & DC-DC Converters
- Automotive Electronics & BMS Systems
- IoT & Portable Equipment Current Sensing
- Over-Current Protection Circuits
- Industrial Automation & Test Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
