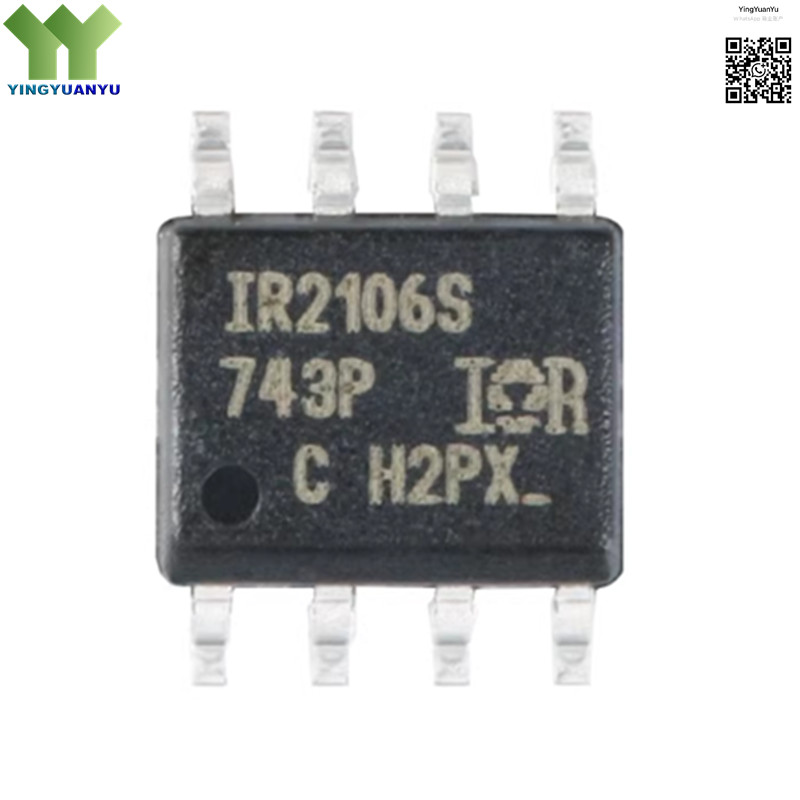

IR2106STRPBF
IR2106STRPBF
| Part Number | IR2106STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 600V High-Side Low-Side Gate Driver, Dual Channel, Fast Switching, SOIC-8 Package |
Product Overview
The IR2106STRPBF is a high-performance, dual-channel gate driver IC designed for driving N-channel power MOSFETs and IGBTs in high-voltage, high-speed switching applications. It supports both high-side and low-side driving with a voltage rating up to 600V, featuring integrated bootstrap diode for simplified high-side operation, matched propagation delays, and fast rise/fall times for efficient power conversion. The device offers robust dv/dt immunity, under-voltage lockout protection, and high output current capability to drive large power switches reliably. Ideal for motor drives, power inverters, and switch-mode power supplies, it provides stable and efficient drive performance in industrial and automotive environments. Housed in a compact SOIC-8 surface-mount package, it enables space-efficient PCB designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Dual Gate Driver |
| Voltage Rating | 600V |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Motor Control & Inverter Drives
- Switch-Mode Power Supplies (SMPS)
- Uninterruptible Power Supplies (UPS)
- Solar Inverters & Power Converters
- Industrial Automation Systems
- Class D Audio Amplifiers
- High-Voltage MOSFET/IGBT Drive Circuits
- Lighting Ballast & Power Control
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
