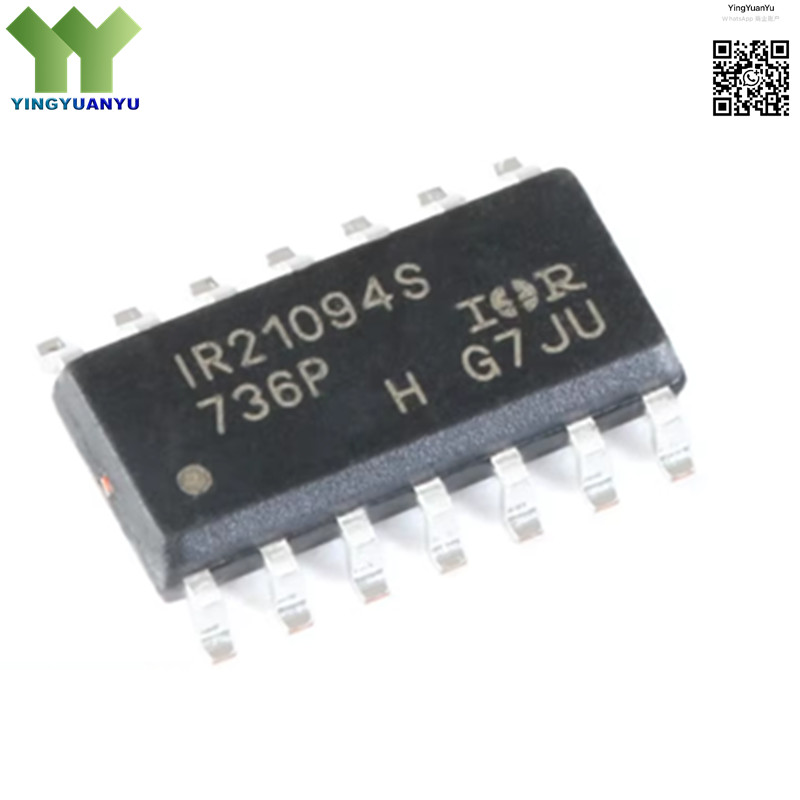

IR21094STRPBF
IR21094STRPBF
| Part Number | IR21094STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 600V High-Side Low-Side Gate Driver, 2A Peak Output, High Frequency, SOIC-14 Package |
Product Overview
The IR21094STRPBF is a high-performance, high-frequency 600V dual-channel gate driver IC designed for driving N-channel power MOSFETs and IGBTs in half-bridge configurations. It features 2A peak output current, ultra-fast switching speed, matched propagation delays, and an integrated bootstrap diode for simplified circuit design. The device provides under-voltage lockout protection, high dv/dt immunity, and excellent noise immunity for reliable operation in high-frequency power conversion systems. With industrial-grade reliability and wide operating temperature range, it delivers stable performance in harsh environments. Housed in a compact SOIC-14 surface-mount package, it enables high-density PCB design and efficient integration.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Gate Driver |
| Voltage Rating | 600V |
| Output Current | 2A Peak |
| Package Type | SOIC-14 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Frequency Switch-Mode Power Supplies (SMPS)
- Half-Bridge & Full-Bridge DC-DC Converters
- Motor Control Drives & Industrial Automation
- Class D Audio Amplifiers
- LED Lighting Drivers & Electronic Ballasts
- Power Inverters & Battery Charging Systems
- High-Voltage MOSFET/IGBT Drive Circuits
- Industrial Power Conversion & Control Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
