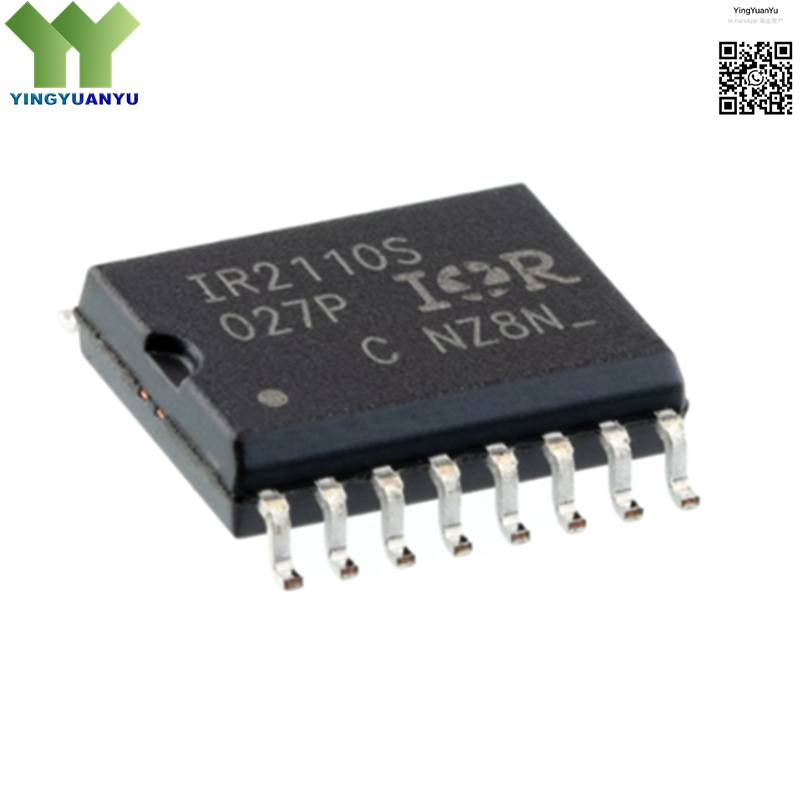

IR2110STRPBF
IR2110STRPBF
| Part Number | IR2110STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Power Management ICs; High and Low Side Gate Driver |
| Description | High Voltage High Speed Power MOSFET/IGBT Gate Driver, Dual Channel, 2A,10V ~ 20V, SOIC-16-300mil Package |
Product Overview
The IR2110STRPBF is a high-performance, high-voltage high-speed dual channel gate driver IC designed for driving both high-side and low-side power MOSFETs and IGBTs. It features advanced bootstrap technology for high-side drive, high peak output current, fast switching speed, and robust noise immunity. The device offers wide operating voltage range, under-voltage lockout protection, and matched propagation delays for both channels, making it ideal for motor drives, inverters, switching power supplies, and other high-power switching applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies (IR) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-16-300mil |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | IR2110S |
| Output Current | 2A Peak |
| Supply Voltage | 10V ~ 20V |
| Off Voltage | 600V |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- AC Motor Drives & Inverters
- Switching Mode Power Supplies (SMPS)
- Uninterruptible Power Supplies (UPS)
- Solar Inverters & Renewable Energy Systems
- Electric Vehicle Power Control
- Industrial Welding Equipment
- High-Power LED Drivers
- Class D Audio Amplifiers
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
