IR2113STRPBF
IR2113STRPBF
| Part Number | IR2113STRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Gate Driver ICs; Half-Bridge Gate Driver |

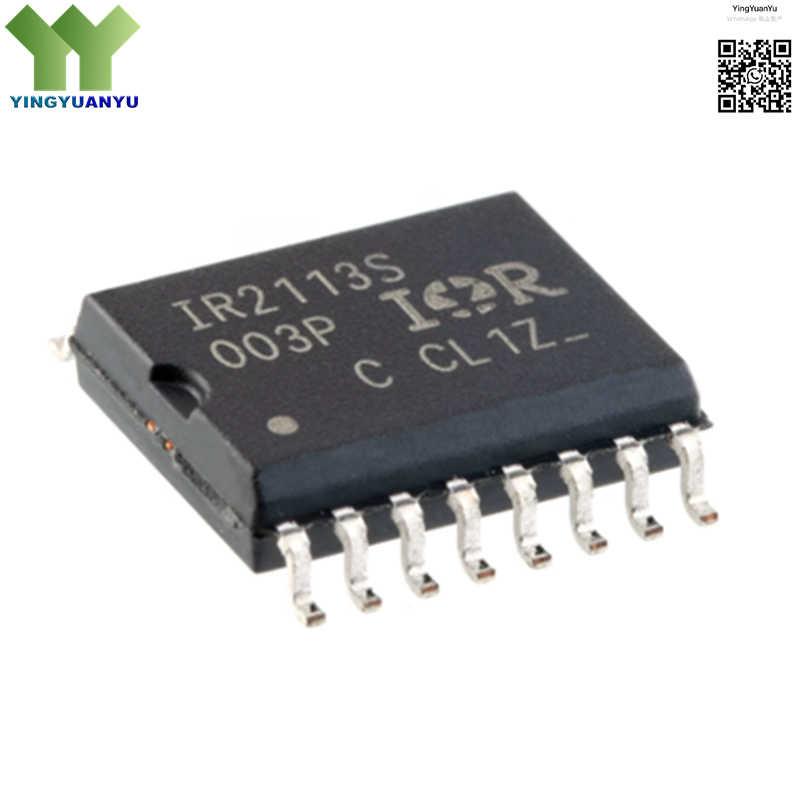

| Description | 600V High and low side half-bridge MOSFET/IGBT gate driver, SOIC-16-300mil SMD surface mount package |
Product Overview
The IR2113STRPBF is a popular half-bridge gate driver IC manufactured by Infineon Technologies. It integrates high-side and low-side independent drive channels with built-in bootstrap diode, featuring high drive current, fast switching speed and comprehensive protection features. The device simplifies half-bridge circuit design with fewer peripheral components and delivers stable driving performance for MOSFET and IGBT power switches. It is extensively adopted in switching power supplies, inverters, BLDC motor drives and various industrial power conversion equipment.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-16-300mil |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | IR2113S Marking |
| Channel Configuration | High Side + Low Side Half Bridge |
| Supply Voltage (Vcc) | 10V ~ 20V |
| Peak Output Drive Current | 250mA Source / 500mA Sink |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- BLDC Brushless DC Motor Controllers
- Half-Bridge & Full-Bridge Inverter Modules
- Switch Mode Power Supplies (SMPS)
- UPS Uninterruptible Power Supplies
- Industrial Frequency Conversion Equipment
- DC-AC Solar Micro Inverters
- High Frequency Induction Heating Circuits
- General MOSFET/IGBT Half-Bridge Driving
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is IR2113STRPBF RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the package form of this driver IC?
A: It comes with standard SOIC-16-300mil surface mount package. - Q: Can I apply for engineering samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the recommended operating supply voltage range?
A: Operating supply voltage ranges from 10V to 20V.
