IR2136STRPBF
IR2136STRPBF
| Part Number | IR2136STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; 3-Phase MOSFET/IGBT Gate Drivers |
| Description | 600V 3-Phase High-Side Low-Side Gate Driver, Integrated Bootstrap Diodes, SOIC-28 Package |
Product Overview

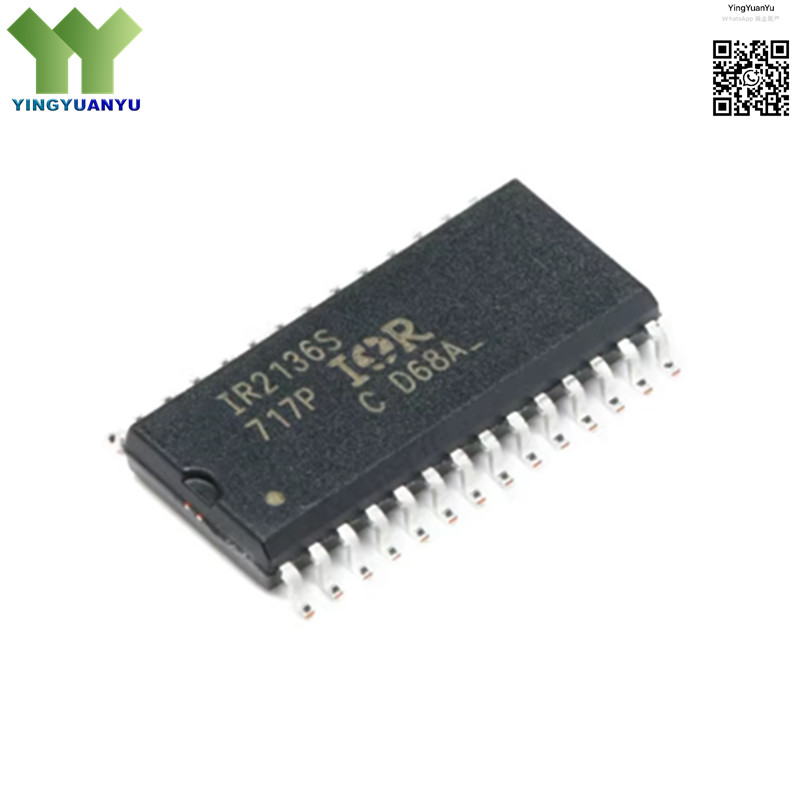

The IR2136STRPBF is a fully-integrated 3-phase gate driver IC designed for driving N-channel power MOSFETs and IGBTs in 3-phase inverter and motor drive applications. It supports up to 600V high-side operation, features three independent high-side/low-side driver channels with matched propagation delays, and includes built-in bootstrap diodes to simplify external circuitry. The device provides comprehensive protection including under-voltage lockout, over-current shutdown, and fault reporting, ensuring reliable operation in industrial power systems. With high output current capability, fast switching speed, and excellent noise immunity, it is optimized for high-efficiency 3-phase power conversion. Housed in a compact SOIC-28 surface-mount package, it enables space-saving integration for motor drives and inverters.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | 3-Phase High-Side / Low-Side Gate Driver |
| Voltage Rating | 600V |
| Channels | 3 Independent Channels (6 Outputs) |
| Package Type | SOIC-28 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- 3-Phase AC Motor Drives & Inverters
- Brushless DC (BLDC) Motor Control
- Industrial Automation & Servo Drives
- Solar Inverters & Renewable Energy Systems
- Uninterruptible Power Supplies (UPS)
- EV/HEV Motor Control Systems
- 3-Phase Power Converters & Inverters
- HVAC Compressor & Fan Control
