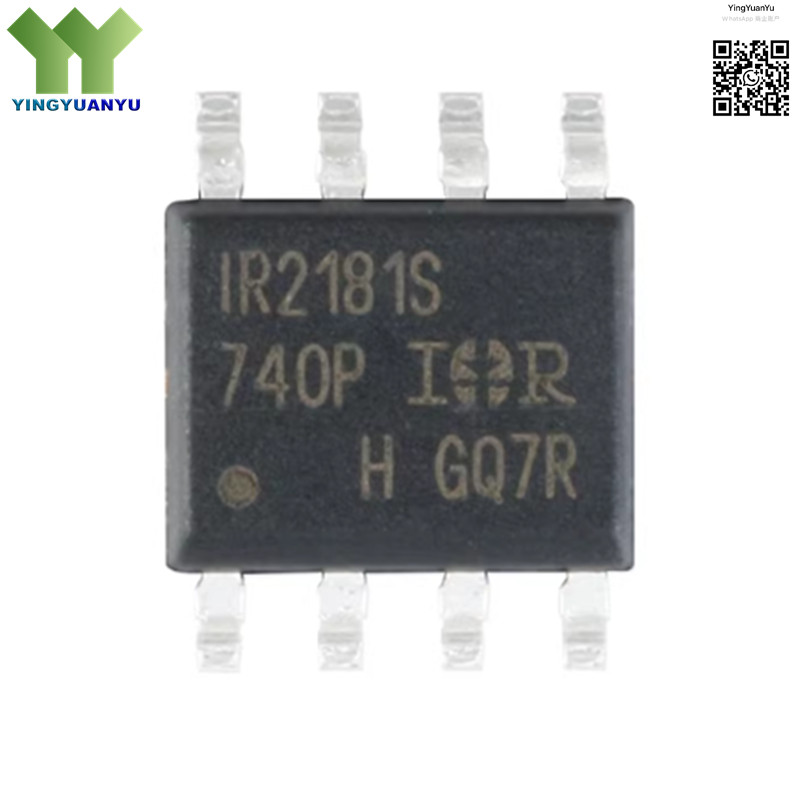

IR2181STRPBF
IR2181STRPBF
| Part Number | IR2181STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 600V High-Side Low-Side Gate Driver, 1.5A Output, High-Speed, SOIC-8 Package |
Product Overview
The IR2181STRPBF is a high-speed, high-voltage dual-channel gate driver IC designed for driving N-channel power MOSFETs and IGBTs in high-frequency power conversion applications. It supports up to 600V high-side operation, features 1.5A peak output current, matched propagation delays, and an integrated bootstrap diode for simplified circuit design. The device provides under-voltage lockout protection, high dv/dt immunity, and ultra-fast switching characteristics for efficient power control. With wide operating temperature range and robust reliability, it ensures stable performance in industrial and automotive power systems. Housed in a compact SOIC-8 surface-mount package, it enables high-density PCB integration.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Gate Driver |
| Voltage Rating | 600V |
| Output Current | 1.5A Peak |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Switch-Mode Power Supplies (SMPS)
- DC-DC Converters & Half-Bridge Inverters
- Motor Control & Industrial Automation
- Class D Audio Amplifiers
- Lighting Ballasts & LED Drivers
- High-Frequency Power Conversion Systems
- Battery Chargers & Power Inverters
- High-Voltage MOSFET/IGBT Drive Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
