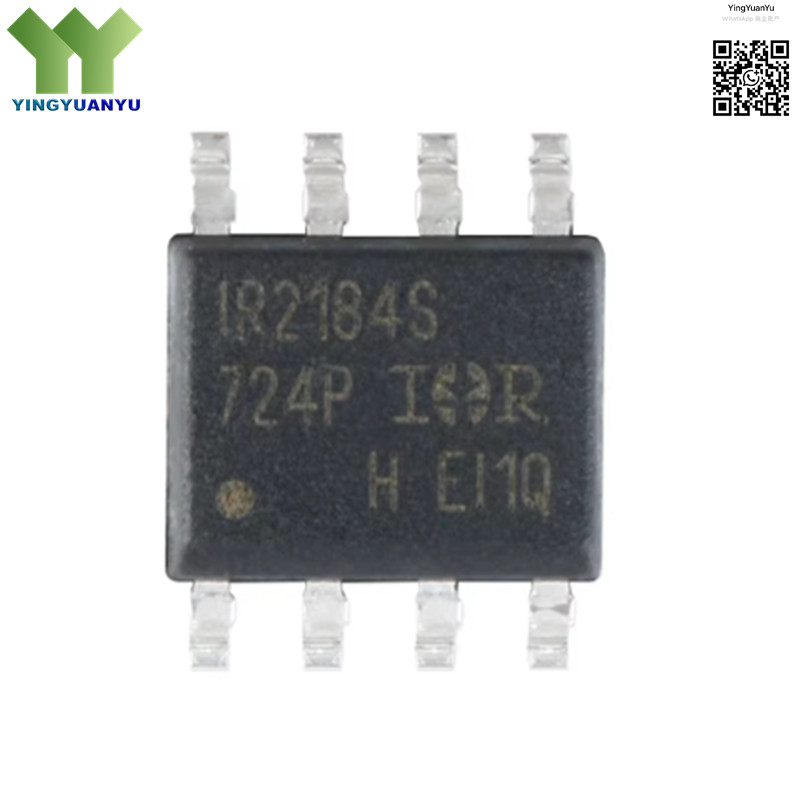

IR2184STRPBF
IR2184STRPBF
| Part Number | IR2184STRPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Gate Drivers; High-Side Low-Side MOSFET/IGBT Gate Drivers |
| Description | 600V High-Side Low-Side Gate Driver, 1.5A Peak Output, High-Speed Switching, SOIC-8 Package |
Product Overview
The IR2184STRPBF is a high-speed, high-performance dual-channel gate driver integrated circuit designed for driving N-channel power MOSFETs and IGBTs in high-frequency power conversion systems. It supports up to 600V high-side floating operation, features 1.5A peak output current, matched propagation delays, and an integrated bootstrap diode to simplify external circuitry. The device provides under-voltage lockout protection, high dv/dt noise immunity, and ultra-fast rise/fall times for optimal switching efficiency. Engineered for industrial-grade reliability and stable performance in harsh environments, it is ideal for high-frequency power electronics applications. Housed in a compact SOIC-8 surface-mount package, it enables space-efficient PCB integration and high-density design.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Infineon / IR |
| Driver Type | High-Side / Low-Side Gate Driver |
| Voltage Rating | 600V |
| Output Current | 1.5A Peak |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- High-Frequency Switch-Mode Power Supplies (SMPS)
- Half-Bridge & Full-Bridge DC-DC Converters
- Motor Control Drives & Industrial Automation
- Class D Audio Amplifiers
- LED Lighting Drivers & Electronic Ballasts
- Power Inverters & Battery Charging Systems
- High-Voltage MOSFET/IGBT Switching Circuits
- Industrial Power Control Systems
