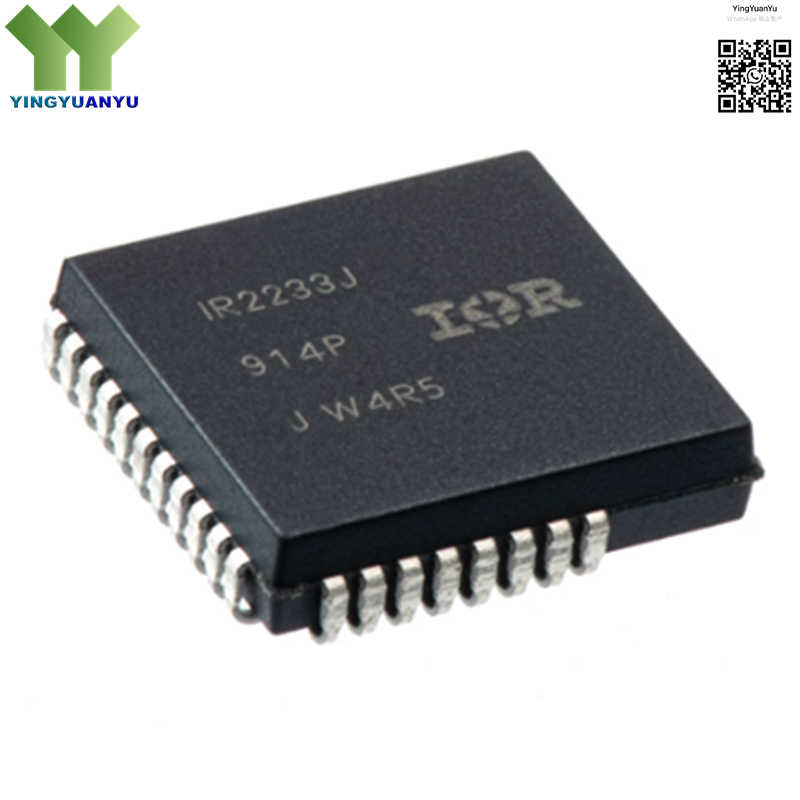

IR2233JTRPBF
IR2233JTRPBF
| Part Number | IR2233JTRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Gate Driver ICs; Three-Phase Half-Bridge Gate Driver |
| Description | 600V 3-phase high & low side gate driver for MOSFET and IGBT, PLCC-32(16.6×16.6) surface mount package |
Product Overview
The IR2233JTRPBF is an integrated three-phase half-bridge gate driver produced by Infineon Technologies. It integrates three independent high-side and low-side driver channels with internal bootstrap circuitry and under-voltage lockout protection. Featuring strong output driving capability and robust noise immunity, this IC greatly simplifies peripheral circuit layout for three-phase inverter designs and reliably drives power MOSFETs or IGBTs. It is widely adopted in BLDC motor controllers, frequency converters and various three-phase power conversion equipment.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | PLCC-32(16.6×16.6) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | IR2233J Marking |
| Driver Channel | 3 Phase (3 High-Side + 3 Low-Side) |
| Supply Voltage Range | 10V ~ 20V |
| Peak Output Current | 200mA Source / 420mA Sink |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Three-Phase BLDC Motor Drives
- AC Inverter & Frequency Converter Equipment
- Home Appliance Compressor Drivers
- Industrial Variable Speed Controllers
- Small Solar Three-Phase Inverters
- UPS and Power Conversion Systems
- HVAC Fan Motor Control Modules
- General Three-Phase Power Switch Driving
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
