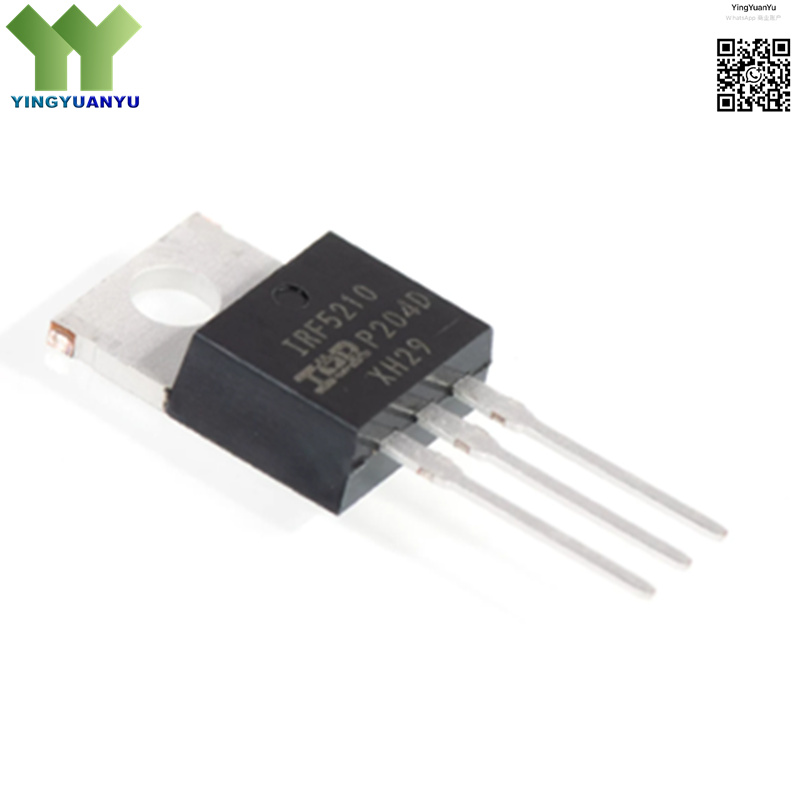

IRF5210PBF
IRF5210PBF
| Part Number | IRF5210PBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -100V, 40A,60 mΩ, TO-220AB Through Hole Package |
Product Overview
The IRF5210PBF is a high-performance P-channel HEXFET power MOSFET from Infineon Technologies. It features low on-state resistance, fast switching speed, high voltage capability, and excellent thermal performance. The device provides reliable operation, strong ruggedness, and low power dissipation, making it ideal for high-side switching, DC-DC converters, motor control, power supplies, and general-purpose power control systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies (IR) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRF5210 |
| Drain-Source Voltage (Vdss) | -100 V |
| Continuous Drain Current (Id) | -40 A |
| On-State Resistance (Rds(on)) | 60 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High-Side Power Switching Circuits
- DC-DC Converters & Voltage Regulators
- DC Motor Drive & Control Systems
- Switching Mode Power Supplies (SMPS)
- Battery Management & Protection Modules
- Industrial Power Control Equipment
- Uninterruptible Power Supplies (UPS)
- General Purpose P-Channel Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
