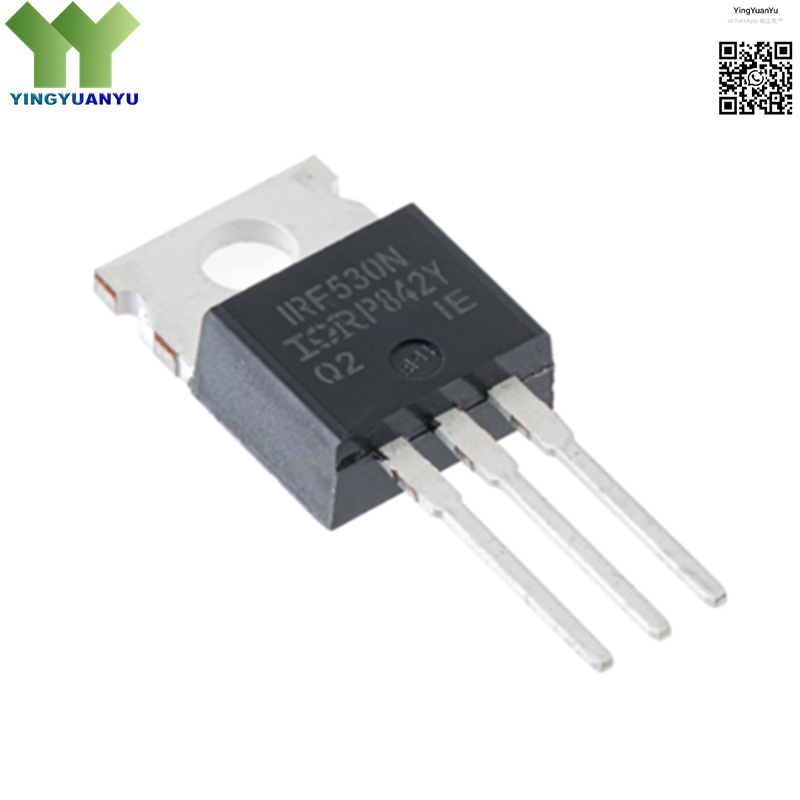

IRF530NPBF
IRF530NPBF
| Part Number | IRF530NPBF |
|---|---|
| Manufacturer | Infineon Technologies (International Rectifier) |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 100V, 17A,90 mΩ, TO-220AB Through-Hole Package |
Product Overview
The IRF530NPBF is a N-Channel Enhancement Mode Power MOSFET from Infineon Technologies, designed for high-efficiency power switching applications. It features low on-state resistance, fast switching speed, high voltage capability, and excellent thermal performance. The device provides reliable operation, high surge current capability, and ruggedness, making it suitable for industrial power supplies, motor control, DC-DC converters, and general-purpose power switching systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies (IR) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRF530N |
| Drain-Source Voltage (Vdss) | 100 V |
| Continuous Drain Current (Id) | 17 A |
| On-State Resistance (Rds(on)) | 90 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Switching Mode Power Supplies (SMPS)
- DC-DC Converters & Inverters
- DC Motor Drive & Control Systems
- Industrial Power Control Equipment
- Solar Inverters & Renewable Energy Systems
- Uninterruptible Power Supplies (UPS)
- Power Tools & Industrial Machinery
- General Purpose Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
