IRF530NSTRLPBF
IRF530NSTRLPBF
| Part Number | IRF530NSTRLPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel enhancement mode power MOSFET, low Rds(on) 90mΩ,100V,17A, D2PAK surface mount package |
Product Overview
The IRF530NSTRLPBF is a widely used N-channel power MOSFET manufactured by Infineon Technologies. It features low on-state resistance, excellent switching performance and good thermal dissipation capability to reduce power loss during operation. Adopting compact DPAK SMD package, this device is convenient for automated PCB assembly and fits dense circuit layout. It is extensively applied in DC-DC converters, load switches, motor drives and various general-purpose switching power circuits.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | D2PAK |
| Mounting Type | Surface Mount (SMD) |

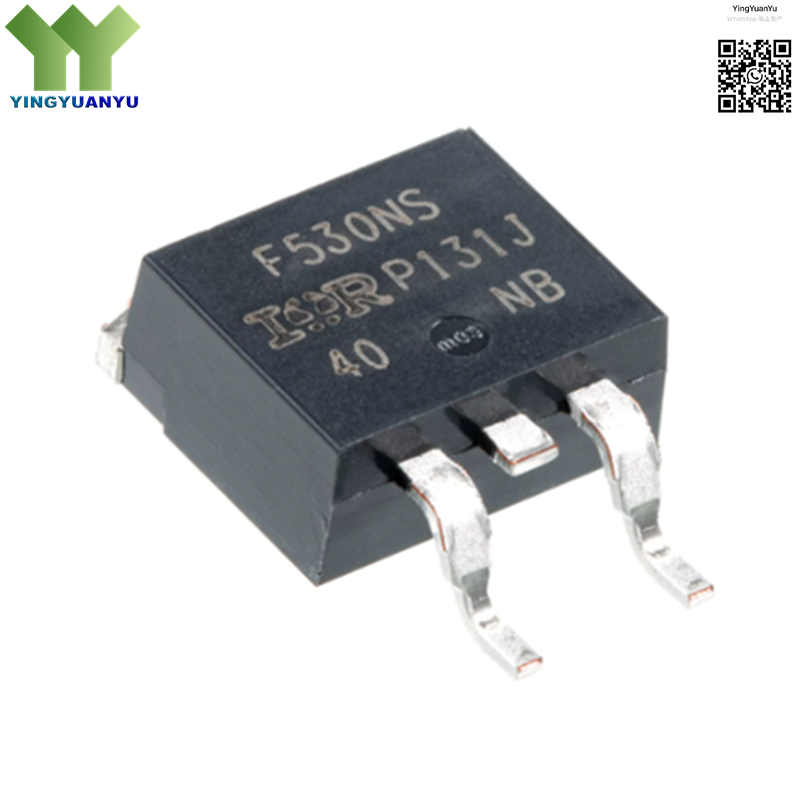

| Surface Marking / Silkscreen | F530NS Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Id) | 17 A |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Switching Converter Modules
- Battery Powered Load Switching
- Small DC Motor Control Circuits
- LED Driver Power Supplies
- Industrial Low Voltage Power Control
- Audio Power Amplifier Auxiliary Circuit
- Uninterruptible Power Auxiliary Switches
- General High Frequency Switching Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is IRF530NSTRLPBF RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel type of this MOSFET?
A: It is N-channel enhancement type power MOSFET. - Q: Can I request engineering samples for testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the working temperature range?
A: Operating temperature ranges from -55°C to +175°C.
