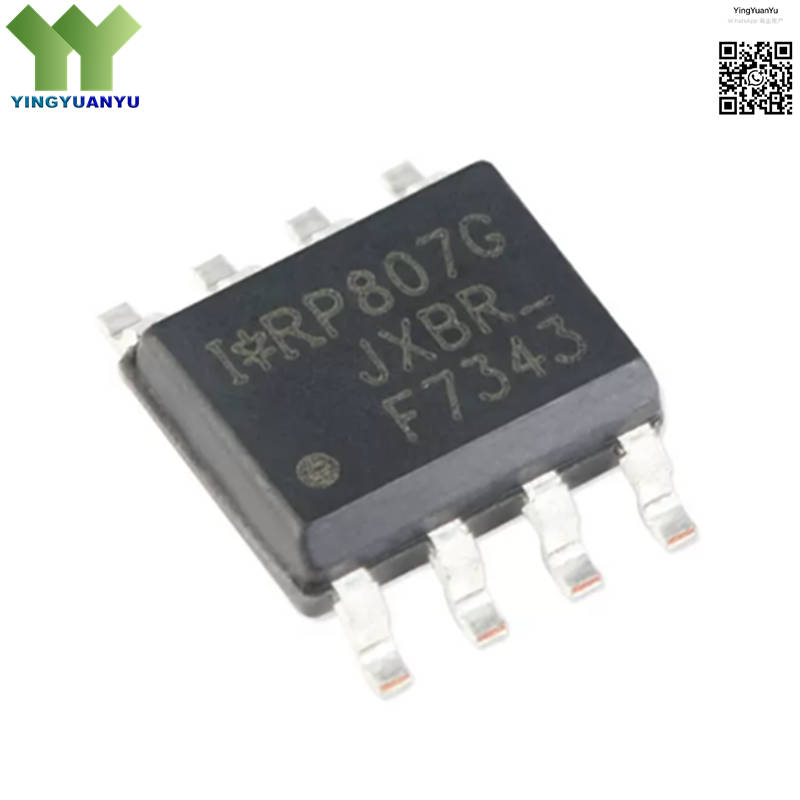

IRF7343TRPBF
IRF7343TRPBF
| Part Number | IRF7343TRPBF |
| Manufacturer | Infineon Technologies |
| Category | MOSFETs – dual N-channel and P-channel power MOSFET |
| Description | Dual N/P-Channel MOSFET Array, 55V,4.7A,50mΩ, SO-8 Surface Mount Package |
Product Overview
IRF7343TRPBF is a high-performance dual N-channel and P-channel power MOSFET array in compact SOIC-8 package. It integrates two MOSFET devices into a single package to save board space, featuring low on-resistance and excellent current handling capability. This component delivers reliable performance for various power control and switching circuits, widely adopted in consumer electronics and industrial power management solutions.
Key Specifications
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Available Upon Request |
| Warranty | 12 Months |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | F7343 |
| Configuration | Dual (N-Channel + P-Channel) |
| Drain-Source Voltage (VDS) | 55V |
| Continuous Drain Current (ID) | 4.7A (N-Channel), 3.4A (P-Channel) |
| On-Resistance (RDS(on)) | 50 mΩ |
| Gate-Source Voltage (VGS) | ±20 V |
| Power Dissipation | 2 W Per Channel |
| Operating Temperature Range | -55°C to +150°C |
Typical Applications
- H-Bridge Motor Drivers
- Bipolar Current Control Circuits
- DC-DC Converters
- Load Switching and Power Management
- Battery Protection Circuits
- Portable Electronic Devices
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
