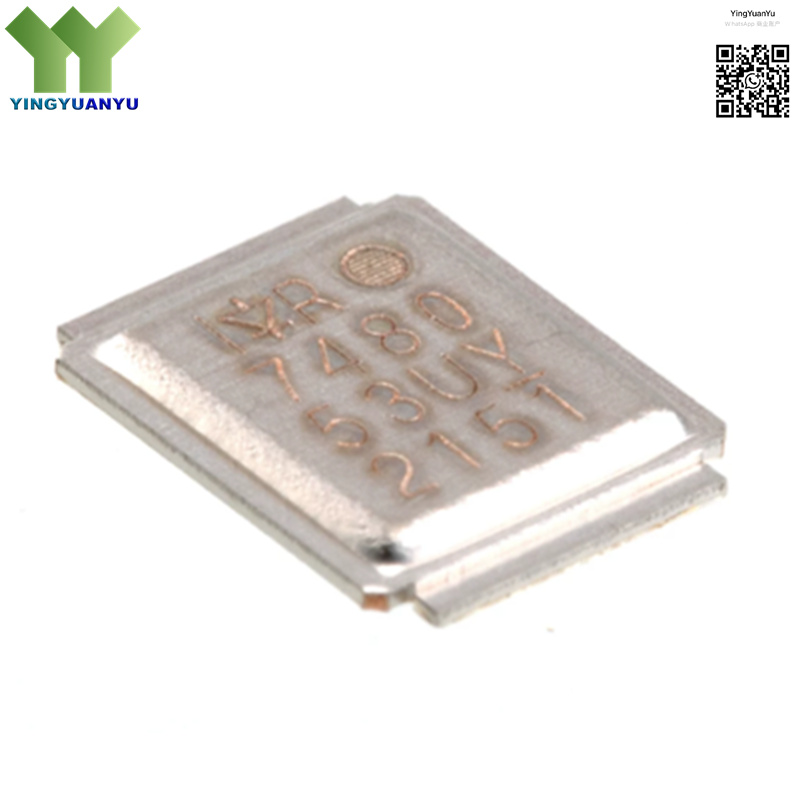

IRF7480MTRPBF
IRF7480MTRPBF
| Part Number | IRF7480MTRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | 40V 217A N-Channel HEXFET Power MOSFET, Low Rds(on), DirectFET Surface Mount Package |
Product Overview
The IRF7480MTRPBF is a high-performance N-channel HEXFET power MOSFET from Infineon Technologies, designed for high-current, low-voltage power switching applications. It features ultra-low on-state resistance, fast switching speed, low gate charge, and excellent thermal performance for high-efficiency power conversion. The device offers robust reliability, compact form factor, and compatibility with automated SMT assembly, making it ideal for space-constrained industrial, consumer, and automotive power systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DirectFET (Surface Mount) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | 7480 |
| Drain-Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Id) | 217 A |
| On-State Resistance (Rds(on)) | 1.2 mΩ (Typical) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High-Current DC-DC Converters
- Switching Power Supplies & Regulators
- Motor Drive & Control Circuits
- Battery Management & Protection Systems
- Load Switches & Power Distribution
- Industrial Power Electronics
- Automotive Auxiliary Systems
- High-Efficiency LED Drivers
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
