IRF8736TRPBF
IRF8736TRPBF
| Part Number | IRF8736TRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 30V, 18A, 4.8 mΩ, Ultra Low Rds(on), SO-8 Surface Mount Package |
Product Overview
The IRF8736TRPBF is a high-performance N-channel power MOSFET developed by Infineon Technologies. It features ultra-low on-resistance, low gate charge and excellent switching characteristics, which effectively reduce power consumption and heat generation. The compact SOIC-8 package saves PCB space and ensures good thermal performance. This reliable component is widely applied in battery management, load switching, reverse polarity protection and low-voltage power control circuits.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOIC-8 |
| Mounting Type | Surface Mount (SMD) |

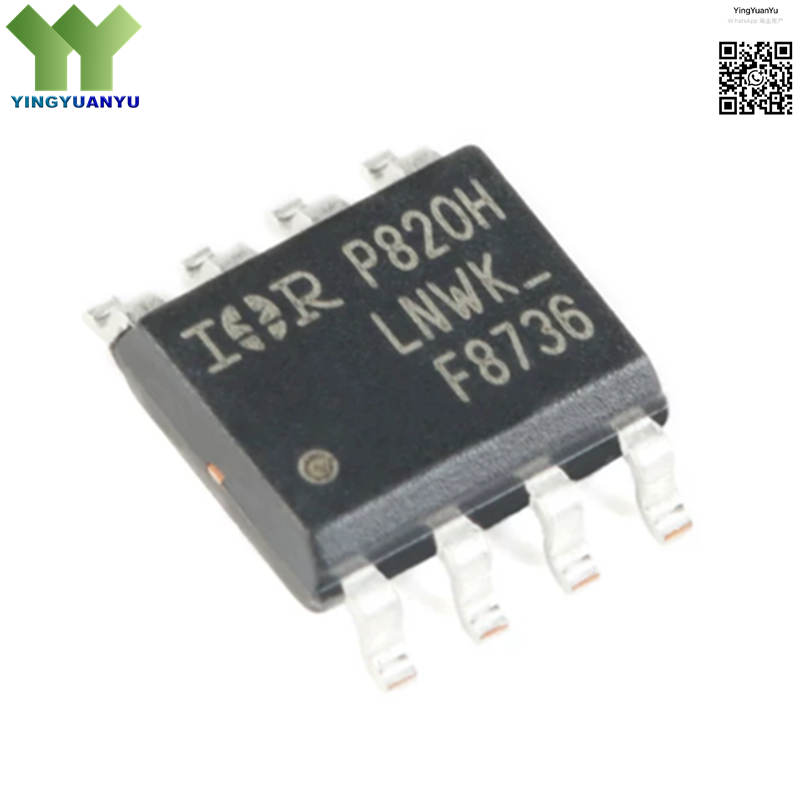

| Surface Marking / Silkscreen | F8736 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Id) | 18 A |
| On-State Resistance (Rds(on)) | 4.8 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Battery Management and Protection Systems
- High Current Load Switching Circuits
- Reverse Polarity Protection Modules
- Low Voltage DC-DC Converters
- Portable Electronic Devices
- Automotive Auxiliary Circuits
- Smart Home and IoT Equipment
- General P-Channel Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
