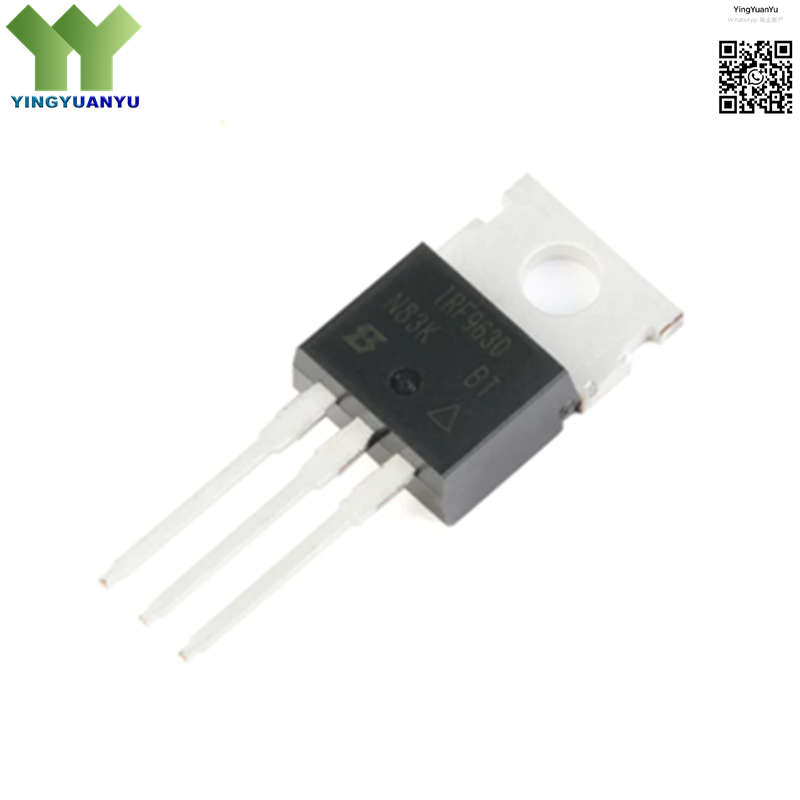

IRF9630PBF
IRF9630PBF
| Part Number | IRF9630PBF |
|---|---|
| Manufacturer | VISHAY |
| Category | MOSFETs; P-Channel Power MOSFET |
| Description | P-Channel Power MOSFET, -200V, -6.5A, 800 mΩ, Low Gate Charge, TO-220AB Through-Hole Package |
Product Overview
The IRF9630PBF is a high-voltage P-channel power MOSFET designed by Infineon Technologies. It features low gate charge, fast switching performance and reliable breakdown voltage, effectively reducing switching loss. The standard TO-220AB package provides excellent heat dissipation for stable long-term operation. This component is widely used in high-voltage switching circuits, power inverters and industrial electronic control systems.
| Key Specifications | |
|---|---|
| Brand | VISHAY |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRF9630 Marking |
| Channel Type | P-Channel |
| Drain-Source Voltage (Vds) | -200 V |
| Continuous Drain Current (Id) | -6.5 A |
| On-State Resistance (Rds(on)) | 800 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High Voltage Power Switching Circuits
- DC-AC Inverter Modules
- Industrial Power Control Units
- Power Supply Conversion Systems
- Lighting Drive Circuits
- Automotive Electronic Systems
- Motor Control Circuits
- General High Voltage P-Channel Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
