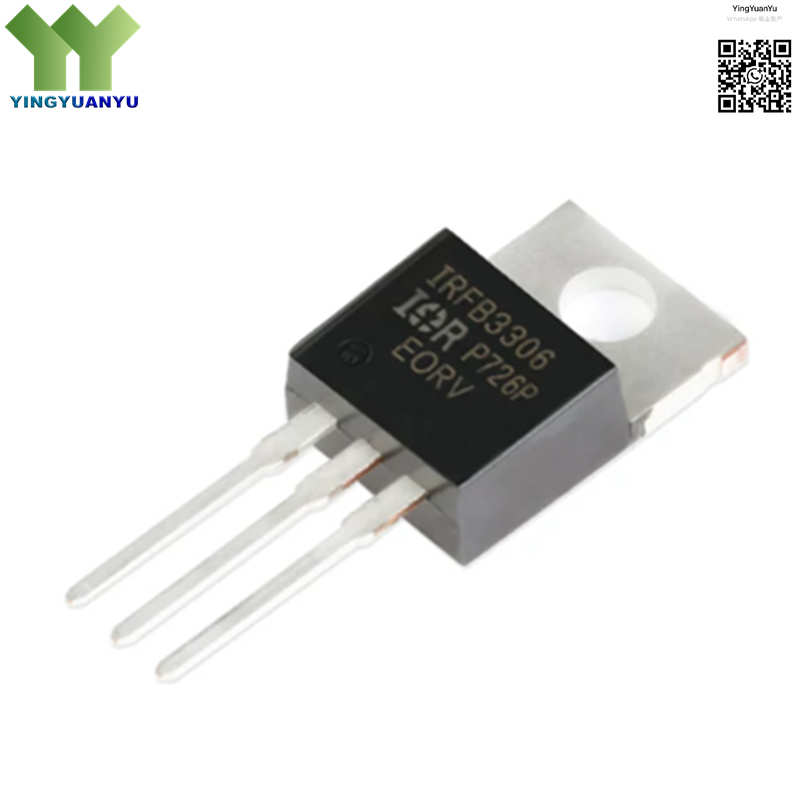

IRFB3306PBF
IRFB3306PBF
| Part Number | IRFB3306PBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-channel enhancement mode power MOSFET, low on-resistance 4.2mΩ,60V,160A, TO-220AB through-hole package |
Product Overview
The IRFB3306PBF is a high-current N-channel power MOSFET manufactured by Infineon Technologies. It features ultra-low drain-source on-resistance, large current handling capability and excellent thermal dissipation performance to minimize conduction loss and heat buildup. Adopting standard TO-220 through-hole packaging, the device allows convenient heat sink installation for high-load working conditions. It is widely utilized in battery inverters, motor drive control, high-current DC-DC converters and various industrial switching power supply systems.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | IRFB3306 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Id) | 160 A |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- High Current DC-DC Converter Equipment
- Brush DC & BLDC Motor Control Modules
- Automotive Power Inverter Circuits
- E-Bike and E-Scooter Controllers
- Offline UPS and Backup Power Supplies
- Battery Pack Charge & Discharge Management
- High Power LED Driver Power Units
- General Low-Voltage Heavy Load Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
- Q: Is IRFB3306PBF RoHS compliant?
A: Yes, this product fully complies with RoHS standards. - Q: What is the channel classification of this MOSFET?
A: It is N-channel enhancement mode power MOSFET. - Q: Can I request engineering samples for circuit testing?
A: Sample service is available, please submit an inquiry form. - Q: What is the operating supply voltage of IRFB3306PBF?
A: Its working supply voltage ranges from 60V.
