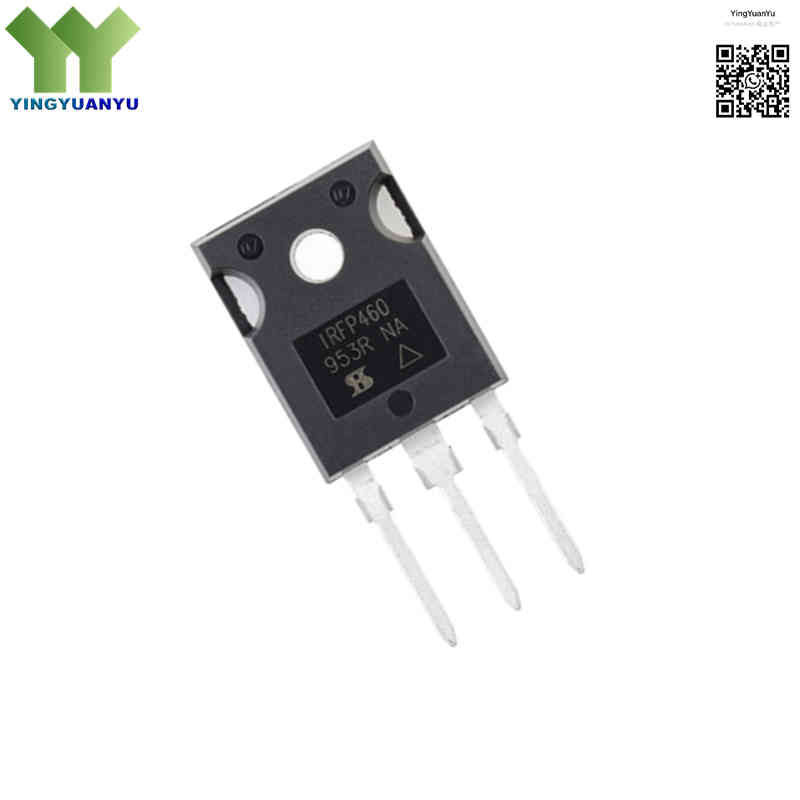

IRFP460PBF
IRFP460PBF
| Part Number | IRFP460PBF |
|---|---|
| Manufacturer | Vishay Siliconix (Originally International Rectifier) |
| Category | Discrete Semiconductor Products > Transistors – FETs, MOSFETs – Single |
| Description | Third-generation high-voltage N-Channel Power MOSFET with 500V breakdown voltage, 20A continuous drain current and standard switching speed, TO-247AC package for industrial power conversion circuits. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IRFP460PBF is a widely used N-Channel enhancement-mode power MOSFET from Vishay Siliconix. Optimized cell structure delivers stable switching performance, reliable heat dissipation and low application cost. Rated 500V drain-source voltage and 20A continuous drain current, it withstands heavy electrical stress for industrial power equipment. Optimized gate oxide simplifies gate drive circuit design, and high repetitive avalanche energy provides surge protection against inductive voltage spikes. The TO-247AC through-hole package features low thermal resistance, ideal for SMPS, UPS, industrial converters and motor drive systems.
Core Advantages
Industry-Standard Rugged Design
Stable monolithic chip structure ensures long service life and consistent performance under harsh working conditions, reducing equipment failure rates.
Superb Avalanche Stress Safety Factors
100% factory tested for single and repetitive avalanche energy tolerance, automatically releasing energy generated by inductive voltage kickbacks.
Optimized High-Voltage Performance Matrix
500V rated breakdown voltage matches mainstream 220V/380V AC-DC conversion topologies, with sufficient current margin for heavy load operation.
Low Thermal Resistance Package
TO-247AC through-hole housing enables efficient heat transfer to external heat sinks, maintaining stable temperature under long-term high-current operation.
Key Specifications
| Brand | Vishay / Siliconix |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free (PBF) Standard Matte Tin Pin Finishing |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | TO-247AC |
| Pin Count | 3 Pins |
| Mounting Type | Through-Hole Technology (THT) |
| Surface Marking / Silkscreen | IRFP460 Marking |
| FET Type Profile | N-Channel MOSFET (Enhancement Mode) |
| Drain-to-Source Voltage (V_DS) | 500 V Maximum Breakdown Limit |
| Continuous Drain Current (I_D) | 20 A at T_C = 25°C / 12 A at T_C = 100°C |
| Repetitive Peak Drain Current (I_DM) | 80 A (10μs pulse limit) |
| Max Drain-Source On-Resistance (R_DS(on)) | 0.27 Ω Maximum at V_GS = 10V, I_D=12A |
| Gate-to-Source Threshold Voltage (V_GS(th)) | 2.0 V to 4.0 V Turn-On Threshold Voltage Envelope |
| Total Gate Charge (Q_g) | 210 nC Maximum at V_GS = 10V, V_DS = 400V |
| Gate Charge Split | Q_gs=63nC, Q_gd=92nC |
| Capacitance Spec (@V_DS=25V,1MHz) | C_iss=4200pF, C_oss=650pF, C_rss=420pF |
| Single Pulse Avalanche Energy (E_AS) | 840 mJ Max |
| Maximum Power Dissipation (P_D) | 280 W at T_C = 25°C with proper heatsinking infrastructure |
| Thermal Resistance (R_θJC) | 0.44 ℃/W Max (Junction to Case) |
| Thermal Resistance (R_θJA) | 62 ℃/W Max (Junction to Ambient) |
| Operating Junction Temperature Range | -55°C to +150°C Industrial Power Semiconductor Specification Window |
Typical Applications
- High-Frequency Switch-Mode Power Supplies (SMPS) and Industrial Battery Charger Systems
- Uninterruptible Power Supplies (UPS) Inverter Stages and Centralized Solar Inverter Bridges
- Active Power Factor Correction (PFC) Boost Circuits and High-Power DC-to-DC Converter Blocks
- Industrial Arc Welding Machines, Induction Heating Stages, and Electroplating Power Controllers
- AC Variable Frequency Drives (VFD), DC Motor Speed Controllers, and High-Power Relay Actuators
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the IRFP460PBF power transistor 100% genuine and original?
A: Yes, all IRFP460PBF in stock are brand-new original Vishay Siliconix components. All batches are stored under ESD anti-static protection and packed in factory tubes or original cartons.
Q2: What is the main structural or electrical performance distinction between the IRFP460PBF and the IRFP460LCPBF?
A: Both share identical 500V/20A ratings and TO-247AC package. The “LC” suffix of IRFP460LCPBF stands for Low Charge; it features lower total gate charge for faster switching and reduced gate drive loss, while standard IRFP460PBF has higher Qg for cost-sensitive common power circuits.
Q3: What exact manufacturing specification does the “PBF” suffix verify on this component label?
A: PBF means Pb-Free. Component pins adopt matte tin plating, fully compliant with global RoHS standards for all mainstream electronic assembly lines.
Q4: How can our engineering division obtain thermal simulation models, application design guides, or high-volume wholesale pricing schedules?
A: Fill out the Quick Inquiry form with your project parameters. Our technical team will send complete technical documents and bulk quotations within 24 hours.
