IRFR220NTRPBF
IRFR220NTRPBF
| Part Number | IRFR220NTRPBF |
|---|---|
| Manufacturer | Infineon Technologies (Originally International Rectifier) |
| Category | Discrete Semiconductor Products > Transistors – FETs, MOSFETs – Single |
| Description | Advanced N-Channel power MOSFET featuring a 200V breakdown voltage, 5.0A continuous drain current, and low on-resistance, housed in TO-252-3 surface-mount package optimized for fast switching in compact power supplies. |
| Stock Status | In Stock |
| Origin | Original Factory Authentic Stock |
Product Overview
The IRFR220NTRPBF is a high-performance N-channel enhancement-mode power MOSFET from Infineon, built on advanced silicon process for high-frequency compact power circuits. It offers a 200V drain-source voltage rating and 5.0A continuous drain current, balancing fast switching speed and low Rds(on) to cut conduction and switching losses. Equipped with built-in gate ESD protection and fast recovery body diode, this device delivers reliable single-pulse avalanche ruggedness to absorb inductive voltage transients. The TR suffix denotes tape-and-reel packaging for automated assembly, while the compact TO-252-3 SMT package fits high-density PCB layouts. It is ideal for miniaturized SMPS, lighting ballasts, compact DC-DC converters and small motor drive circuits.
Core Advantages
Ultra-Compact SMT Footprint (D-Pak)
Housed in a space-saving TO-252 package with low profile, balancing decent thermal performance to support high-density automated PCB layouts.
Optimized Fast Switching Dynamics
Low total gate charge (Qg) and small intrinsic capacitances enable rapid switching and support higher operating frequency designs.
Exceptional Avalanche Ruggedness
Fully tested and rated for single-pulse avalanche energy absorption (Eas), protecting surrounding control ICs from damage caused by unexpected voltage surges.
Tape and Reel Optimization (TR)
Supplied on industry-standard tape & reel carrier, perfectly compatible with high-speed automatic pick-and-place production equipment for mass manufacturing.
Key Specifications
| Brand | Infineon Technologies / International Rectifier |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free (PBF) Matte Tin Plated Leads |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | TO-252-3 |
| Mounting Type | Surface Mount Technology (SMD/SMT) |

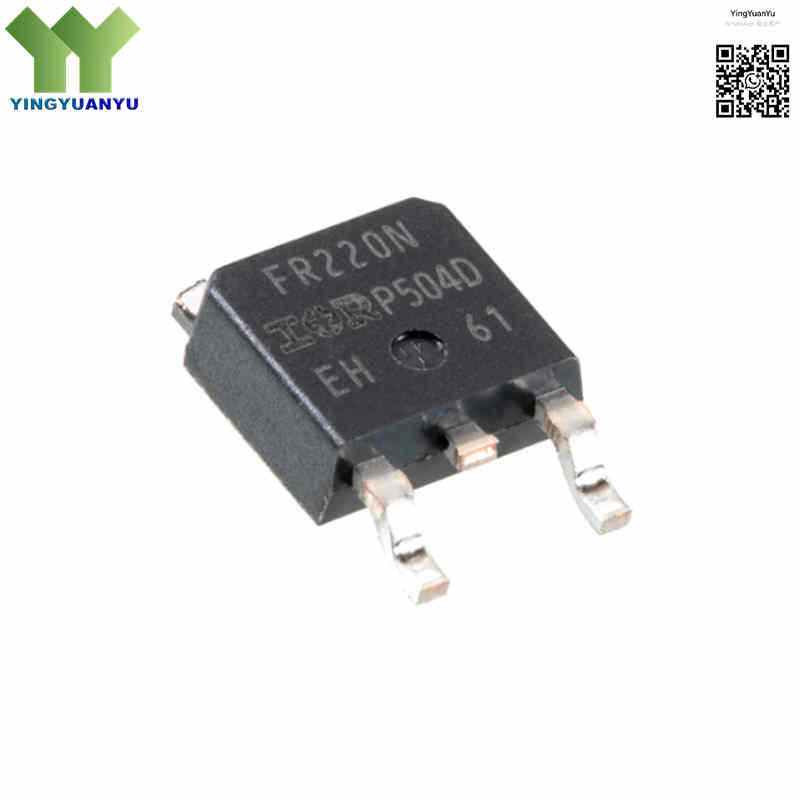

| Surface Marking / Silkscreen | FR220N Marking |
| FET Configuration Type | N-Channel MOSFET (Enhancement Mode) |
| Drain-to-Source Voltage (VDS) | 200 V Absolute Maximum Rating |
| Continuous Drain Current (ID) | 5.0 A @ TC = 25°C / 3.5 A @ TC = 100°C |
| Pulsed Drain Current (IDM) | 20 A Peak Pulse Drain Current |
| Max Drain-Source On-Resistance (RDS(on)) | 0.60 Ω Max @ VGS = 10V |
| Gate-to-Source Voltage (VGS) | ±20 V Absolute Maximum Gate Voltage |
| Gate-to-Source Threshold Voltage (VGS(th)) | 2.0 V to 4.0 V Typical Turn-On Threshold Range |
| Total Gate Charge (Qg) | 15 nC Typical (VGS = 10V, VDS = 160V) |
| Input Capacitance (Ciss) | 360 pF Typical @ VDS = 25V |
| Output Capacitance (Coss) | 65 pF Typical @ VDS = 25V |
| Reverse Transfer Capacitance (Crss) | 12 pF Typical @ VDS = 25V |
| Reverse Recovery Charge (Qrr) | 14 nC Typical Body Diode Recovery Charge |
| Reverse Recovery Time (trr) | 22 ns Typical Body Diode Recovery Time |
| Maximum Power Dissipation (PD) | 43 W @ TC = 25°C with sufficient PCB copper thermal pad design |
| Power Derating Factor | 0.57 W/°C Linear Thermal Derating Slope |
| Junction-to-Case Thermal Resistance (RθJC) | 3.1 °C/W |
| Junction-to-Ambient Thermal Resistance (RθJA) | 62 °C/W |
| Operating Junction Temperature Range | -55°C to +175°C Wide stable operating temperature window |
| Storage Temperature Range (TSTG) | -65°C ~ +175°C |
Typical Applications
- High-Efficiency Compact Switch-Mode Power Supplies (SMPS) and wall adapters
- High-Frequency DC-to-DC Converter Modules and distributed power systems
- Electronic lighting ballasts, solid-state relays and constant-current LED driver stages
- Low-power small UPS equipment and miniature solar micro-inverters
- BLDC motor drivers, solenoid control switches and industrial signal telemetry circuits
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit an inquiry to get official datasheets, engineering samples, stock availability and bulk discount quotations. All messages will be replied within 24 hours.
Frequently Asked Questions
Q1: Is your IRFR220NTRPBF stock 100% genuine factory original?
A: Yes, all IRFR220NTRPBF components in our warehouse are brand-new original parts manufactured by Infineon. Every batch is stored and shipped with standard ESD anti-static packaging under temperature-controlled warehouse conditions.
Q2: What do “TR” and “PBF” stand for in the part number?
A: “TR” means tape-and-reel packaging for automated SMT placement machines. “PBF” marks lead-free construction, fully compliant with global RoHS environmental regulations.
Q3: What PCB thermal design requirements apply to the TO-252 package?
A: The drain tab of D-Pak acts as the main heat dissipation surface, relying on PCB copper planes for cooling. For full-load continuous operation, design large copper pads and thermal vias to spread heat effectively.
Q4: How can our engineering team get STEP 3D models, SPICE simulation data or customized bulk pricing?
A: Fill out the inquiry form on this page with your project specifications. Our technical sales team will send all available CAD and simulation documents together with tailored volume pricing within 24 hours.
