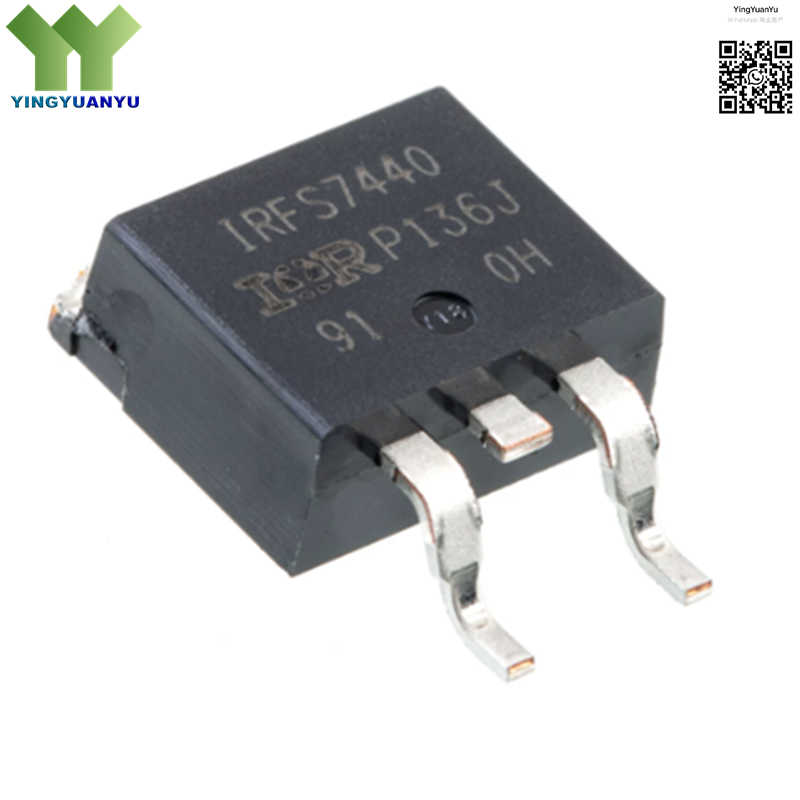

IRFS7440TRLPBF
IRFS7440TRLPBF
| Part Number | IRFS7440TRLPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 40V, 208A, 2 mΩ, Ultra Low Rds(on), DPAK Surface Mount Package |
Product Overview
The IRFS7440TRLPBF is a high-current N-channel power MOSFET developed by Infineon Technologies. It features ultra-low on-resistance, low gate charge and excellent switching performance, which minimizes power loss and heat generation. The DPAK package provides reliable thermal dissipation and compact size for dense PCB layout. This robust component is widely used in low-voltage high-current power conversion, motor drive and various power switching circuits.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DPAK |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | IRFS7440 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Id) | 208 A |
| On-State Resistance (Rds(on)) | 2 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Low Voltage High Current DC-DC Converters
- High Power Motor Drive Systems
- Battery Management and Protection Circuits
- Automotive Electronic Control Units
- High Power LED Driver Modules
- Industrial Power Switching Equipment
- Portable Power Supply Units
- General High Current Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
