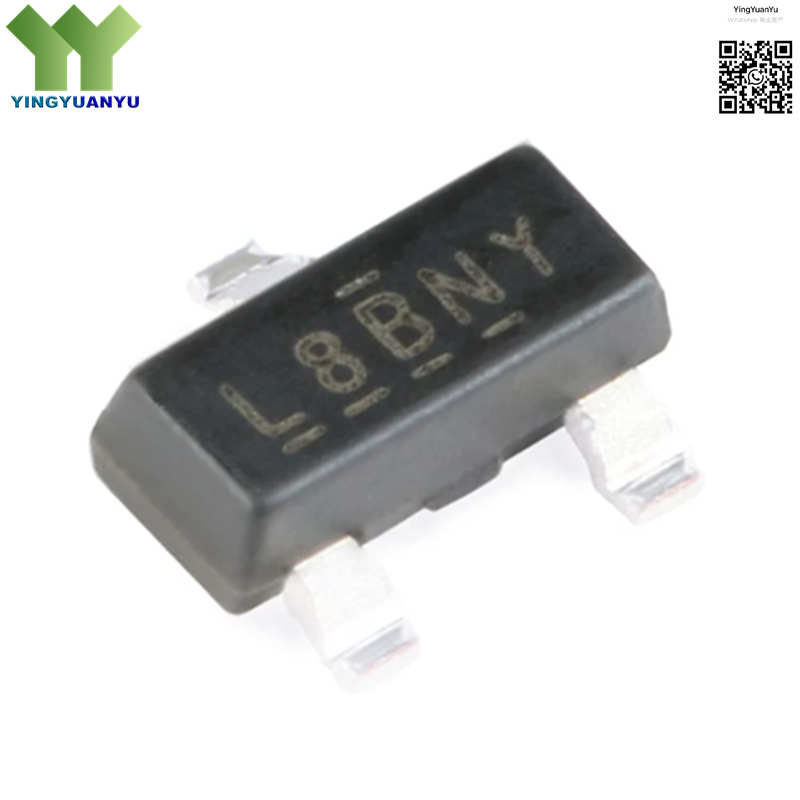

IRLML0060TRPBF
IRLML0060TRPBF
| Part Number | IRLML0060TRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 60V, 2.7A, 92 mΩ, Low Rds(on), SOT-23 Surface Mount Package |
Product Overview
The IRLML0060TRPBF is a compact N-channel power MOSFET manufactured by Infineon Technologies. It features low on-resistance, low gate charge and fast switching speed, delivering excellent performance for low power circuits. The ultra-small SOT-23 package saves PCB space and suits high-density layout. This cost-effective component is widely used for signal switching, load driving and small power conversion in portable and consumer electronics.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SOT-23 |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | L**** Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Id) | 2.7 A |
| On-State Resistance (Rds(on)) | 92 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Small Signal Power Switching
- Low Current DC-DC Converters
- Battery Powered Portable Devices
- LED Lighting Driver Circuits
- IoT and Smart Home Modules
- Instrument Control Circuits
- Load Switching Circuits
- General Miniature Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
