IRLR120NTRPBF
IRLR120NTRPBF
| Part Number | IRLR120NTRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 100V, 33A, 185 mΩ, Low Rds(on), TO-252AA(DPAK) Surface Mount Package |
Product Overview
The IRLR120NTRPBF is a reliable N-channel power MOSFET designed by Infineon Technologies. It features low on-resistance, low gate charge and fast switching performance, which effectively reduces power loss and heat generation. The DPAK package provides excellent thermal dissipation and compact size, making this device suitable for medium voltage power conversion, motor drive and general switching applications in industrial, automotive and consumer electronics.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252AA(DPAK) |
| Mounting Type | Surface Mount (SMD) |

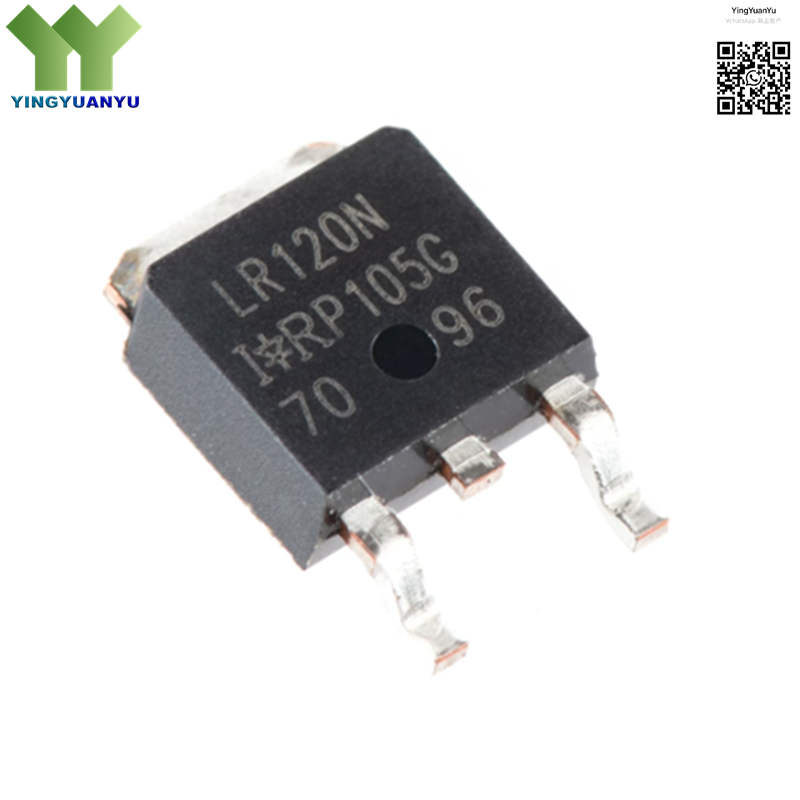

| Surface Marking / Silkscreen | LR120N Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Id) | 10 A |
| On-State Resistance (Rds(on)) | 185 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Medium Voltage DC-DC Converters
- Motor Drive and Control Circuits
- Battery Management Systems
- Industrial Power Switching Modules
- Automotive Electronic Systems
- Power Supplies and Inverters
- Lighting Control Circuits
- General Purpose Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
