IRLR3103TRPBF
IRLR3103TRPBF
| Part Number | IRLR3103TRPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Power MOSFET, 30V, 55A, 19 mΩ,Low Rds(on), TO-252-2 DPAK Surface Mount Package |
Product Overview
The IRLR3103TRPBF is a high-current N-channel power MOSFET manufactured by Infineon Technologies. It features extremely low on-resistance, low gate charge and fast switching performance, which greatly reduces conduction loss and heat generation. The TO-252-2 DPAK package offers excellent thermal dissipation and compact structure, adapting to high-density PCB layout. This reliable device is widely used in low-voltage high-current power conversion, motor drive and load switching applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252-2 DPAK |
| Mounting Type | Surface Mount (SMD) |

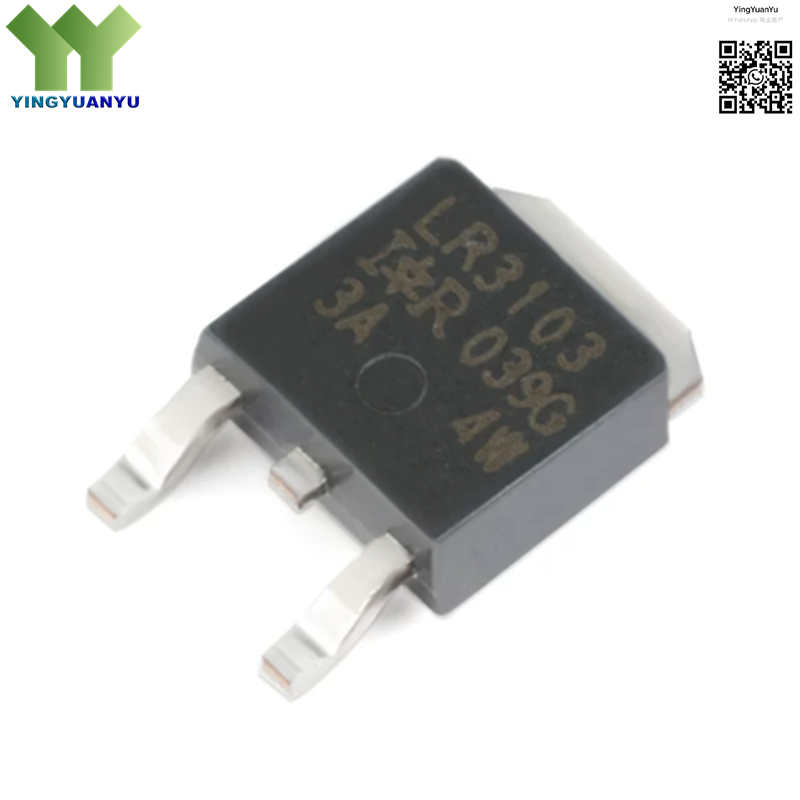

| Surface Marking / Silkscreen | LR3103 Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Id) | 55 A |
| On-State Resistance (Rds(on)) | 19 mΩ (Max) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- Low Voltage High Current DC-DC Converters
- DC Motor Drive and Control Systems
- Battery Management and Protection Circuits
- Power Supply and Inverter Modules
- Automotive Electronic Control Units
- LED High Power Driver Circuits
- Industrial Power Switching Equipment
- General High Current Power Switching
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
