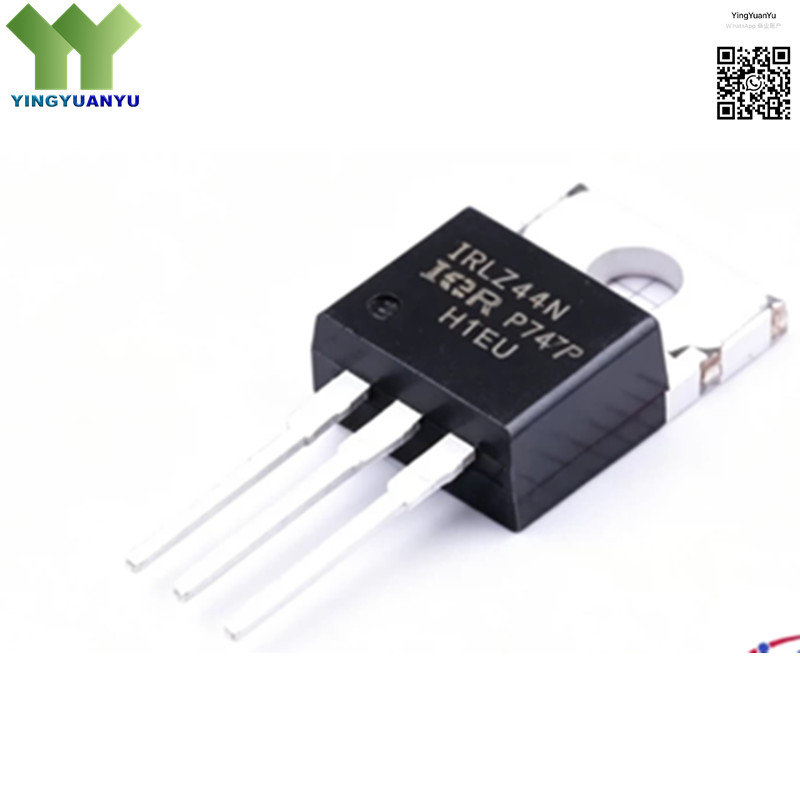

IRLZ44NPBF
IRLZ44NPBF
| Part Number | IRLZ44NPBF |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | MOSFETs; N-Channel Power MOSFET |
| Description | N-Channel Logic Level MOSFET, 55V 47A, Low On-Resistance, TO-220AB Package |
Product Overview
The IRLZ44NPBF is a robust N-channel logic level power MOSFET designed for high-efficiency power switching applications. It features a low gate drive voltage requirement (compatible with 3.3V and 5V logic), ultra-low on-resistance, high current capability, and fast switching speed. This device delivers excellent thermal performance, low power dissipation, and reliable operation for industrial, consumer, and automotive power systems. Housed in a compact TO-220AB surface-mount package, it provides space-saving integration and superior power handling for modern power electronic designs.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220AB |
| Mounting Type | Surface Mount (SMD) |
| VDS (Drain-Source Voltage) | 55 V |
| ID (Continuous Drain Current) | 47 A |
| RDS(on) | 0.028 Ω @ VGS=10V |
| Gate Drive Voltage | Logic Level (3.3V/5V Compatible) |
| Operating Temperature | -55°C to +175°C |
Typical Applications
- DC-DC Converters & Switch-Mode Power Supplies
- Motor Control & Driver Circuits
- Battery Management & Charging Systems
- Power Inverters & Industrial Power Modules
- Consumer Electronics & Appliances
- Automotive Power Control Systems
- Low-Voltage Power Switching Applications
- PWM Control & High-Efficiency Load Drivers
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
