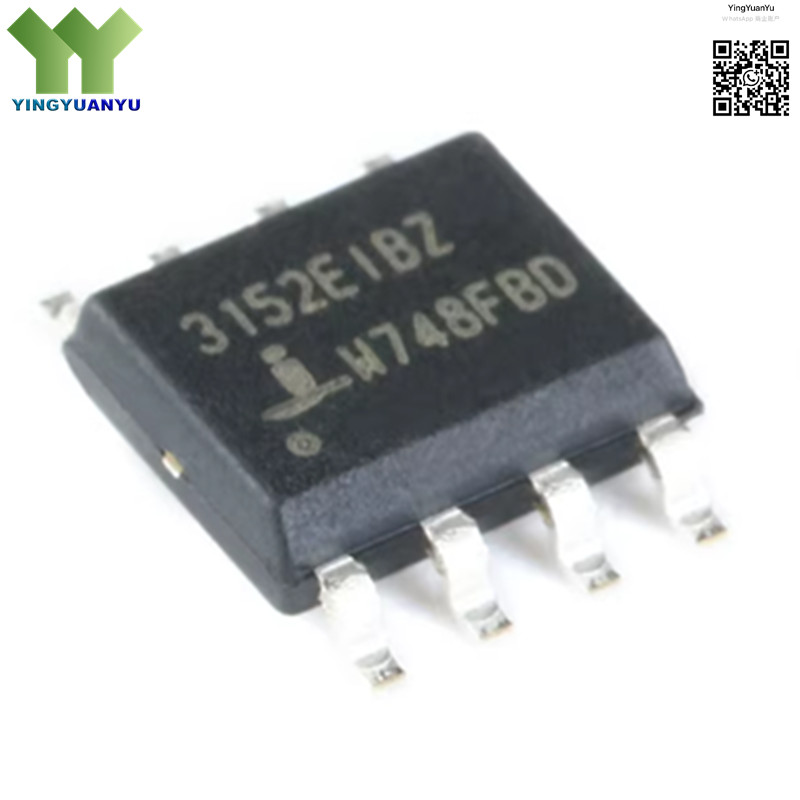

ISL3152EIBZ-T
ISL3152EIBZ-T
| Part Number | ISL3152EIBZ-T |
|---|---|
| Manufacturer | Renesas Electronics (Intersil) |
| Category | Interface ICs; RS-485/RS-422 Transceivers |
| Description | 3.3V Half-Duplex RS-485/RS-422 Transceiver, 10Mbps, ESD Protection, SOIC-8 Package |
Product Overview
The ISL3152EIBZ-T is a high-speed, low-power half-duplex RS-485/RS-422 transceiver optimized for 3.3V industrial and embedded communication systems. It supports data rates up to 10Mbps, features robust ESD protection for bus pins, and includes thermal shutdown, short-circuit protection, and current limiting for reliable operation in harsh environments. The device offers low quiescent current, wide common-mode voltage range, and excellent noise immunity for long-distance industrial communication. Designed for compact designs, it delivers stable differential signaling for industrial networks, IoT gateways, and field communication systems. Housed in a tiny SOIC-8 surface-mount package, it enables space-constrained PCB integration.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Renesas / Intersil |
| Protocol | RS-485 / RS-422 Half-Duplex |
| Data Rate | Up to 10Mbps |
| Supply Voltage | 3.3V Single Supply |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Industrial RS-485 Communication Networks
- IoT Gateways & Fieldbus Modules
- Factory Automation & Control Systems
- Long-Distance Serial Communication
- Embedded System Industrial Interfaces
- Smart Metering & Sensor Networks
- 3.3V Low-Power Communication Links
- Industrial PLC & I/O Modules
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
