JMS578-QGBAOA
JMS578-QGBA0A
| Part Number | JMS578-QGBA0A |
|---|---|
| Manufacturer | JMicron Technology Corp. |
| Category | Integrated Circuits (ICs) > Interface – Controllers (Bridge / Protocol Translators) |
| Description | SuperSpeed USB 3.0 to SATA 6Gb/s Bridge Controller, UASP and TRIM Support, Integrated LDO, Low-Power 48-Pin QFN Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
JMS578-QGBA0A is a single-chip USB3.0 to SATA 6Gbps bridge controller from JMicron. It supports UASP and TRIM to boost storage performance, integrates built-in LDO power circuits, and adopts compact 48-pin QFN package for portable external storage devices.
Core Advantages
UASP Acceleration
Hardware UASP queuing speeds up read-write tasks and lowers host CPU load.
TRIM & SMART Support
Transmit TRIM commands to SSDs to maintain performance and extend service life.
Integrated Power Design
Onboard LDO regulators reduce peripheral components and save power.
Customizable Firmware
Adjust VID, PID, sleep timing and LED modes via external EEPROM.
Key Specifications
| Brand | JMicron Storage Bridge Controller Series |
|---|---|
| RoHS Status | RoHS Compliant / Green/Halogen-Free Package Design |
| EDA/CAD Model | Pin mapping libraries, recommended PCB land footprints, and thermal via layouts available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 48-Pin QFN (4 mm × 4 mm) |
| Mounting Type | Surface Mount |

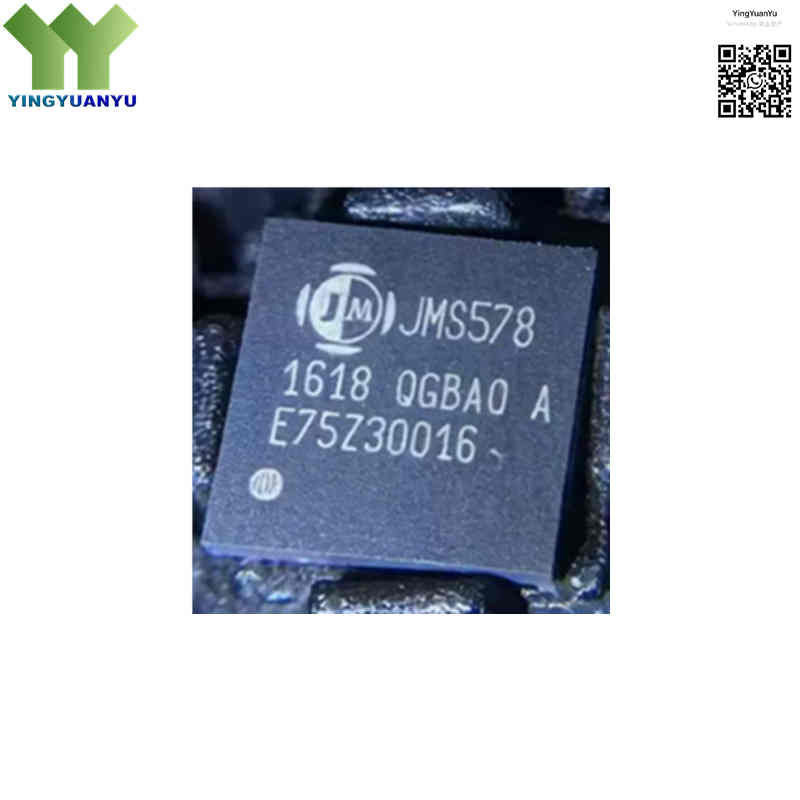

| Surface Marking / Silkscreen | JMS578 QGBA0A Marking |
| Upstream Host Interface | USB 3.0 SuperSpeed (5 Gbps) / USB 2.0 High-Speed compatible |
| Downstream Device Interface | SATA Gen3 (SATA III 6Gbps) / Backward compatible with SATA II and SATA I |
| Power Delivery Support | Integrated 5V to 3.3V and 5V to 1.2V LDO Regulators |
| Command Support | ATA/ATAPI LBA48, TRIM, S.M.A.R.T, and SCSI Translation (SAT) |
| Reference Crystal Clock | 25 MHz ±30 ppm standard external crystal resonator |
| Operating Voltage | 5.0V Nominal VBUS Input Supply |
| Interface Logic Level | 3.3V Digital General-Purpose I/O Compatibility |
| Operating Temperature Range | 0°C to +70°C Commercial Grade Operating Specification |
| Storage Capacity Support | Supports HDD/SSD up to 18TB |
| Idle Power Consumption | Typical 12mA under 5V supply |
| Suspend Power Consumption | Max 1.2mA sleep current |
| Storage Temperature | -40°C ~ +125°C |
| Firmware Customization | Custom VID, PID, LED and sleep timing available |
| External Memory | Support 24C02 SPI EEPROM for custom config |
Typical Applications
- USB 3.0 External 2.5-inch and 3.5-inch Hard Disk Drive (HDD) Enclosures
- High-Speed Portable Solid-State Drive (SSD) Enclosures and SATA-to-USB Cables
- External Optical Disk Drives (ODD) such as Blu-ray and DVD-RW USB Readers
- Embedded Media Player Storage, Smart TV Video Recording Modules, and NAS Storage Expansions
- Industrial Data Acquisition Backups, System Recovery Dongles, and Bare-Drive Docking Stations
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does QGBA0A suffix stand for?
A: QG means halogen-free QFN package, BA is chip revision, 0A stands for fixed firmware and sorting standard.
Q2: What’s the advantage of UASP protocol?
A: UASP supports command queueing, faster read & write speed and lower CPU usage than traditional BOT protocol.
Q3: Does JMS578 work without external SPI flash?
A: It runs alone with built-in ROM. SPI flash is only needed for customized VID, PID and LED settings.
Q4: Can this chip auto spin down idle hard drives?
A: Yes, programmable auto sleep timer turns off HDD and enters low power mode after idle time.
Q5: What’s the max capacity of hard drives it supports?
A: It is compatible with HDD and SSD up to 18TB.
Q6: Is this IC suitable for bus-powered portable drives?
A: Yes, integrated LDO power regulators fit 5V bus-powered external storage enclosures.
Q7: What temperature range can this chip work in?
A: Operating temperature: 0°C to +70°C; storage temperature: -40°C ~ +125°C.
Q8: Does it support SSD TRIM function?
A: Yes, native TRIM pass-through keeps SSD performance and extends drive lifespan.
